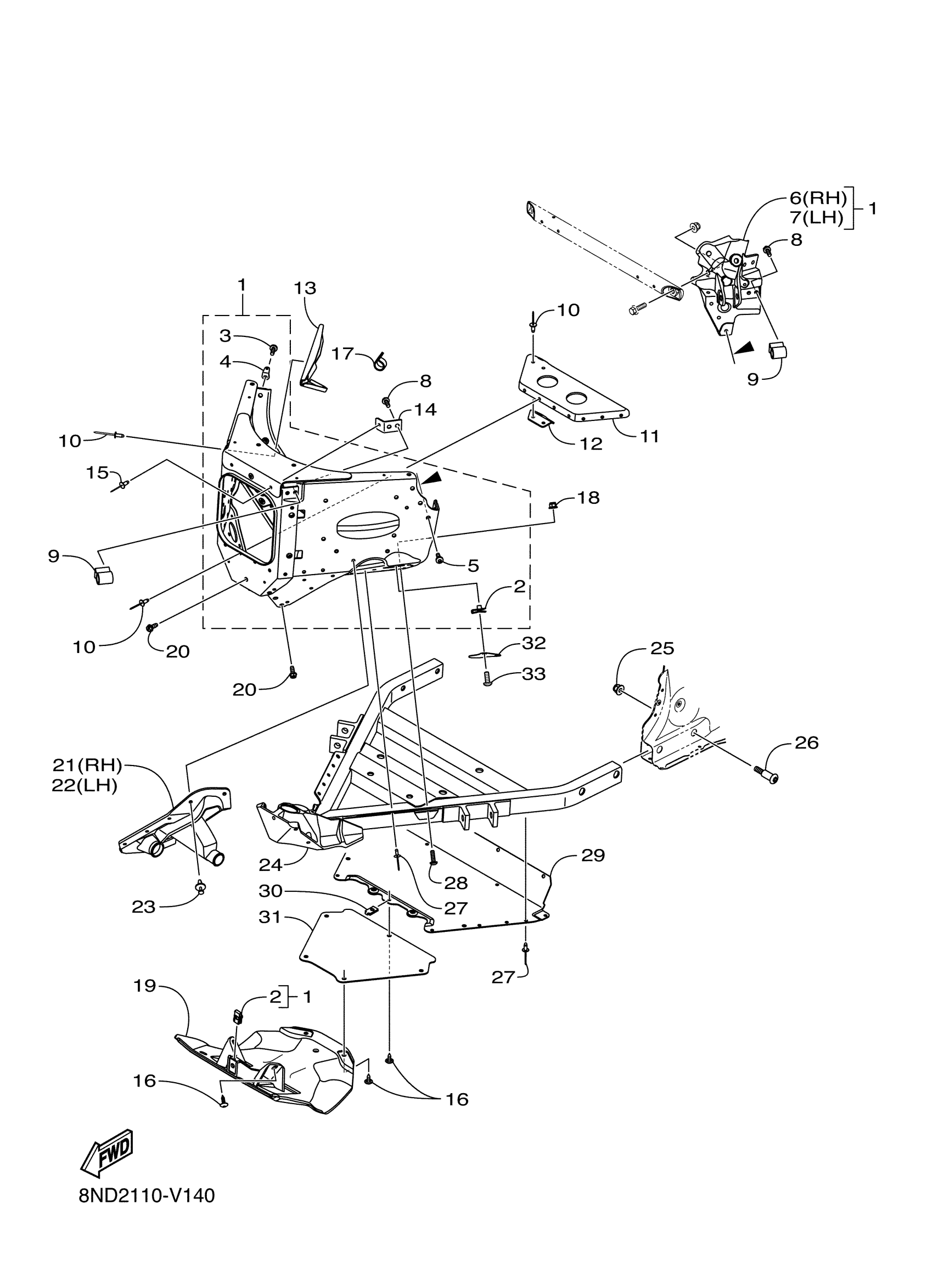

Yamaha TR8NTSSB (TRANSPORTER 800) 8NV9 2025 FRAME 1 Diagram
#
1
BULKHEAD
8ND-F191A-00-00
Unavailable
2
NUT, CLIP M6
8JP-RA354-00-00
$0.96
3
. SCREW, TAPPING
8JP-RA281-00-00
Unavailable
4
BRACKET
8ML-E4744-00-00
Unavailable
5
SCREW, M6X1X16
8JP-RA271-00-00
$0.96
6
HOLDER, ABSORBER 2
8JP-F377J-10-00
Unavailable
7
HOLDER, ABSORBER
8JP-F376J-10-00
$136.99
8
BOLT, FLG. M6X1.0X
8JP-RA180-00-00
Unavailable
9
BRACKET, UPPER
8JP-F2219-00-00
Unavailable
10
RIVET, 11
8JP-RA520-00-00
$0.70
11
REINF.,FRAME FR. 3
8ND-F1922-00-00
$40.99
12
BRACKET, STEERING
8ND-F1947-00-00
$5.49
13
BRACKET, STOPPER S
8ND-F131G-00-00
$23.99
14
GUSSET
8JP-F1138-00-00
Unavailable
15
RIVET, 3/16
8JP-RA527-00-00
$2.22
16
SCREW, 10-12X3/4
8KC-RA290-00-00
Unavailable
17
CLAMP, 8
8ND-RAB10-00-00
Unavailable
18
NUT,FLG. M6-1.0
8JM-RA322-00-00
Unavailable
19
COVER, FRONT
8ND-F2865-00-00
Unavailable
20
SCREW, TAPPING
8JP-RA201-00-00
Unavailable
21
COVER 3
8JP-F198J-00-00
Unavailable
22
COVER 1
8JP-F198F-00-00
Unavailable
23
RIVET, 2
8JP-RA511-00-00
Unavailable
24
FRAME UNDER 1
8KC-F196A-10-00
Unavailable
25
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
26
SCREW, M8X1.25X44.
8JP-RA275-10-00
Unavailable
27
RIVET, 9
8JP-RA518-00-00
Unavailable
28
SCREW, M6X1.0X20
8JP-RA258-00-00
Unavailable
29
FRAME, UNDER 2
8NV-F196E-00-00
Unavailable
30
NUT, CLIP
8JP-RA349-00-00
Unavailable
31
PANEL, UNDER
8JP-F114G-00-00
Unavailable
32
BRACKET 1
8KG-F194X-00-00
Unavailable
33
SCREW, 1
8KG-RA235-00-00
Unavailable
