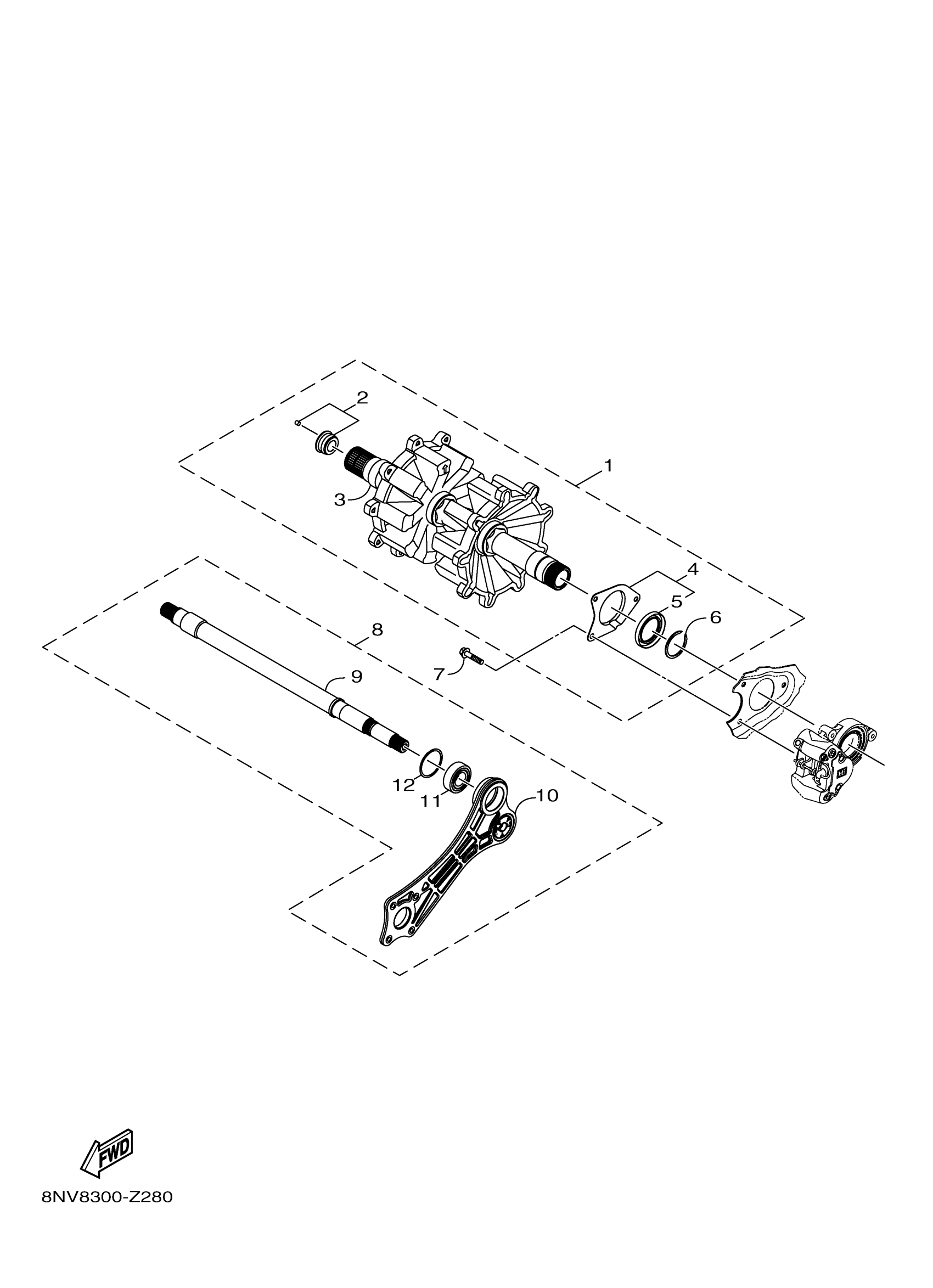

Yamaha TR8NTSRB (TRANSPORTER 800) 8NV7 2024 TRACK DRIVE 1 Diagram

#

Description
Price

1

FRONT AXLE SUB-ASS

8ND-G7501-00-00

$371.93

2

SENSOR, SPEED

8ND-H3755-00-00

Unavailable

3

AXLE, FRONT

8JP-G7511-10-00

$239.66

4

CALIPER SEAL KIT

8JP-F5803-01-00

$15.13

5

SEAL, OIL 45X65X8

8JP-RAE02-10-00

$4.04

6

CIRCLIP, FS-0175

8JP-RAH07-00-00

$2.34

7

BOLT, FLG. M8X1.25

8JP-RA189-00-00

Unavailable

8

SECONDARY SHAFT COMP.

8NV-E7680-00-00

Unavailable

9

SHAFT, SECONDARY

8ND-E7681-00-00

Unavailable

10

HOUSING, BEARING

8NV-G7631-00-00

$222.29

11

BEARING

8ND-RAG07-00-00

$28.32

12

CIRCLIP, 1

8ND-RAH03-00-00

$4.28
