Description

Price

1

HANDLEBAR

8JR-F6111-20-00

Unavailable

2

GRIP

8JR-F6241-00-00

$18.99

3

NUT

8JR-F3856-10-00

Unavailable

4

LEVER HOLDER ASSY

8ND-H2720-10-00

$303.99

5

LEVER HOLDER ASSY

8ND-H2720-10-00

$303.99

6

CLIP, 1

8JP-RAC10-10-00

Unavailable

7

NUT, 0.125

8JP-RA346-00-00

$1.64

8

GRIP,WARMER

8MY-F626A-10-00

$25.99

9

GRIP,WARMER

8MY-F626A-00-00

$32.99

10

LEVER HOLDER ASSY

8MY-H2710-00-00

$9.49

11

STOP SWITCH

8ND-H6284-00-00

$66.99

12

CLAMP

8MY-H2544-00-00

$5.60

13

SCREW

8MY-RA200-00-00

$0.64

14

CABLE, THROTTLE 1

8ND-F6311-00-00

Unavailable

15

SWITCH, HANDLE 4

8MS-H3972-10-00

$506.99

16

SWITCH, HANDLE 3

8MY-H3973-00-00

Unavailable

17

PROTECTOR, HANDLEB

8MF-F6124-00-00

Unavailable

18

TIE, CABLE-8.5/7.5/7.4

8JM-RAB01-00-00

Unavailable

18

CLAMP, 1 (4-INCH)

8JP-RAB03-00-00

Unavailable

18

CLAMP, 2 (11.5 INCH)

8JP-RAB04-00-00

Unavailable

19

RING RETAINING

8JM-RAH02-00-00

Unavailable

20

PROTECTOR

8MY-HA7A0-00-00

Unavailable

20

PROTECTOR 1

8MY-HA7A1-00-00

Unavailable

20

PROTECTOR 2 (12 IN

8NV-HA7A2-00-00

Unavailable

21

SCREW, 8-18X0.875

8ML-RA286-00-00

Unavailable

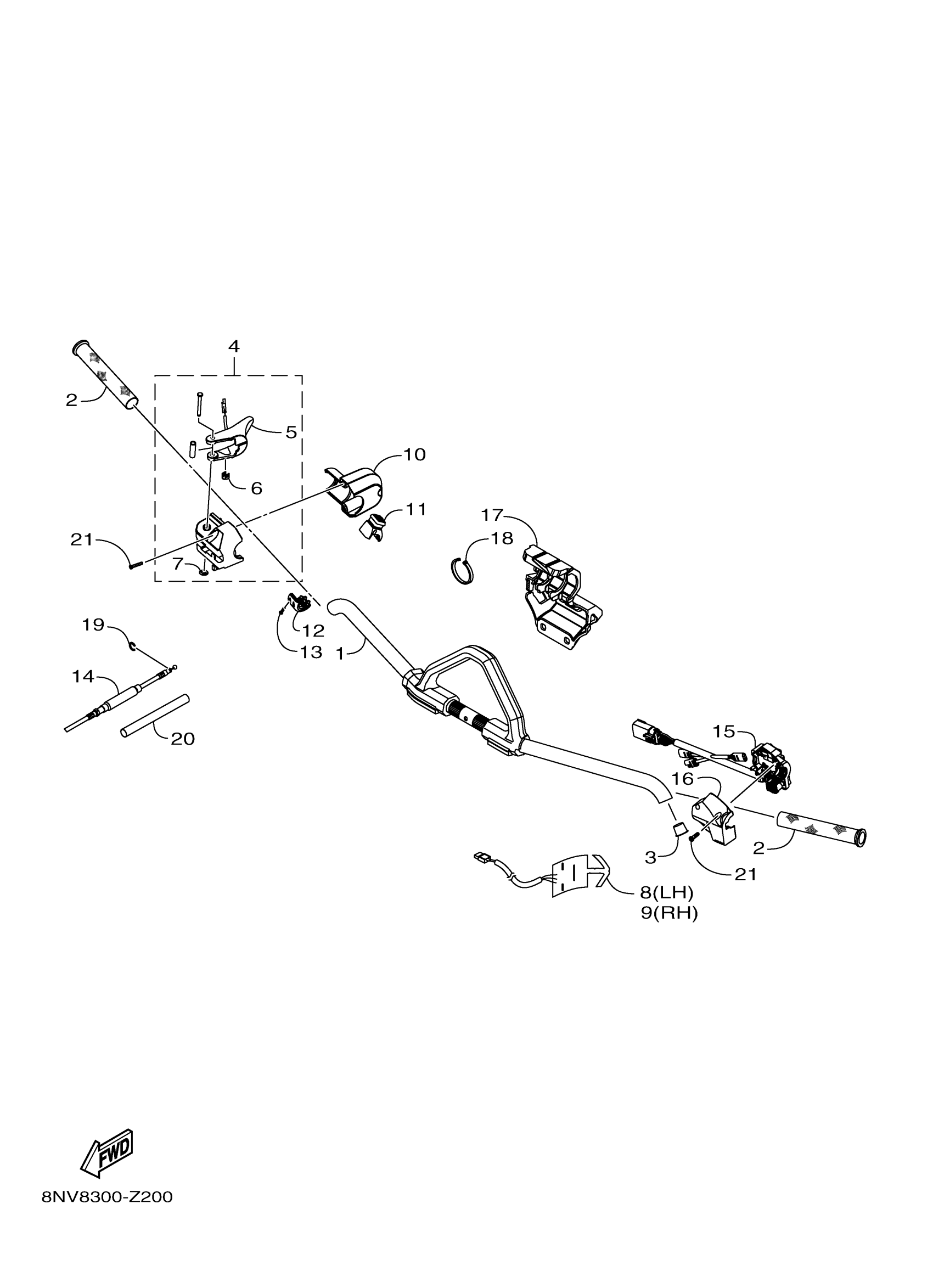

Yamaha TR8NTSRB (TRANSPORTER 800) 8NV7 2024 STEERING Diagram

HANDLEBAR

GRIP

NUT

LEVER HOLDER ASSY

LEVER HOLDER ASSY

CLIP, 1

NUT, 0.125

GRIP,WARMER

GRIP,WARMER

LEVER HOLDER ASSY

STOP SWITCH

CLAMP

SCREW

CABLE, THROTTLE 1

SWITCH, HANDLE 4

SWITCH, HANDLE 3

PROTECTOR, HANDLEB

TIE, CABLE-8.5/7.5/7.4

CLAMP, 1 (4-INCH)

CLAMP, 2 (11.5 INCH)

RING RETAINING

PROTECTOR

PROTECTOR 1

PROTECTOR 2 (12 IN

SCREW, 8-18X0.875
