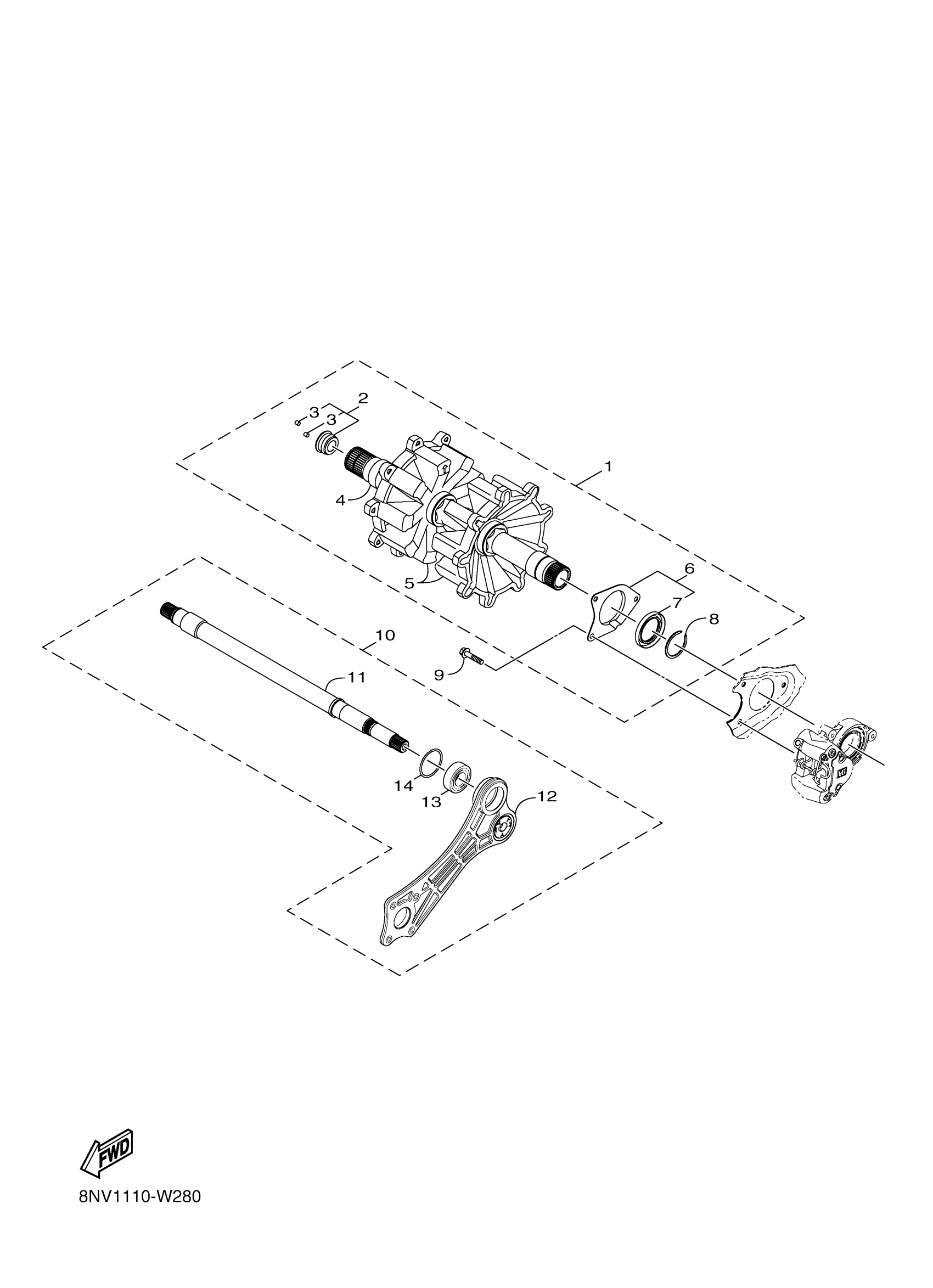

Yamaha TR8NTSPB (TRANSPORTER 800) 8NV5 2023 TRACK DRIVE 1 Diagram

#

Description
Price

1

FRONT AXLE SUB-ASS

8ND-G7501-00-00

$420.99

2

SENSOR, SPEED

8ND-H3755-00-00

Unavailable

3

MAGNET

8JP-H366M-00-00

$7.49

4

AXLE, FRONT

8JP-G7511-10-00

$277.99

5

WHEEL,SPROCKET 1

8JR-G7531-00-00

Unavailable

6

CALIPER SEAL KIT

8JP-F5803-01-00

$20.99

7

SEAL, OIL 45X65X8

8JP-RAE02-10-00

$4.94

8

CIRCLIP, FS-0175

8JP-RAH07-00-00

$2.75

9

BOLT, FLG. M8X1.25

8JP-RA189-00-00

Unavailable

10

SECONDARY SHAFT COMP.

8NV-E7680-00-00

Unavailable

11

SHAFT, SECONDARY

8ND-E7681-00-00

Unavailable

12

HOUSING, BEARING

8NV-G7631-00-00

$241.99

13

BEARING

8ND-RAG07-00-00

$37.99

14

CIRCLIP, 1

8ND-RAH03-00-00

$4.19
