STEERING GATE

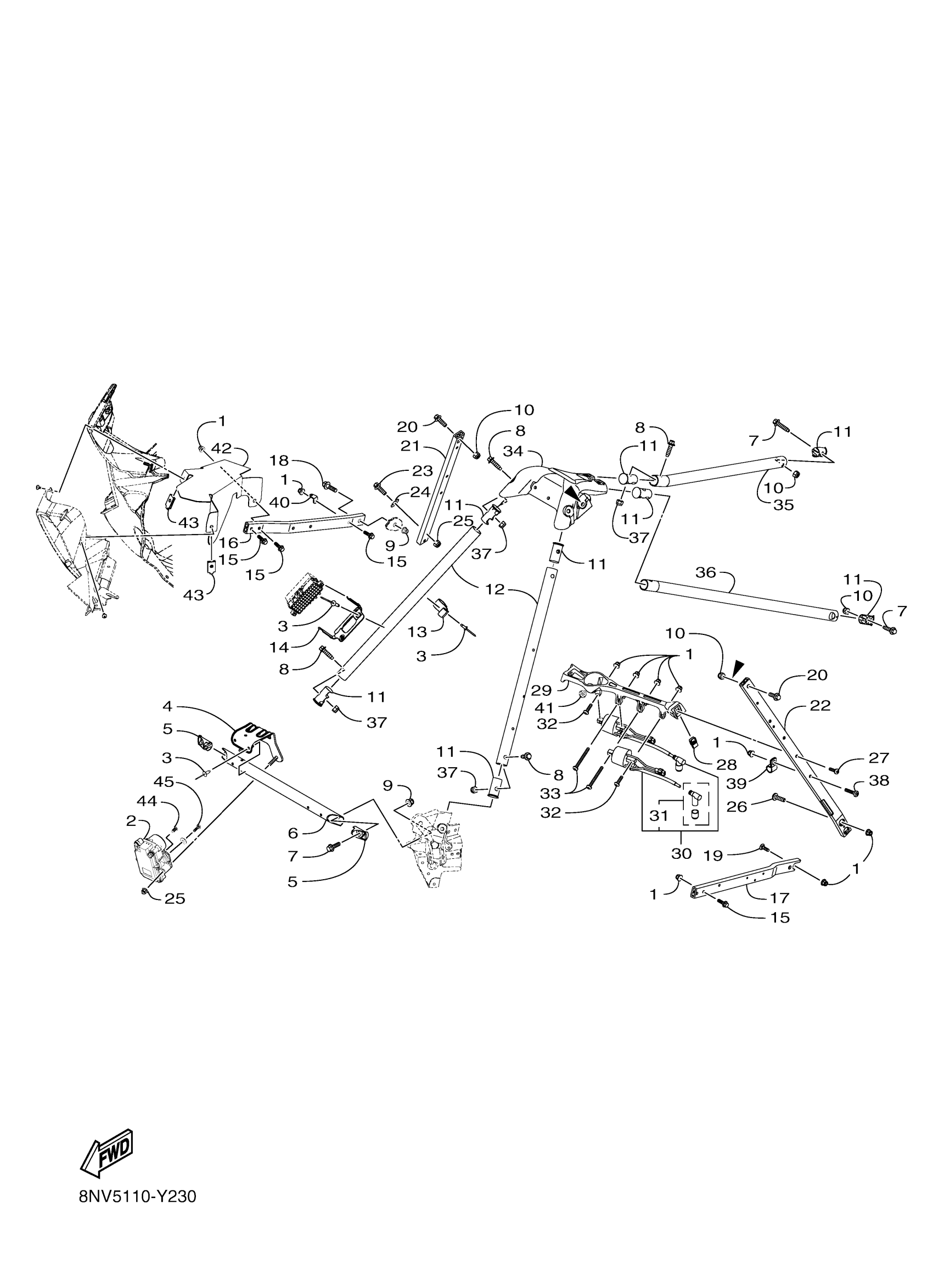

Yamaha TR8NTSPB (TRANSPORTER 800) 8NV5 2023 STEERING GATE Diagram
#
1
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
2
SERVO MOTOR ASSY
8NV-H5820-00-00
Unavailable
3
RIVET, 9
8JP-RA518-00-00
$0.59
4
BRACKET 1
8NV-F3881-00-00
$193.99
5
INSERT
8JP-F3775-00-00
Unavailable
6
SUPPORT, MEMBER
8ND-F2527-00-00
Unavailable
7
BOLT, FLG. M8X1.25
8JP-RA187-00-00
Unavailable
8
SCREW, 8
8JP-RA297-00-00
$3.08
9
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
$1.06
10
NUT, HEX. LOCKING
8JP-RA372-00-00
$0.54
11
CAP, MAIN PIPE
8JP-F111A-10-00
$3.98
12
PIPE, CROSS
8ND-F2162-00-00
Unavailable
13
CLAMP, 2
8ND-RAB01-00-00
Unavailable
14
BRACKET 1
8JP-E244E-00-00
Unavailable
15
BOLT, FLG. M6X1.0X
8JP-RA183-00-00
$1.16
16
SUPPORT 2
8ND-F2568-00-00
Unavailable
17
SUPPORT 1
8ND-F2567-00-00
Unavailable
18
BOLT, FLANGE
8ND-RA177-00-00
Unavailable
19
BOLT
8ND-RA122-00-00
Unavailable
20
BOLT, FLG. M8X1.25
8JP-RA185-00-00
Unavailable
21
MEMBER, SIDE 1
8ND-F111J-00-00
Unavailable
22
MEMBER, SIDE 2
8ND-F111K-10-00
Unavailable
23
BOLT, FLG. M6X1.0X
8JP-RA182-00-00
Unavailable
24
WASHER,LOCK-1/4 EXT TOOTH TYP
8JM-RA407-00-00
Unavailable
25
NUT, LOCK 1
8JP-RA379-00-00
Unavailable
26
SCREW, M6X1.0X16
8JP-RA256-00-00
Unavailable
27
SCREW
8ND-RA200-00-00
Unavailable
28
NUT, CLIP M6
8JP-RA354-00-00
Unavailable
29
BRACKET 1
8ND-F3591-00-00
Unavailable
30
IGNITION COIL ASSY
8ND-H2310-00-00
Unavailable
31
PLUG CAP ASSY
8ND-H2370-00-00
Unavailable
32
SCREW
8ND-RA204-00-00
Unavailable
33
SCREW
8ND-RA205-00-00
Unavailable
34
GATE, STEERING
8KC-F3871-00-00
Unavailable
35
PIPE, CROSS, 7
8KC-F119E-00-00
Unavailable
36
PIPE CROSS 8
8KC-F119F-00-00
Unavailable
37
NUT, HEX. LOCKING
8JP-RA371-00-00
Unavailable
38
SCREW, M6X1.0X25
8JP-RA263-00-00
Unavailable
39
CLAMP, 21
8JP-RAB23-00-00
Unavailable
40
BRACKET
8ML-E4744-00-00
Unavailable
41
BUSH
8ND-F376B-00-00
Unavailable
42
DUCT 1
8NV-F286A-00-00
Unavailable
43
NUT, CLIP
8JP-RA349-00-00
Unavailable
44
PLUG, 1
8NT-RA600-00-00
Unavailable
45
BOLT, FLANGE
8NW-RA191-00-00
Unavailable
