Description

Price

1

HEAT EXCHANGER

8ND-E240E-00-00

Unavailable

2

RIVET, 17

8JP-RA529-00-00

$0.54

3

. NUT, HEX LOCKING

8JP-RA370-00-00

Unavailable

4

SCREW, 11

8JP-RA2A0-00-00

Unavailable

5

BRACKET

8JP-F1919-00-00

$32.99

6

RIVET, 10

8JP-RA519-00-00

$0.70

7

RIVET, 11

8JP-RA520-00-00

$0.70

8

PROTECTOR

8ND-E2498-00-00

Unavailable

9

HOSE, 1

8KC-RA905-00-00

Unavailable

10

CLAMP, 25

8JP-RAB27-00-00

Unavailable

11

HOSE, 10

8ND-RA900-00-00

Unavailable

11

HOSE, 11

8ND-RA902-00-00

Unavailable

12

CAP, RADIATOR

8ND-E2462-00-00

$93.99

13

NECK, FILLER

8ND-E2521-00-00

Unavailable

14

NUT, LOCK 1

8JP-RA379-00-00

$0.54

15

SCREW, M6X1.0X25

8JP-RA263-00-00

Unavailable

16

CLAMP, 22

8ND-RAB24-00-00

Unavailable

17

HOSE 1

8ND-E243A-00-00

Unavailable

18

CLAMP,26

8JP-RAB29-00-00

Unavailable

19

HOSE 5

8ND-E244H-00-00

Unavailable

20

PROTECTOR, HEAT

8ND-E2682-00-00

Unavailable

21

HOSE 5

8NV-E244H-00-00

Unavailable

22

JOINT

8ND-E2446-00-00

Unavailable

23

CLAMP 1

8ND-E2491-00-00

Unavailable

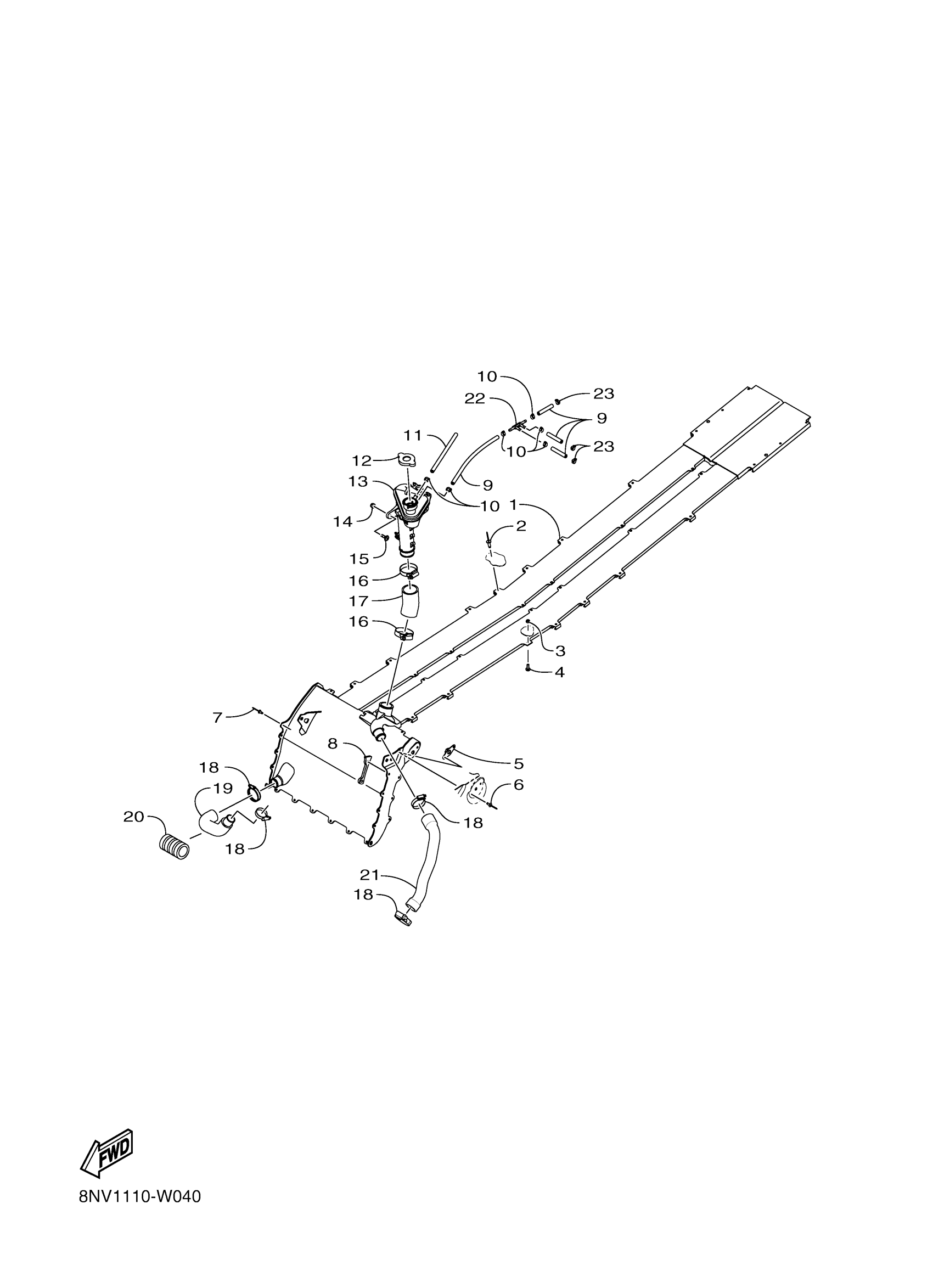

Yamaha TR8NTSPB (TRANSPORTER 800) 8NV5 2023 RADIATOR & HOSE Diagram

HEAT EXCHANGER

RIVET, 17

. NUT, HEX LOCKING

SCREW, 11

BRACKET

RIVET, 10

RIVET, 11

PROTECTOR

HOSE, 1

CLAMP, 25

HOSE, 10

HOSE, 11

CAP, RADIATOR

NECK, FILLER

NUT, LOCK 1

SCREW, M6X1.0X25

CLAMP, 22

HOSE 1

CLAMP,26

HOSE 5

PROTECTOR, HEAT

HOSE 5

JOINT

CLAMP 1
