Description

Price

1

SILENCER ASSY

8NV-E4750-00-00

$990.99

2

GROMMET

8ND-E5357-00-00

$10.49

3

GROMMET

8ND-E5375-00-00

$25.99

4

GASKET, MUFFLER

8NV-E4714-00-00

$36.99

5

SPRING, 3

8ND-RAD14-00-00

$8.49

6

SENSOR, HEAT

8ND-E4277-00-00

$275.99

7

CLAMP, 1 (4-INCH)

8JP-RAB03-00-00

Unavailable

8

EXHAUST PIPE ASSY

8NV-E4610-00-00

Unavailable

9

EXHAUST PIPE ASSY

8NV-E4620-00-00

Unavailable

10

PROTECTOR, MUFFLER

8NV-E4728-00-00

$111.99

11

. MAT 2

8NV-E4736-00-00

Unavailable

12

MAT 1

8NV-E4733-00-00

$21.99

13

PROTECTOR, MUFFLER

8NV-E4718-00-00

Unavailable

14

BAND, SILENCER

8ND-E4788-00-00

Unavailable

15

SPRING, EXHAUST STRAP

8JM-RAD05-00-00

$4.56

16

BAND, SILENCER 3

8NV-E4796-00-00

Unavailable

17

BAND, SILENCER 3

8ND-E4796-00-00

Unavailable

18

SPRING, MUFFLER

8NS-E4773-00-00

Unavailable

19

GASKET, EXHAUST PI

8NV-E4613-00-00

Unavailable

20

NUT, HEXAGON

8ND-RA366-00-00

Unavailable

21

GASKET, EXHAUST PI

8NV-E4623-00-00

Unavailable

22

PIPE, EXHAUST 3

8NV-E4631-00-00

Unavailable

23

SPRING, MUFFLER

8NS-E4773-00-00

Unavailable

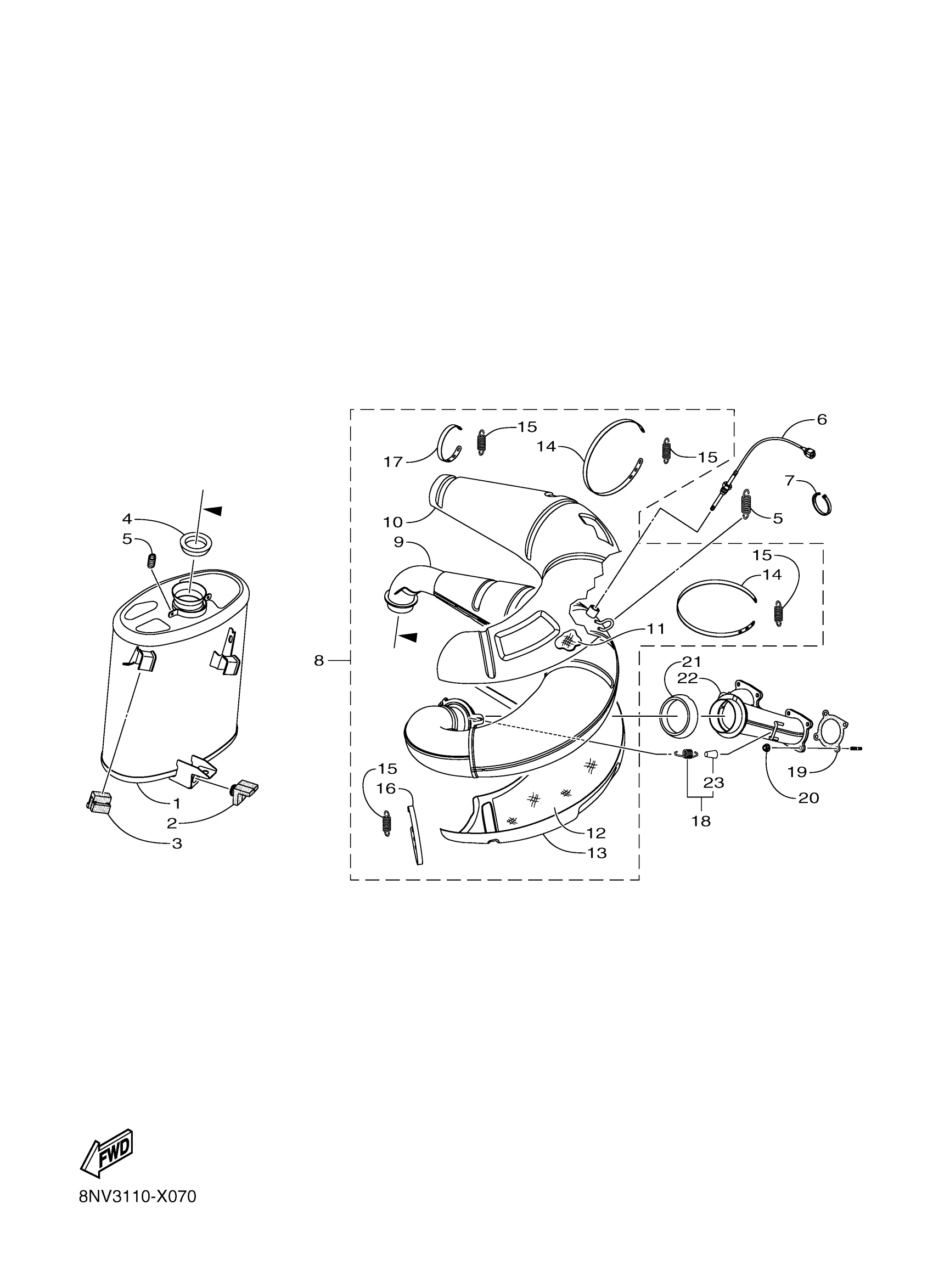

Yamaha TR8NTSPB (TRANSPORTER 800) 8NV5 2023 EXHAUST Diagram

SILENCER ASSY

GROMMET

GROMMET

GASKET, MUFFLER

SPRING, 3

SENSOR, HEAT

CLAMP, 1 (4-INCH)

EXHAUST PIPE ASSY

EXHAUST PIPE ASSY

PROTECTOR, MUFFLER

. MAT 2

MAT 1

PROTECTOR, MUFFLER

BAND, SILENCER

SPRING, EXHAUST STRAP

BAND, SILENCER 3

BAND, SILENCER 3

SPRING, MUFFLER

GASKET, EXHAUST PI

NUT, HEXAGON

GASKET, EXHAUST PI

PIPE, EXHAUST 3

SPRING, MUFFLER
