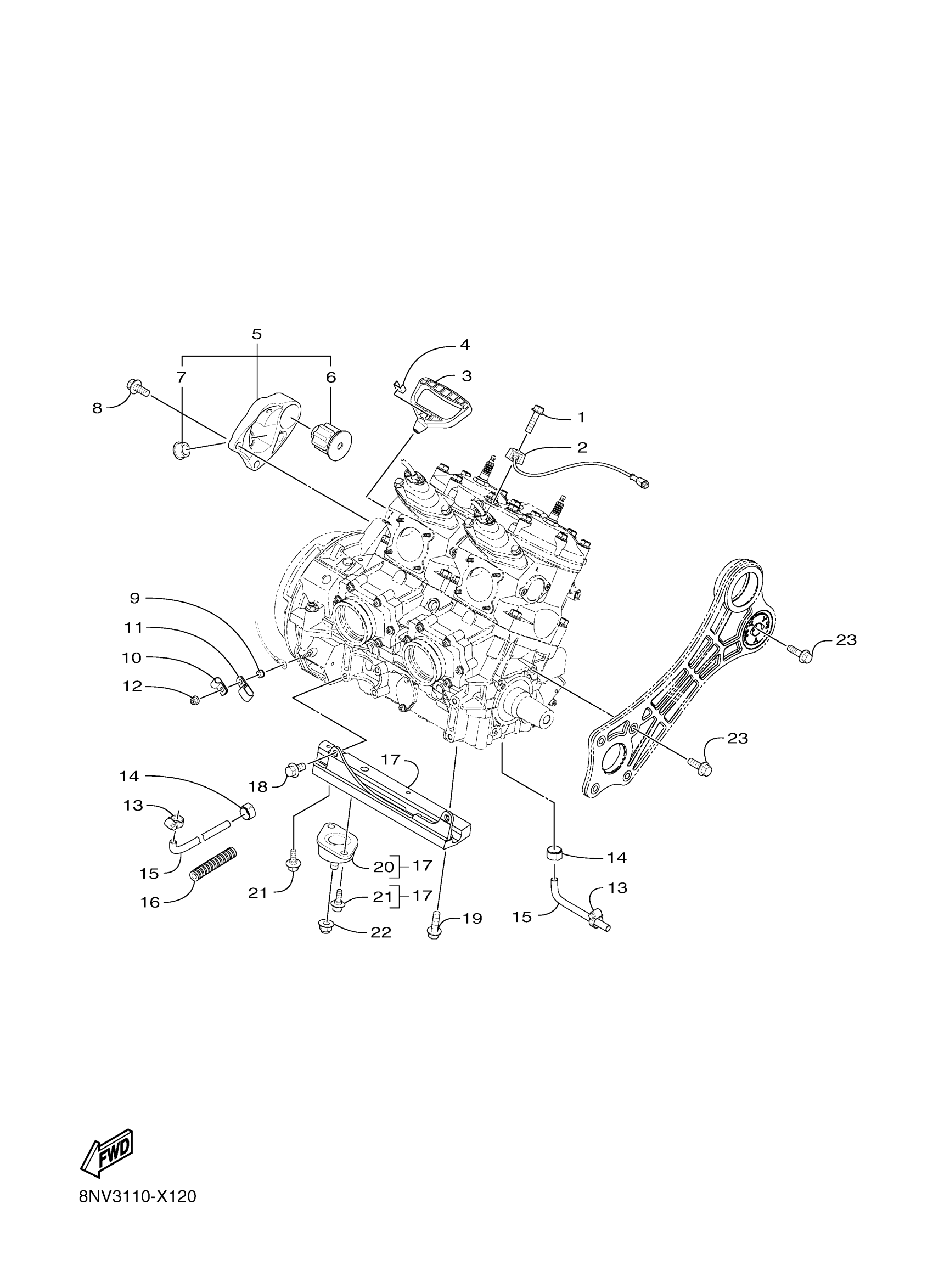

Yamaha TR8NTSPB (TRANSPORTER 800) 8NV5 2023 ENGINE BRACKET Diagram

#

Description
Price

1

BOLT, FLANGE

8ND-RA100-00-00

Unavailable

2

SENSOR, KNOCK

8ND-H5780-00-00

$91.99

3

HANDLE, STARTER

8ND-E5755-00-00

Unavailable

4

CAP, HANDLE

8ND-E5720-00-00

$1.86

5

ENGINE BRACKET COM

8ND-F1410-00-00

Unavailable

6

DAMPER 2

8ND-F1486-00-00

$60.99

7

BUSH, FLANGE

8ND-RA818-00-00

Unavailable

8

BOLT, FLANGE

8ND-RA117-00-00

Unavailable

9

NUT, WITH WASHER M

8JP-RA375-00-00

$0.48

10

CLAMP, 17

8JP-RAB19-00-00

Unavailable

11

CLAMP, 3

8ND-RAB05-00-00

Unavailable

12

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

13

CLAMP, HOSE #4 (6202)

8JM-RAA00-00-00

$3.50

14

CLAMP, 6

8JP-RAB08-00-00

$2.44

15

HOSE 2

8ND-E243E-10-00

$82.99

16

MEMBER 4

8ND-F2824-00-00

Unavailable

17

PLATE, ENGINE MOUN

8NV-F145B-00-00

Unavailable

18

BOLT, FLANGE

8ND-RA118-00-00

Unavailable

19

BOLT, FLANGE

8ND-RA121-00-00

Unavailable

20

DAMPER, RUBBER 1

8NV-F1485-00-00

Unavailable

21

SCREW

8ND-RA209-00-00

Unavailable

22

NUT, FLG. LOCKING

8JP-RA360-00-00

Unavailable

23

BOLT, FLG. M8X1.25

8JP-RA186-00-00

Unavailable
