TRACK SUSPENSION 5

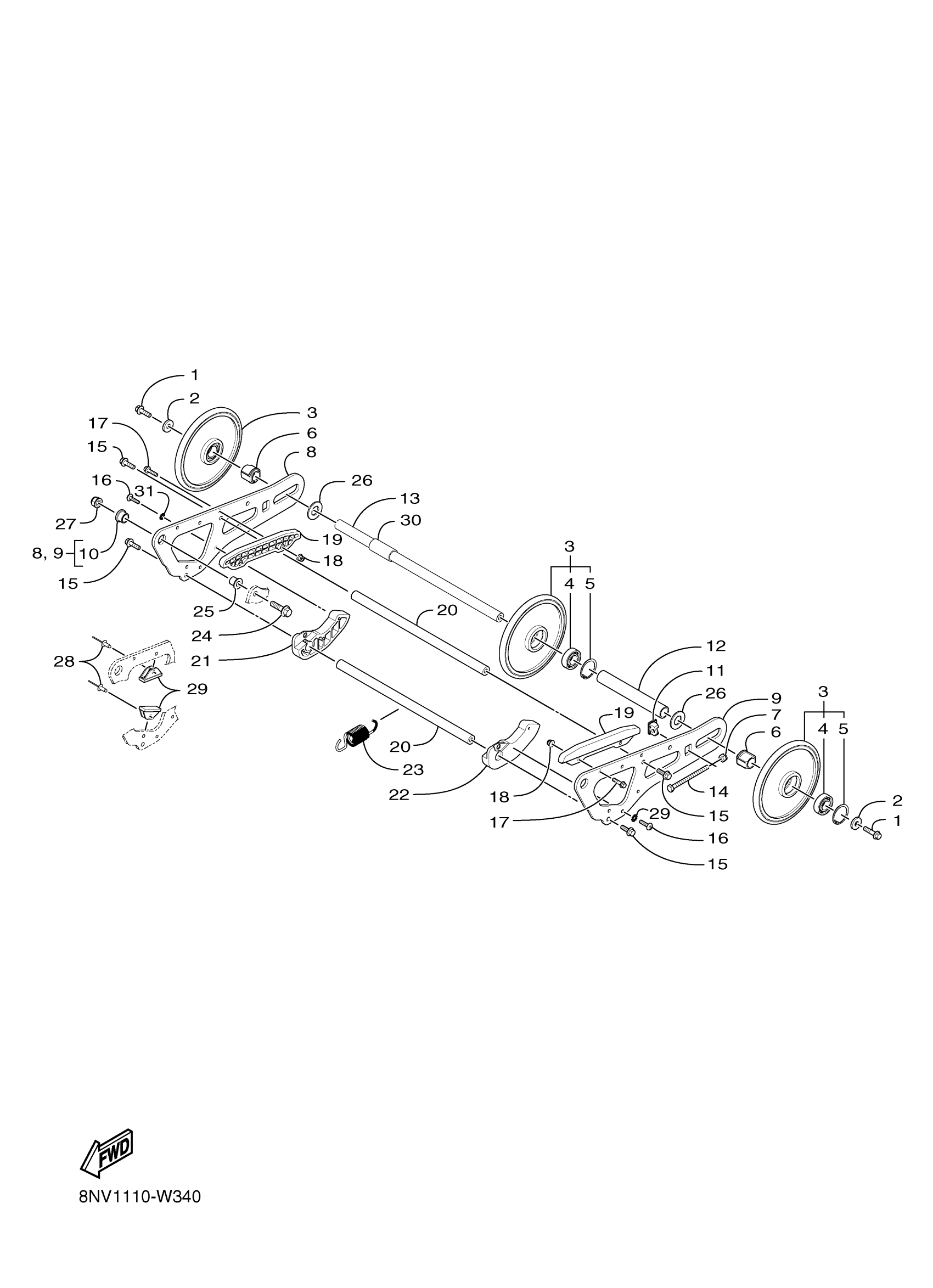

Yamaha TR8NTSNL (TRANSPORTER 800) 8NV3 2022 TRACK SUSPENSION 5 Diagram
#
1
BOLT, FLG. M10X1.2
8JP-RA199-00-00
$3.18
2
WASHER, M10X29
8JP-RA453-00-00
$1.86
3
GUIDE WHEEL ASSY
8NV-G7550-00-00
$42.99
4
BRNG,WHL-NSK CHINA6004-W/ENS G
8JM-RAY03-00-00
$25.99
5
CIRCLIP, 2
8JM-RAH01-00-00
$8.49
6
COLLAR
8ND-RA700-00-00
Unavailable
7
NUT, HEX. LOCKING
8JP-RA372-00-00
$0.54
8
FRAME, SLIDING 2
8ND-G7412-10-00
Unavailable
9
FRAME, SLIDING 1
8ND-G7411-10-00
Unavailable
10
BUSH
8ND-G7713-00-00
Unavailable
11
BRACKET 5
8JP-G7463-00-00
$4.46
12
COLLAR
8ND-RA701-00-00
Unavailable
13
SHAFT 1
8ND-G7465-00-00
Unavailable
14
BOLT, HEX. M8X1.25
8JP-RA1B1-00-00
$2.34
15
BOLT, FLG. M8X1.25
8JP-RA186-00-00
$0.54
16
SCREW, TAPPING
8JP-RA294-00-00
Unavailable
17
BOLT, FLG. M6X1.0X
8JP-RA182-00-00
Unavailable
18
NUT,FLG. M6-1.0
8JM-RA322-00-00
Unavailable
19
ARM, PIVOT 3
8ND-G7333-00-00
Unavailable
20
SHAFT 2
8ND-G7475-00-00
Unavailable
21
SLIDER 2
8ND-G7442-00-00
Unavailable
22
SLIDER 1
8ND-G7441-00-00
Unavailable
23
SPRING, TENSION 1
8ND-RAD01-00-00
Unavailable
24
BOLT, FLANGE
8ND-RA116-00-00
Unavailable
25
BUSH
8ND-G7714-00-00
Unavailable
26
WASHER, 9
8LN-RA466-00-00
Unavailable
27
LOCK NUT
8JP-RA378-01-00
Unavailable
28
RIVET, 1
8ND-RA510-00-00
Unavailable
29
STOPPER, CONT. 1
8ND-G745D-10-00
Unavailable
30
SPACER
8ND-G7341-00-00
Unavailable
31
WASHER,LOCK-1/4 EXT TOOTH TYP
8JM-RA407-00-00
Unavailable
