Description

Price

1

SHELL SIDE PANEL ASSY 2

8ND-K8140-00-00

Unavailable

2

LABEL, WARNING 1

8KC-K7761-70-00

Unavailable

3

NUT, CLIP 10

8JP-RA352-00-00

$1.64

4

SCREW, 10-12X3/4

8KC-RA290-00-00

$1.86

5

HOOK 2

8KC-K715T-00-00

$3.18

6

HOOK 1

8KC-K715S-00-00

Unavailable

7

DAMPER, NOISE 18

8ND-K7278-00-00

$40.99

8

PROTECTOR 4

8ND-K7554-00-00

Unavailable

9

PROTECTOR 3

8ND-K7553-00-00

Unavailable

10

DAMPER, NOISE 19

8ND-K7279-00-00

$40.99

11

DAMPER, NOISE 18

8KC-K7278-00-00

$18.99

12

PROTECTOR 2

8NF-K7552-00-00

Unavailable

13

PROTECTOR 3

8NF-K7553-00-00

Unavailable

14

SHELL SIDE PANEL A

8KC-K8130-40-00

$215.99

15

LABEL, WARNING 1

8NJ-K7761-S0-00

Unavailable

16

DAMPER, NOISE 19

8KC-K7279-00-00

Unavailable

17

DAMPER, NOISE 17

8KC-K7277-00-00

Unavailable

18

DAMPER, NOISE 17

8KC-K7277-10-00

Unavailable

19

SCREW, 4

8KC-RA238-00-00

Unavailable

20

SHROUD

8KC-K7111-70-00

Unavailable

21

SHROUD 2

8KC-K7112-70-00

Unavailable

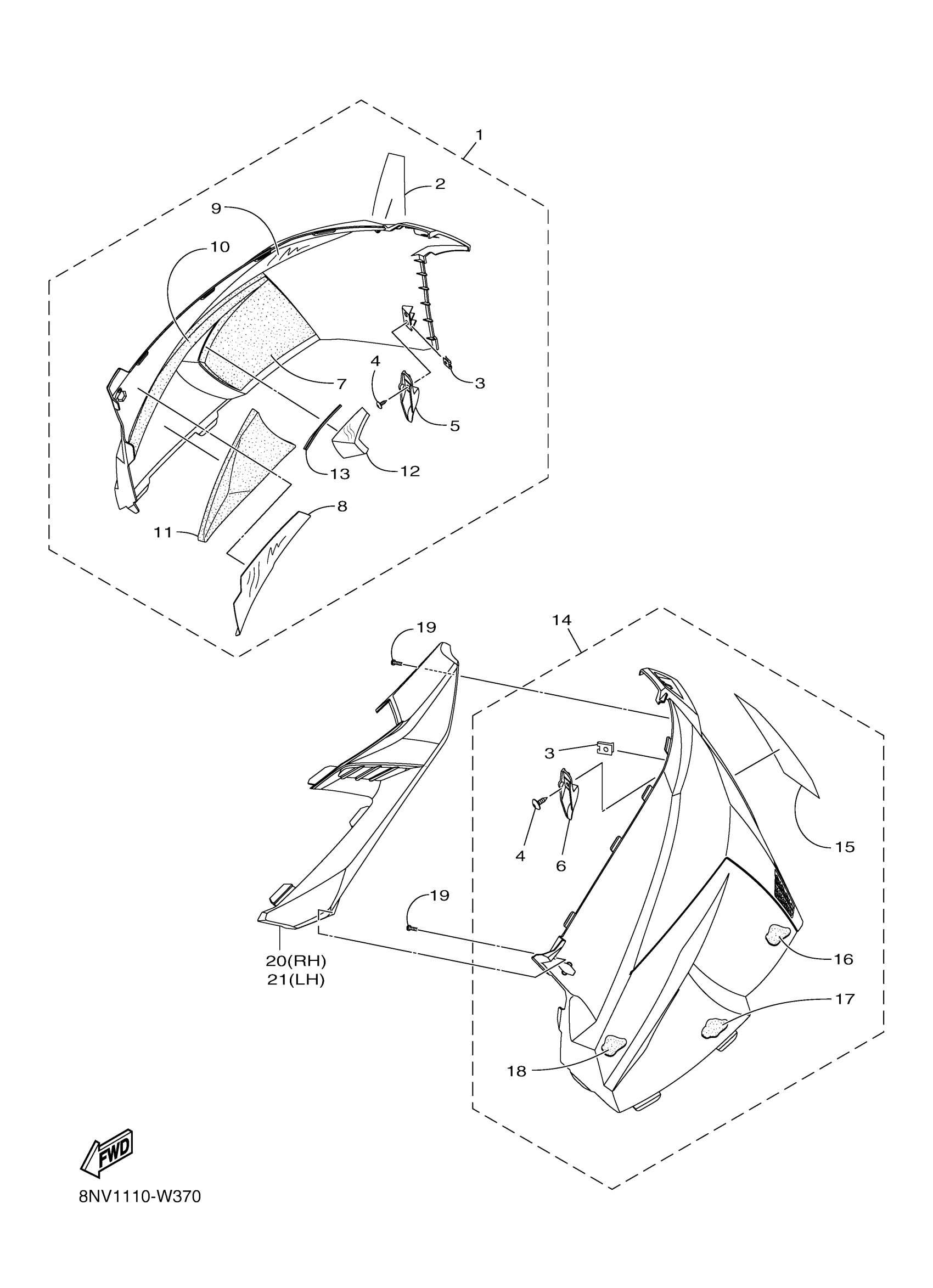

Yamaha TR8NTSNL (TRANSPORTER 800) 8NV3 2022 SIDE PANEL Diagram

SHELL SIDE PANEL ASSY 2

LABEL, WARNING 1

NUT, CLIP 10

SCREW, 10-12X3/4

HOOK 2

HOOK 1

DAMPER, NOISE 18

PROTECTOR 4

PROTECTOR 3

DAMPER, NOISE 19

DAMPER, NOISE 18

PROTECTOR 2

PROTECTOR 3

SHELL SIDE PANEL A

LABEL, WARNING 1

DAMPER, NOISE 19

DAMPER, NOISE 17

DAMPER, NOISE 17

SCREW, 4

SHROUD

SHROUD 2
