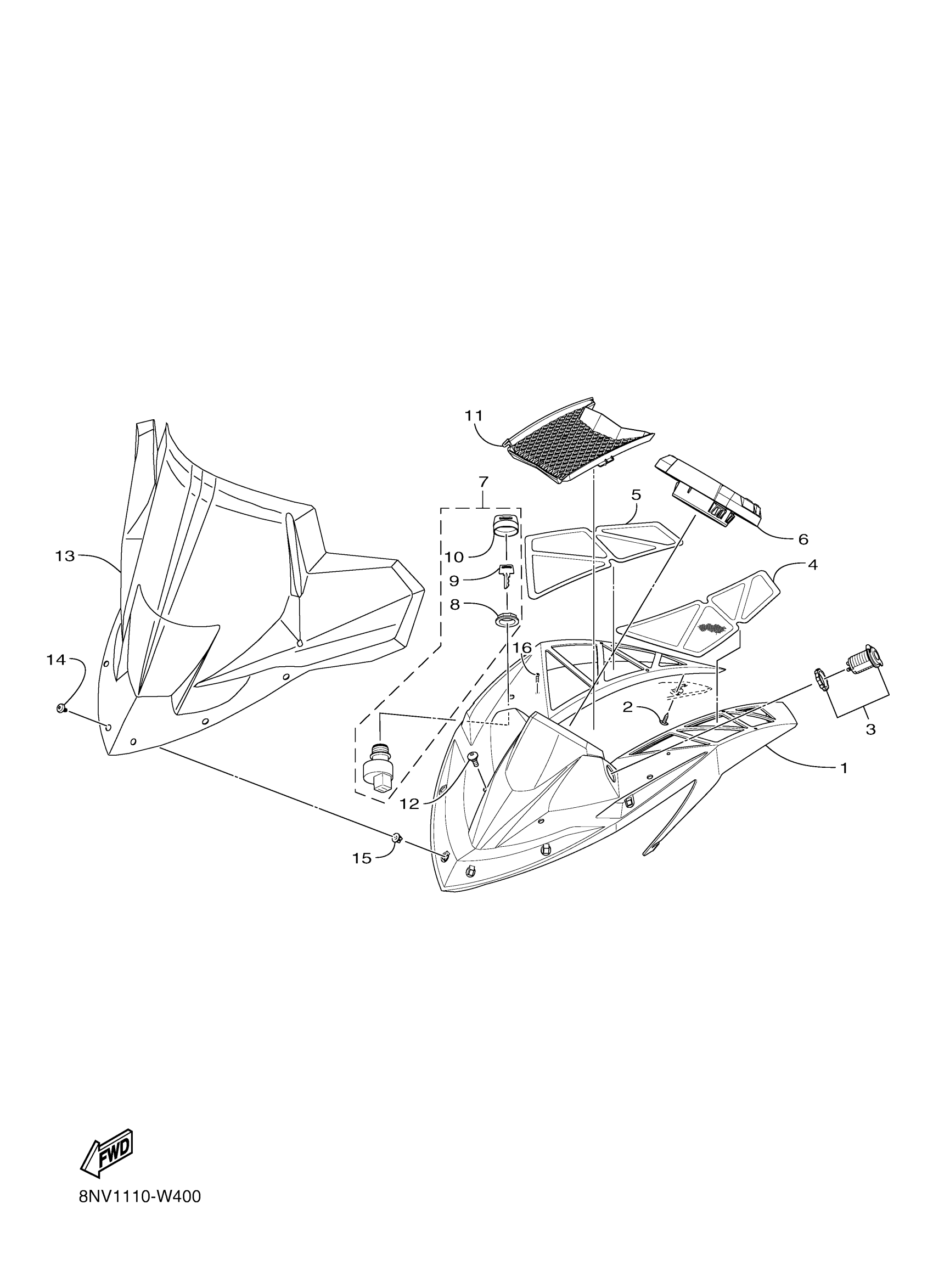

Yamaha TR8NTSNL (TRANSPORTER 800) 8NV3 2022 INSTRUMENT PANEL Diagram

PANEL, INSTRUMENT

8NV-K7712-00-00

Unavailable

SCREW, 10-12X3/4

8KC-RA290-00-00

$1.86

TERMINAL COMP.

8JP-H254B-10-00

$44.99

SCREEN, INTAKE DUC

8MT-K715D-10-00

Unavailable

SCREEN, INTAKE DUC

8MT-K715E-10-00

Unavailable

SPEEDOMETER ASSY

8NV-H3501-00-00

$716.99

MAIN SWITCH ASSY

8ND-H2510-00-00

Unavailable

. NUT, MAIN SWITCH

8JP-H2569-00-00

Unavailable

KEY (Y SERIESE, LE

8JP-H2511-00-00

$8.49

KEY (Z SERIES, RIG

8JP-H2511-10-00

$7.49

CAP, KEY

8JP-H2577-01-00

$18.99

LOUVER 1

8KC-K7131-00-00

Unavailable

SCREW, M6-1.0X18

8JP-RA253-00-00

$1.86

MED SW WINDSHIELD SMK 12"

SMA-8LR96-30-SM

Unavailable

SCREW, TAPPING M6X

8JP-RA280-10-00

$1.86

NUT, INSERT

8JP-RA373-00-00

Unavailable

SCREW, 8-18X0.875

8ML-RA286-00-00

Unavailable
