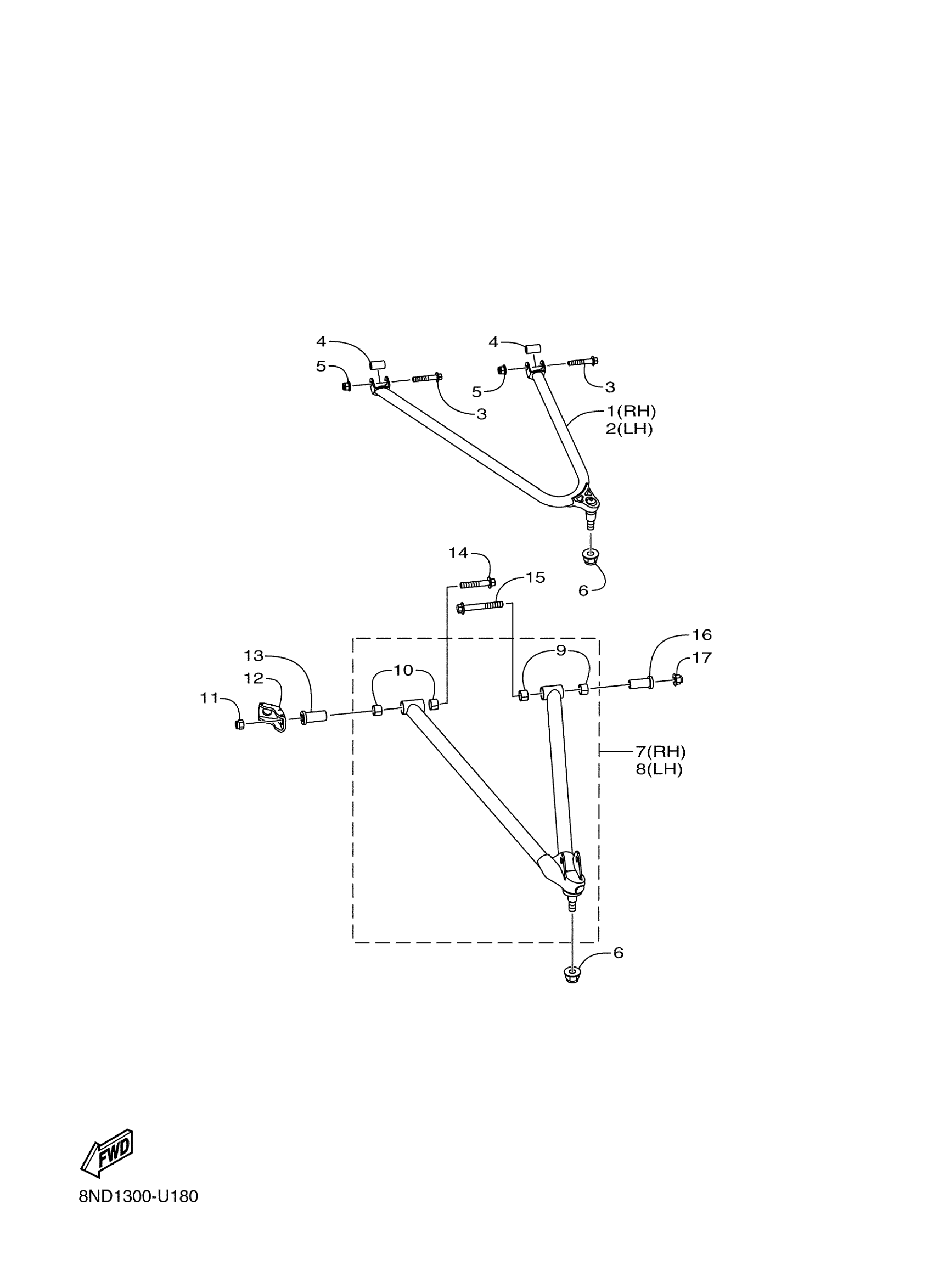

Yamaha TR8NTSNL (TRANSPORTER 800) 8NV3 2022 FRONT SUSPENSION Diagram

ARM, FRONT UPPER

8ND-F355A-10-00

Unavailable

ARM, FRONT UPPER

8ND-F354A-10-00

Unavailable

BOLT, FLG. M8X1.25

8JP-RA190-00-00

$1.43

COLLAR, 8

8JP-RA720-00-00

$2.55

NUT,HEX FLG-NYL LOCK M8X1.25

8JM-RA301-00-00

$1.06

NUT, FLG. LOCKING

8JP-RA362-00-00

$1.75

ARM,FR. LWR. RH.

8ND-F358A-10-00

Unavailable

ARM,FR. LWR. LH.

8ND-F357A-10-00

Unavailable

BUSH, 10DU10

8JP-RA807-00-00

$8.49

BUSH, 1815DU

8JP-RA811-00-00

$4.88

NUT, FLG. LOCKING

8JP-RA361-00-00

$1.86

ARM, 1

8JP-F3543-00-00

Unavailable

COLLAR, 9

8JP-RA721-10-00

Unavailable

BOLT, FLG. M12X1.2

8JP-RA1A7-00-00

Unavailable

BOLT, FLG. M10-1.2

8JP-RA194-20-00

Unavailable

COLLAR, 7

8JP-RA719-00-00

Unavailable

NUT, FLG. LOCKING

8JP-RA360-00-00

Unavailable
