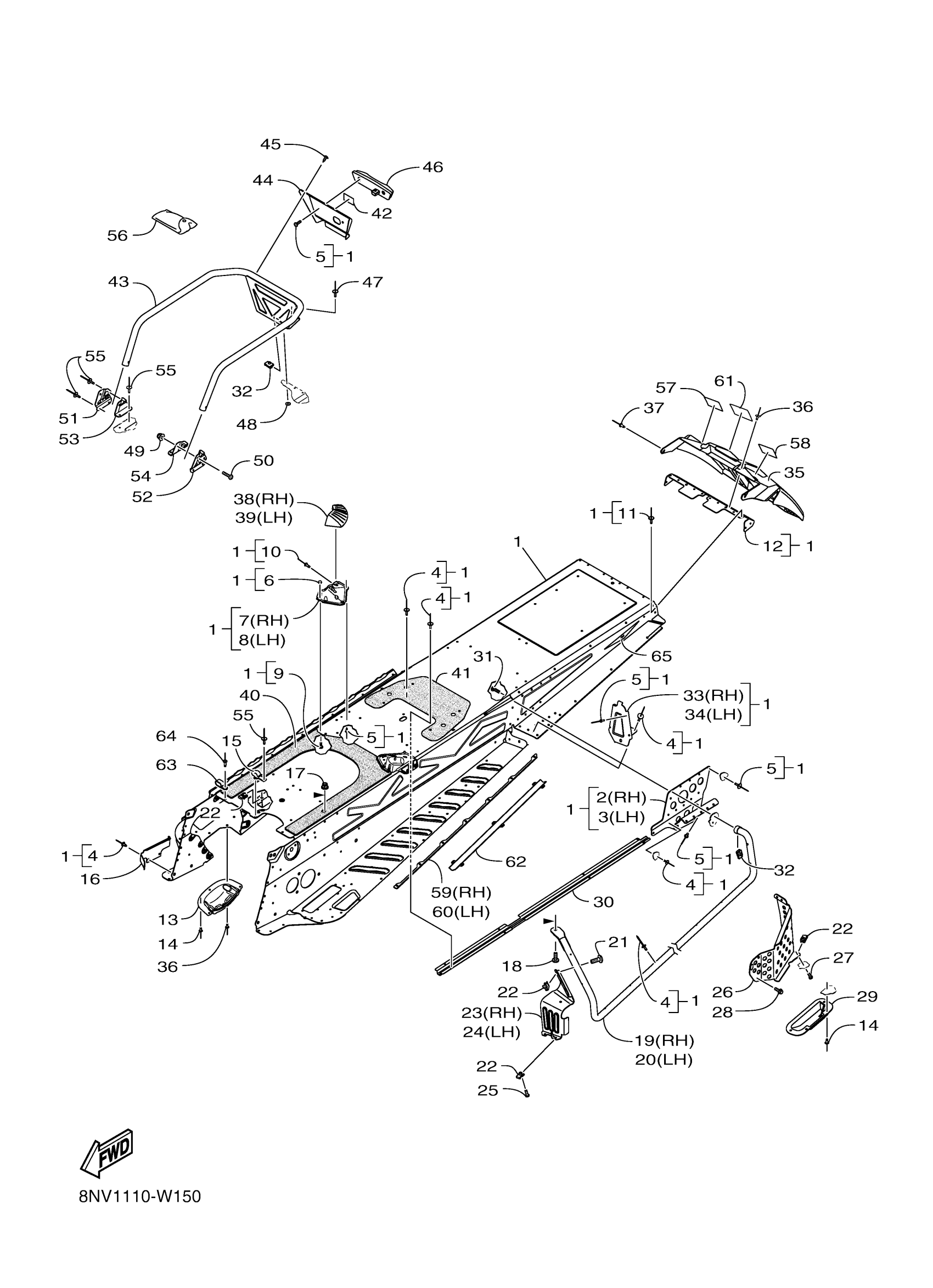

Yamaha TR8NTSNL (TRANSPORTER 800) 8NV3 2022 FRAME 2 Diagram
#
1
REAR FRAME COMP.
8NV-F1950-00-00
Unavailable
2
BRACKET,RR.TRACK S
8ND-F1954-00-00
$131.99
3
BRACKET,RR.TRACK S
8ND-F1944-00-00
$116.99
4
RIVET, 9
8JP-RA518-00-00
$0.59
5
RIVET, 3/16
8JP-RA527-00-00
$2.22
6
. NUT, HEX LOCKING
8JP-RA370-00-00
Unavailable
7
BRKT., MEMBER 2
8JW-F115M-00-00
Unavailable
8
. BRACKET, MEMBER 1
8JW-F115L-00-00
Unavailable
9
SCREW, M5X0.8X12
8JP-RA241-00-00
$4.88
10
RIVET, 3/16
8JP-RA528-00-00
$2.82
11
RIVET, 3
8ML-RA512-00-00
$1.81
12
REINEFORCEMENT, FR
8ND-F1923-00-00
$49.99
13
PROTECTOR, CHAIN
8JP-F2147-00-00
Unavailable
14
RIVET, 14
8JP-RA523-00-00
$1.22
15
CLAMP 16
8ND-RAB16-00-00
Unavailable
16
BRACKET,1
8ND-F194X-00-00
Unavailable
17
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
18
SCREW, M8X1.25X20
8JP-RA272-00-00
Unavailable
19
REINFORCEMENT, FRAME
8MJ-F192E-00-00
Unavailable
20
REINFORCEMENT, FRAME SIDE
8MJ-F1929-00-00
Unavailable
21
SCREW, M5X0.8X35
8JP-RA247-00-00
Unavailable
22
NUT, CLIP M5
8JP-RA353-00-00
Unavailable
23
REINFORCEMENT SUB
8JW-F1996-00-00
Unavailable
24
REINFORCEMENT SUB
8JW-F1995-00-00
Unavailable
25
SCREW, M5X1.0X16
8JP-RA251-00-00
Unavailable
26
PROTECTOR, DISK BR
8LN-F5718-00-00
Unavailable
27
SCREW, M5X0.8X20
8JP-RA244-00-00
Unavailable
28
BOLT, FLG. M6X1.0X
8JP-RA179-00-00
Unavailable
29
PROTECTOR, DISK BR
8JP-F5717-00-00
Unavailable
30
EXTENSION, WIRE HA
8MG-H258A-00-00
Unavailable
31
SCREW, M6X1.0X20
8JP-RA261-00-00
Unavailable
32
NUT, CLIP M6
8JP-RA354-00-00
Unavailable
33
REINFORCEMENT, RR.
8LN-F1937-00-00
Unavailable
34
REINFORCEMENT, RR.
8LN-F1927-00-00
Unavailable
35
FLAP
8LN-K7595-00-00
Unavailable
36
RIVET, 15
8JP-RA524-00-00
Unavailable
37
RIVET, 16
8LN-RA525-00-00
Unavailable
38
SUPT., FUEL TANK 2
8JP-F2556-00-00
Unavailable
39
SUPT., FUEL TANK 1
8JP-F2555-00-00
Unavailable
40
PLATE, BODY PROTEC
8MJ-K8261-00-00
Unavailable
41
PROTECTOR, FUEL TA
8MJ-F4141-00-00
Unavailable
42
LABEL, LOAD LIMIT
8ND-F817R-00-00
Unavailable
43
FRAME, LUGGAGE RAC
8ND-K8341-00-00
Unavailable
44
BRACKET, TAILLIGHT
8ND-F117E-00-00
Unavailable
45
SCREW, 10-12X3/4
8KC-RA290-00-00
Unavailable
46
TAILLIGHT ASSY
8JP-H4500-00-00
Unavailable
47
RIVET, 5
8ML-RA514-00-00
Unavailable
48
WASHER, PLAIN 1/4
8ML-RA400-00-00
Unavailable
49
NUT,FLG. M6-1.0
8JM-RA322-00-00
Unavailable
50
BOLT, FLANGE
8JP-RA1B4-10-00
Unavailable
51
BRACKET, FRONT
8LN-K7531-00-00
Unavailable
52
BRACKET, FRONT (R.H)
8LN-K7532-00-00
Unavailable
53
BRACKET, REAR (L.H)
8LN-K7533-00-00
Unavailable
54
BRACKET, REAR (R.H)
8LN-K7534-00-00
Unavailable
55
RIVET, 11
8JP-RA520-00-00
Unavailable
56
TOOL KIT
8ND-F8100-00-00
Unavailable
57
LABEL, WARNING 2
8JP-K7762-70-00
Unavailable
58
LABEL, WARNING 2
8JP-K7762-S0-00
Unavailable
59
REINFORCEMENT, FOO
8NV-F1926-00-00
Unavailable
60
REINFORCEMENT, RR.
8NV-F1927-00-00
Unavailable
61
LABEL, PULLING LOA
8ND-F817S-00-00
Unavailable
62
PROTECTER, WIRE HARNESS
8KT-H2589-00-00
Unavailable
63
CLAMP 13
8ND-RAB15-00-00
Unavailable
64
RIVET, 16
8ND-RA525-00-00
Unavailable
65
LABEL 1
8ND-F151A-00-00
Unavailable
