- TR8NTSNL (TRANSPORTER 800) 8NV3 2022
CRANKSHAFT & PISTON

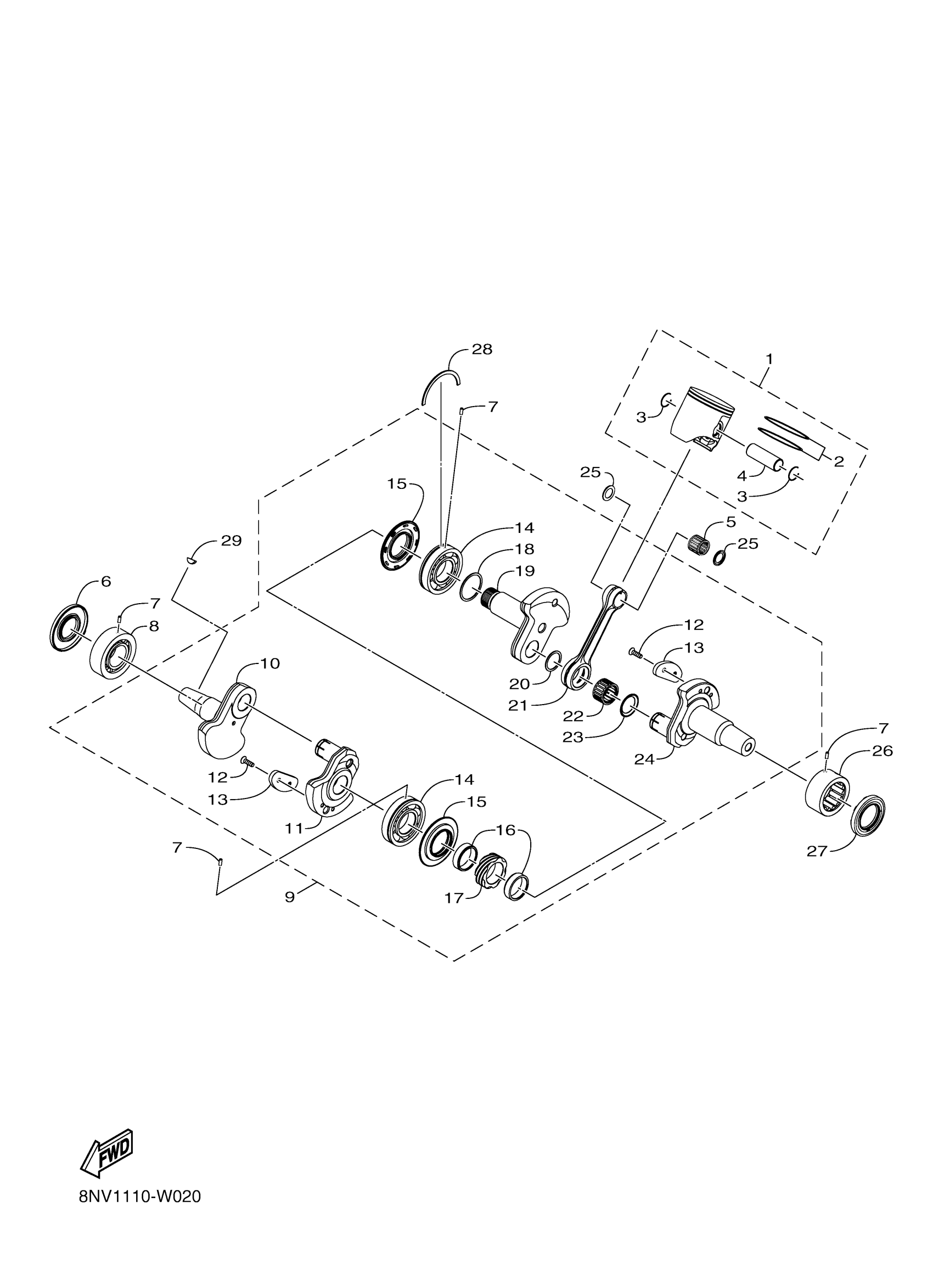

Yamaha TR8NTSNL (TRANSPORTER 800) 8NV3 2022 CRANKSHAFT & PISTON Diagram
#
1
PISTON ASSY (STD)
8NV-E1630-00-00
$269.99
2
PISTON RING SET (S
8NV-E1603-00-00
Unavailable
3
CLIP, 2
8NV-RAC01-00-00
$33.99
4
PIN, PISTON
8NV-E1633-00-00
$53.99
5
BEARING
8NT-RAG03-00-00
Unavailable
6
SEAL, OIL
8ND-RAE01-00-00
$26.99
7
PIN, 1
8ND-RAK01-00-00
Unavailable
8
BEARING
8ND-RAG03-00-00
$135.99
9
CRANKSHAFT ASSY
8NV-E1400-00-00
$1,422.99
10
CRANKSHAFT, 2
8NV-E1421-00-00
Unavailable
11
CRANKSHAFT, 4
8NV-E1441-00-00
Unavailable
12
SCREW
8ND-RA210-00-00
Unavailable
13
BALANCER
8ND-E6719-00-00
Unavailable
14
BEARING
8ND-RAG04-00-00
Unavailable
15
SEAL, OIL
8NV-RAE03-00-00
$85.99
16
SPACER
8NV-E1445-00-00
Unavailable
17
GEAR,INJECTION PUM
8ND-E2869-10-00
Unavailable
18
SHIM, CRANK 2
8ND-E1562-00-00
Unavailable
19
CRANK 3
8NV-E1431-00-00
Unavailable
20
SHIM, CRANK 1
8NV-E1561-00-00
Unavailable
21
ROD, CONNECTING
8NV-E1651-10-00
Unavailable
22
BEARING
8NT-RAG05-00-00
Unavailable
23
WASHER
8NV-RA436-00-00
Unavailable
24
CRANKSHAFT
8NV-E1411-00-00
Unavailable
25
SHIM
8NV-E3147-00-00
Unavailable
26
BEARING
8ND-RAG06-00-00
Unavailable
27
SEAL, OIL
8ND-RAE03-00-00
Unavailable
28
CIRCLIP, 1
8NV-RAH00-00-00
Unavailable
29
KEY, WOODRUFF
8ND-E1546-00-00
Unavailable
