Description

Price

1

FUEL TANK ASSY

8ND-F4100-00-00

Unavailable

2

CAP ASSY

8ND-F4610-00-00

Unavailable

3

SEAL, GAS CAP

8JM-F4641-00-00

Unavailable

4

VALVE, CHECK 1

8JP-F4362-10-00

Unavailable

5

GROMMET

8JP-E5366-10-00

$3.76

6

INSULATOR, FUEL TA

8ND-F416F-00-00

Unavailable

7

CLAMP, 10

8JP-RAB12-00-00

$0.54

8

HOSE, 3 (50 FEET)

8JP-RA907-00-00

$295.99

9

BRACKET, SEAT LOCK

8ND-F478X-00-00

Unavailable

10

BOLT, BUTTON HEAD

8KC-RA1C0-00-00

$1.11

11

SEAT BRACKET ASSY

8ND-F4708-00-00

Unavailable

12

SCREW

8ND-RA257-00-00

Unavailable

13

PAD, BATTERY

8ND-H2121-00-00

Unavailable

14

SCREW, M6X1.0X16

8JP-RA257-00-00

$0.96

15

BRACKET, FUEL PUMP

8ND-F4491-00-00

Unavailable

16

FUEL PUMP COMP.

8ND-E3907-00-00

Unavailable

17

FLOAT

8JP-H369N-00-00

Unavailable

18

O-RING

8JP-F4486-00-00

Unavailable

19

SENDER ASSY

8LN-H5701-00-00

Unavailable

20

FILTER, FUEL

8ND-F4502-00-00

Unavailable

21

CLAMP, 6

8JP-RAB08-00-00

Unavailable

22

HOSE, FUEL INLET

8ND-F451B-00-00

Unavailable

23

FUEL PIPE ASSY

8NV-F4310-00-00

Unavailable

24

TIE, CABLE-8.5/7.5/7.4

8JM-RAB01-00-00

Unavailable

24

CLAMP, 2 (11.5 INCH)

8JP-RAB04-00-00

Unavailable

25

SPACER, CARRIER

8ND-F4825-00-00

Unavailable

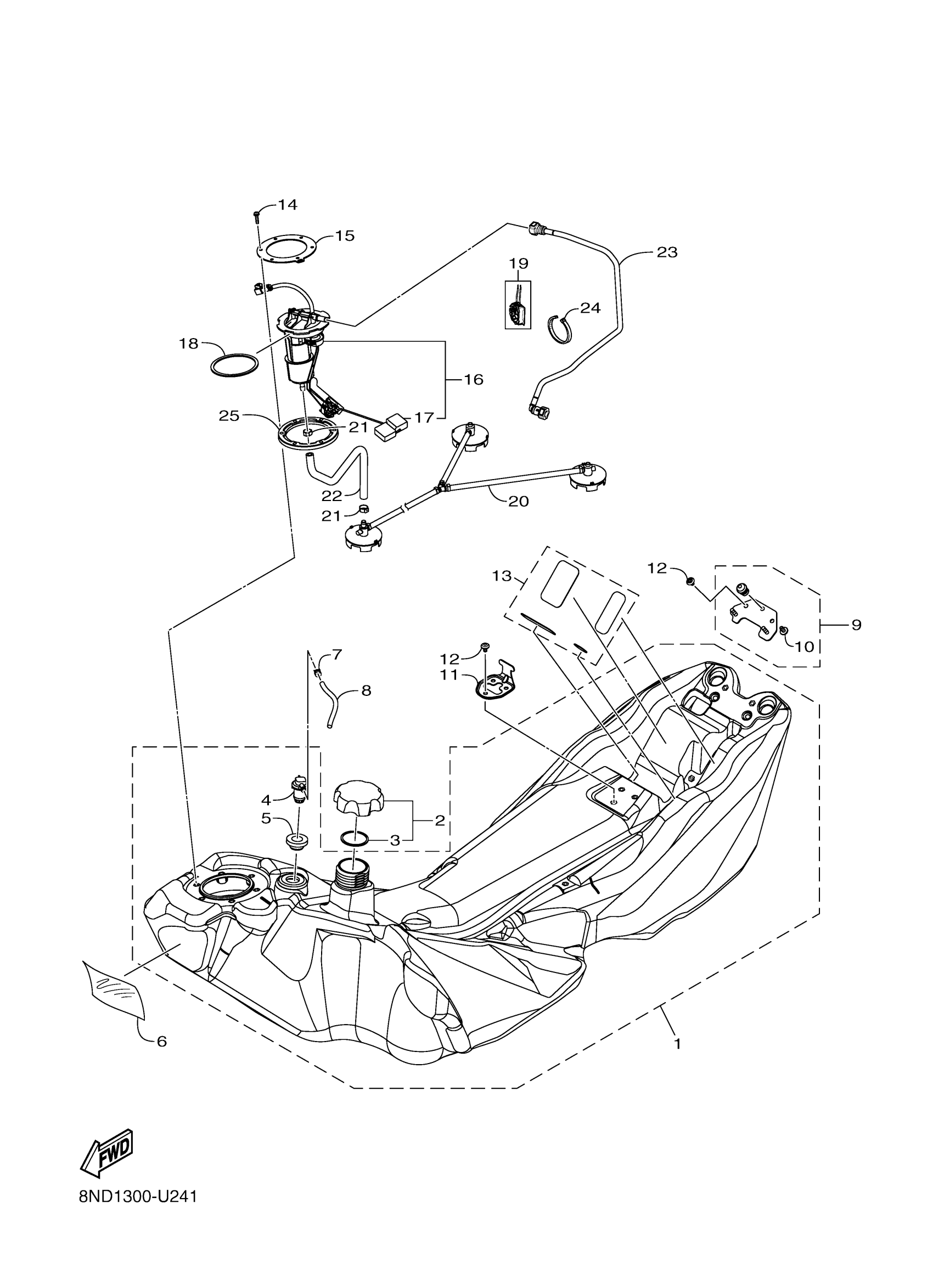

Yamaha TR8NTSMB (TRANSPORTER 800) 8NV1 2021 FUEL TANK Diagram

FUEL TANK ASSY

CAP ASSY

SEAL, GAS CAP

VALVE, CHECK 1

GROMMET

INSULATOR, FUEL TA

CLAMP, 10

HOSE, 3 (50 FEET)

BRACKET, SEAT LOCK

BOLT, BUTTON HEAD

SEAT BRACKET ASSY

SCREW

PAD, BATTERY

SCREW, M6X1.0X16

BRACKET, FUEL PUMP

FUEL PUMP COMP.

FLOAT

O-RING

SENDER ASSY

FILTER, FUEL

CLAMP, 6

HOSE, FUEL INLET

FUEL PIPE ASSY

TIE, CABLE-8.5/7.5/7.4

CLAMP, 2 (11.5 INCH)

SPACER, CARRIER
