2021 Yamaha Transporter 800 (TR8NTSMB) Engine Bracket Diagram

← All diagrams

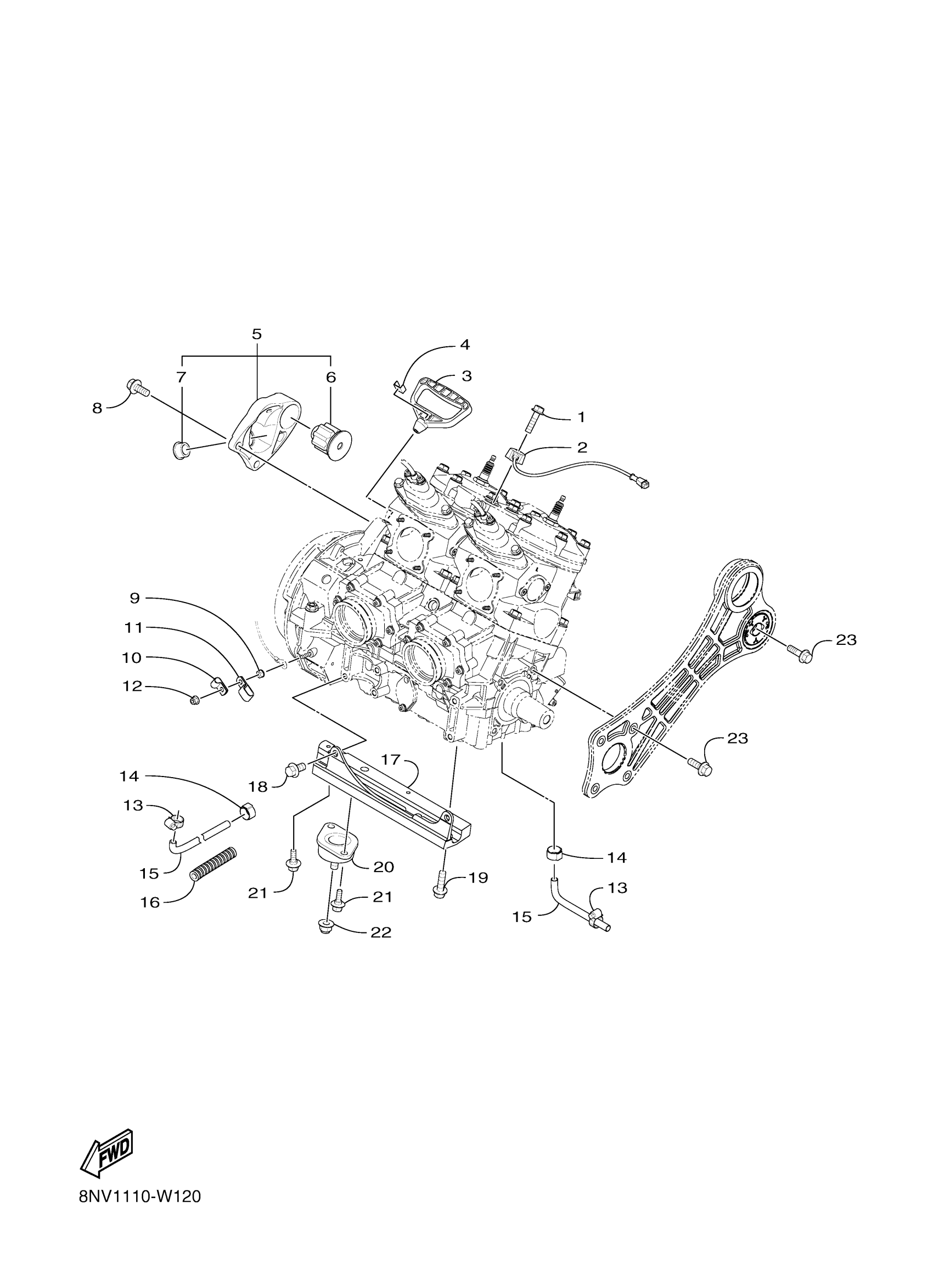

Find the part on the Engine Bracket diagram for your 2021 Yamaha Transporter 800 (TR8NTSMB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Yamaha Transporter 800 (TR8NTSMB) Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT, FLANGE

8ND-RA100-00-00

—
Out of stock

2

SENSOR, KNOCK

8ND-H5780-00-00

1
Out of stock

3

HANDLE, STARTER

8ND-E5755-00-00

—
Out of stock

4

CAP, HANDLE

8ND-E5720-00-00

1
Out of stock

5

ENGINE BRACKET COM

8ND-F1410-00-00

—
Out of stock

6

DAMPER 2

8ND-F1486-00-00

1
Out of stock

7

BUSH, FLANGE

8ND-RA818-00-00

—
Out of stock

8

BOLT, FLANGE

8ND-RA117-00-00

—
Out of stock

9

NUT, WITH WASHER M

8JP-RA375-00-00

1
Out of stock

10

CLAMP, 17

8JP-RAB19-00-00

—
Out of stock

11

CLAMP, 3

8ND-RAB05-00-00

—
Out of stock

12

NUT,FLG. M6-1.0

8JM-RA322-00-00

1
Out of stock

13

CLAMP, HOSE #4 (6202)

8JM-RAA00-00-00

1
Out of stock

14

CLAMP, 6

8JP-RAB08-00-00

1
Out of stock

15

HOSE 2

8ND-E243E-10-00

1
Out of stock

16

MEMBER 4

8ND-F2824-00-00

—
Out of stock

17

PLATE, ENGINE MOUN

8NV-F145B-00-00

—
Out of stock

18

BOLT, FLANGE

8ND-RA118-00-00

—
Out of stock

19

BOLT, FLANGE

8ND-RA121-00-00

—
Out of stock

20

DAMPER, RUBBER 1

8NV-F1485-00-00

—
Out of stock

21

SCREW

8ND-RA209-00-00

—
Out of stock

22

NUT, FLG. LOCKING

8JP-RA360-00-00

—
Out of stock

23

BOLT, FLG. M8X1.25

8JP-RA186-00-00

—
Out of stock
