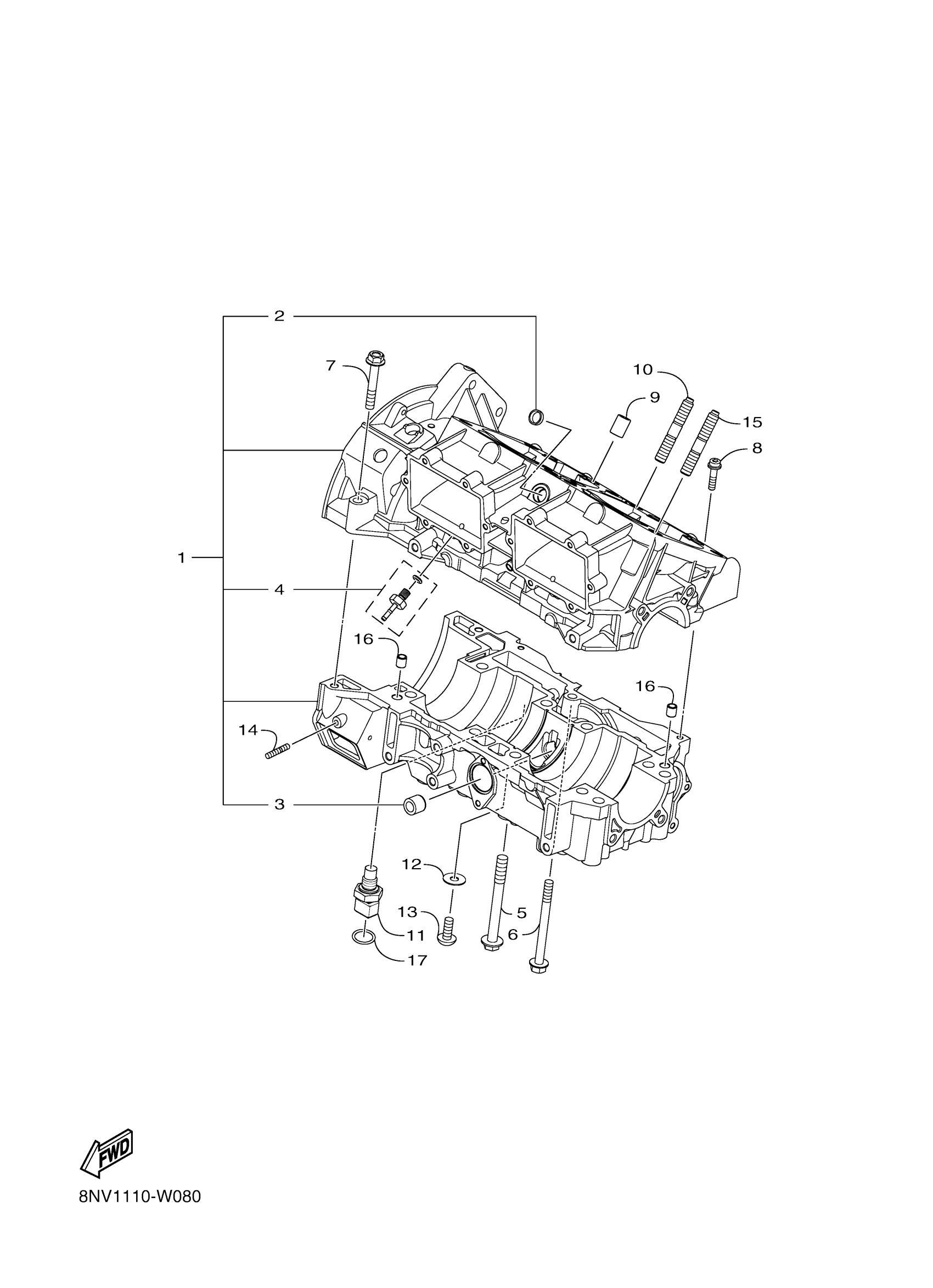

Yamaha TR8NTSMB (TRANSPORTER 800) 8NV1 2021 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

8NV-E5100-00-00

$1,019.46

2

PLUG

8ND-E1469-00-00

Unavailable

3

BUSH

8ND-E1466-00-00

$4.56

4

NOZZLE 1

8NV-E5138-00-00

Unavailable

5

BOLT, FLANGE

8ND-RA132-00-00

$5.19

6

BOLT, FLANGE

8ND-RA136-00-00

$26.40

7

BOLT, FLANGE

8ND-RA126-00-00

Unavailable

8

BOLT, FLANGE

8ND-RA138-00-00

Unavailable

9

ROLLER

8ND-E3363-00-00

$3.96

10

BOLT, STUD

8ND-E1179-00-00

$8.52

11

THERMOSENSOR ASSY

8JP-H5790-00-00

$18.71

12

WASHER, SEALING

8ND-E1173-00-00

Unavailable

13

SCREW

8ND-RA250-00-00

$2.41

14

BOLT, STUD 1

8ND-E1391-00-00

$3.96

15

BOLT, STUD 2

8NV-E1392-00-00

$2.25

16

ROLLER

8ND-E3362-00-00

Unavailable

17

O-RING

8NV-E119A-00-00

Unavailable
