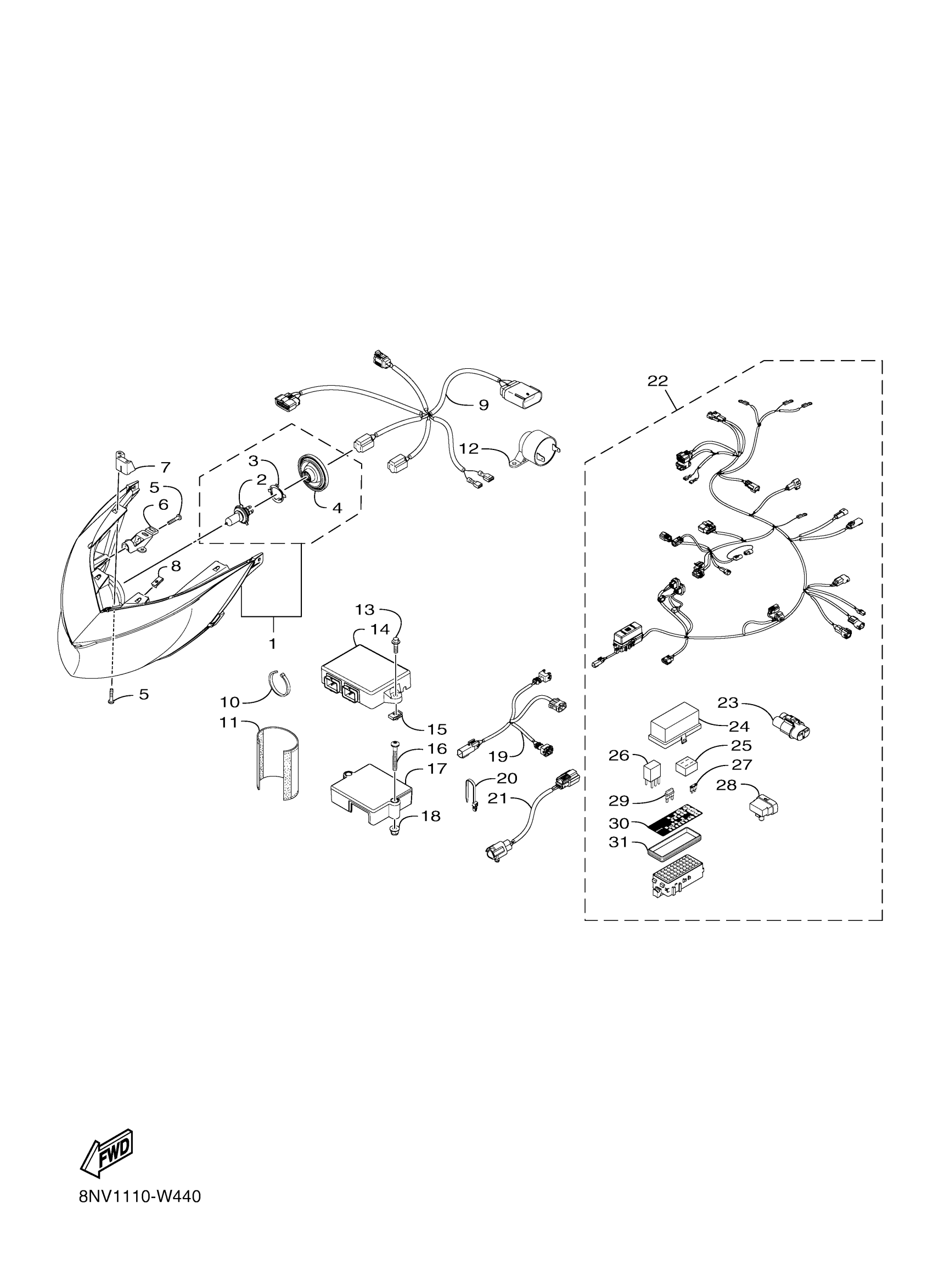

Yamaha TR8NTSMB (TRANSPORTER 800) 8NV1 2021 ELECTRICAL 1 Diagram
#
1
HEADLIGHT UNIT ASS
8JP-H4310-10-00
Unavailable
2
BULB, HEADLIGHT
8JR-H4314-00-00
$17.99
3
HOLDER BULB
8JP-H4393-00-00
$26.99
4
COVER, SOCKET
8JP-H4397-00-00
Unavailable
5
SCREW, TAPPING 1/4
8JP-RA284-00-00
Unavailable
6
BRACKET 1
8ND-H4781-00-00
Unavailable
7
BRACKET 2
8ND-H4782-00-00
Unavailable
8
NUT, CLIP M6X1.0
8JP-RA355-00-00
$1.16
9
WIRE HARNESS
8ND-H2105-00-00
$96.99
10
TIE, CABLE-8.5/7.5/7.4
8JM-RAB01-00-00
Unavailable
10
CLAMP, 1 (4-INCH)
8JP-RAB03-00-00
Unavailable
10
CLAMP, 2 (11.5 INCH)
8JP-RAB04-00-00
Unavailable
11
PROTECTER, WIRE HA
8ND-H2589-00-00
Unavailable
12
ALARM UNIT
8ND-H2564-00-00
Unavailable
13
BOLT, FLG. M6X1.0X
8JP-RA181-00-00
$1.11
14
ENGINE CONTROL UNI
8NV-H591A-00-00
Unavailable
15
NUT, CLIP M6
8JP-RA354-00-00
Unavailable
16
SCREW
8ND-RA264-00-00
Unavailable
17
RECTIFIER & REGULA
8ND-H1960-00-00
Unavailable
18
NUT,FLG. M6-1.0
8JM-RA322-00-00
Unavailable
19
EXTENSION, WIRE HA
8NV-H258A-00-00
Unavailable
20
CABLE TIE,PUSH MOUNT-XMAS CLIP
8JM-RAB02-00-00
Unavailable
21
EXTENSION, WIRE HA
8ND-H2586-00-00
Unavailable
22
WIRE HARNESS ASSY
8NV-H2590-00-00
Unavailable
23
CAP, PLUG
8ND-H2371-00-00
Unavailable
24
COVER, FUSE BOX
8JP-H2172-00-00
Unavailable
25
. HOLDER, FUSE
8JP-H2152-00-00
Unavailable
26
RELAY 1
8MS-H2185-00-00
Unavailable
27
FUSE (15A)
8JP-H2151-00-00
Unavailable
27
FUSE (20A)
8JP-H2151-10-00
Unavailable
27
FUSE (30A)
8JP-H2151-30-00
Unavailable
27
FUSE
8ND-H2151-00-00
Unavailable
28
COVER, CONNECTER
8JP-H1662-10-00
Unavailable
29
DIODE
8ND-H1974-00-00
Unavailable
30
DECAL 1
8ND-R2391-00-00
Unavailable
31
GASKET, HOLE COVER
8JP-H1365-00-00
Unavailable
