- TR8NTSMB (TRANSPORTER 800) 8NV1 2021
CYLINDER HEAD

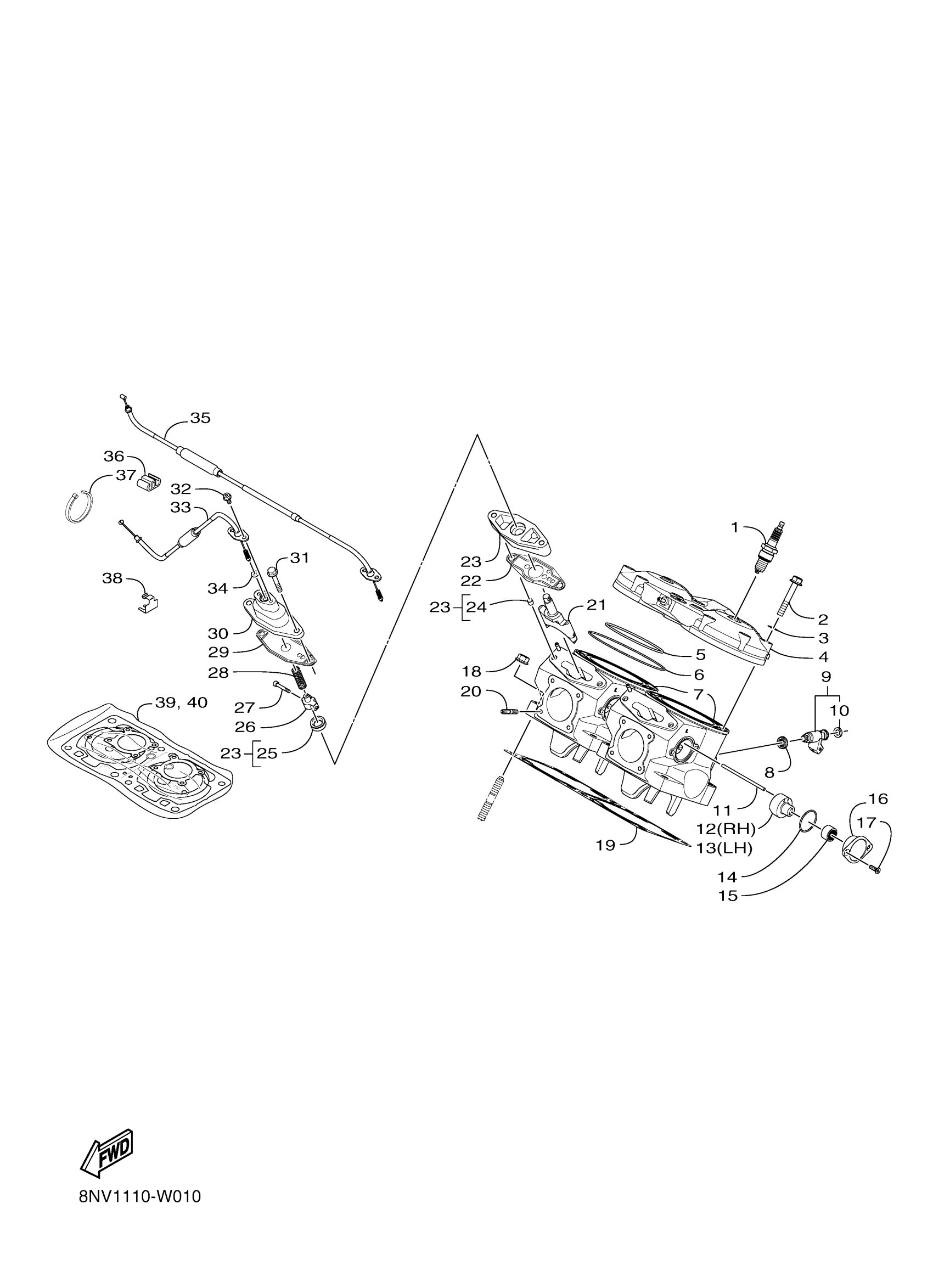

Yamaha TR8NTSMB (TRANSPORTER 800) 8NV1 2021 CYLINDER HEAD Diagram
#
1
PLUG, SPARK M14S-1
8ND-RAY10-00-00
$7.49
2
BOLT, FLANGE
8ND-RA126-00-00
Unavailable
3
O-RING, 1
8ND-RAF00-00-00
$3.35
4
HEAD, CYLINDER 1
8NV-E1111-00-00
$262.99
5
O-RING, 2
8NV-RAF01-00-00
$7.49
6
O-RING,3
8NV-RAF02-00-00
$3.98
7
CYLINDER 1
8NV-E1311-00-00
Unavailable
8
SEAL
8ND-E2223-00-00
Unavailable
9
INJECTOR
8NV-E3761-00-00
$241.99
10
O-RING, 1
8ND-RAF03-00-00
$34.99
11
PIN, JOINT
8NV-E1498-00-00
Unavailable
12
VALVE 2
8NV-E132A-00-00
$57.99
13
VALVE 1
8NV-E131A-00-00
$57.99
14
O-RING, 2
8NV-RAF04-00-00
Unavailable
15
BEARING
8NV-RAG02-00-00
$4.56
16
CAP, TENSIONER CAS
8NV-E2215-00-00
Unavailable
17
SCREW
8NV-RA200-00-00
Unavailable
18
NUT
8ND-RA317-00-00
Unavailable
19
GASKET, CYLINDER
8NV-E1351-00-00
Unavailable
20
BOLT, STUD
8ND-RA125-00-00
Unavailable
21
VALVE 3
8NV-E133A-00-00
Unavailable
22
GASKET
8ND-E1354-00-00
Unavailable
23
HOLDER 2
8ND-E131F-00-00
Unavailable
24
PIN, DOWEL
8ND-E3516-00-00
Unavailable
25
SEAL, OIL 1
8ND-RAY12-00-00
Unavailable
26
SEAT, SPRING
8ND-E1317-00-00
Unavailable
27
PIN, JOINT
8ND-E1498-00-00
Unavailable
28
SPRING, COMPRESSIO
8ND-RAD06-00-00
Unavailable
29
GASKET
8ND-E1397-00-00
Unavailable
30
HOLDER 3
8ND-E131U-00-00
Unavailable
31
BOLT, FLANGE
8ND-RA127-00-00
Unavailable
32
BOLT, FLANGE
8ND-RA128-00-00
Unavailable
33
CABLE, PULLEY 2
8NV-E133F-00-00
Unavailable
34
O-RING, 2
8ND-RAF04-00-00
Unavailable
35
CABLE, PULLEY 1
8NV-E133E-00-00
Unavailable
36
CLAMP, 4
8ND-RAB06-00-00
Unavailable
37
TIE, CABLE-8.5/7.5/7.4
8JM-RAB01-00-00
Unavailable
38
CLIP, 1
8NV-RAC00-00-00
Unavailable
39
GASKET, CYLINDER H
8NV-E1181-00-00
Unavailable
40
GASKET ASSY
8NV-E1180-00-00
Unavailable
