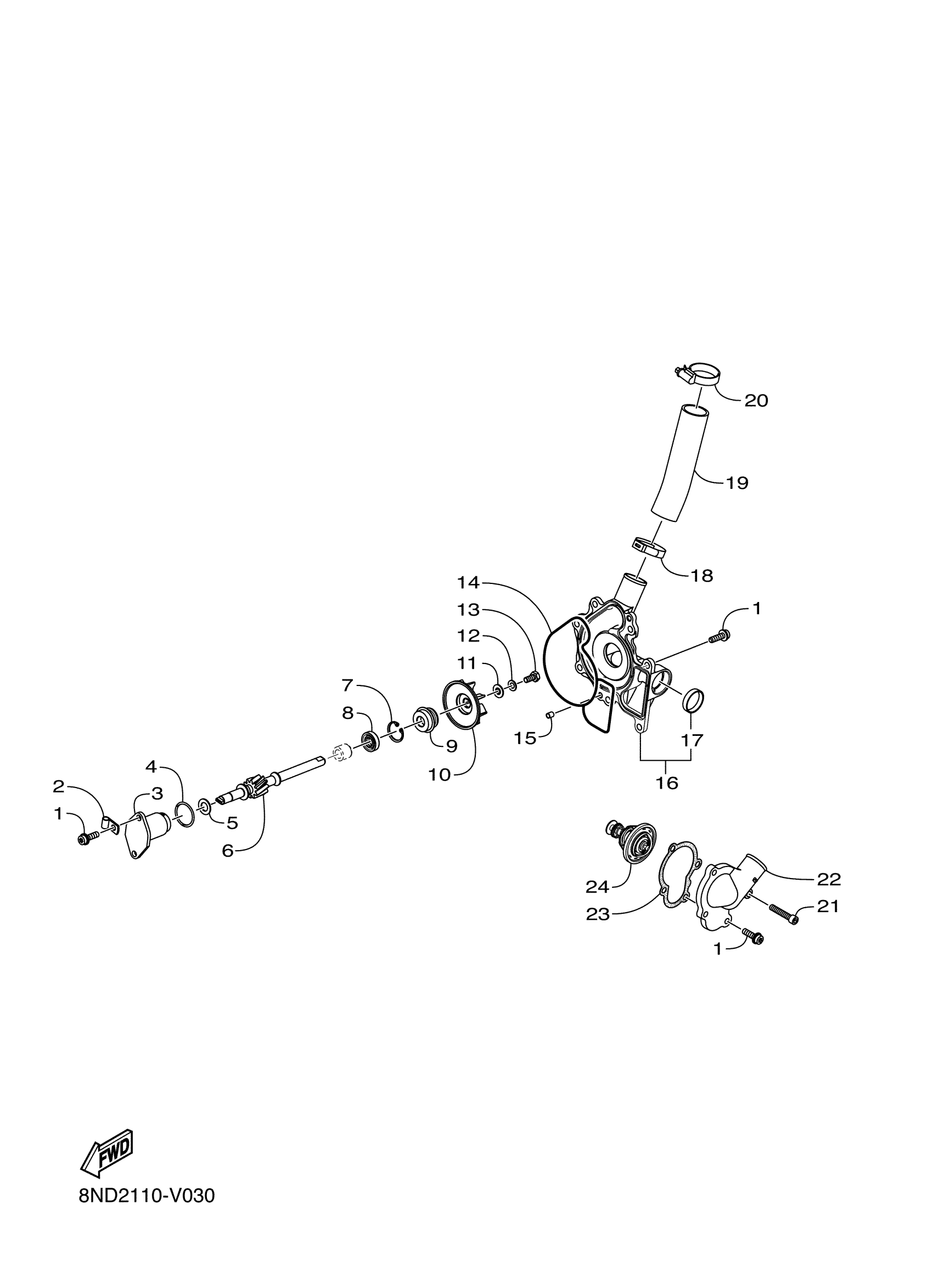

Yamaha TR6NTSLB (TRANSPORTER 600) 8ND2 2020 WATER PUMP Diagram

#

Description
Price

1

BOLT, FLANGE

8ND-RA180-00-00

Unavailable

2

CLAMP, 9

8ND-RAB11-00-00

Unavailable

3

RETAINER

8ND-E2406-00-00

Unavailable

4

O-RING, 4

8ND-RAF06-00-00

Unavailable

5

SHIM

8ND-E3147-00-00

$36.99

6

SHAFT, IMPELLER

8ND-E2458-10-00

$117.99

7

CIRCLIP, 2

8ND-RAH01-00-00

Unavailable

8

SEAL, OIL 2

8ND-RAY13-00-00

$10.49

9

SEAL, MECHANICAL 2

8ND-E245G-00-00

$45.99

10

IMPELLER

8ND-E2457-00-00

$59.99

11

WASHER

8ND-E2456-00-00

$11.49

12

WASHER 6

8ND-RA417-00-00

$10.49

13

BOLT, FLANGE

8ND-RA183-00-00

Unavailable

14

SEAL, WATER PUMP

8ND-E243M-00-00

Unavailable

15

PIN, DOWEL

8ND-E3517-00-00

$1.86

16

COVER ASSEMBLY

8ND-E240H-00-00

Unavailable

17

PLUG

8ND-E243L-00-00

Unavailable

18

CLAMP,26

8ND-RAB29-00-00

Unavailable

19

HOSE,3

8ND-E243F-00-00

Unavailable

20

CLAMP,26

8JP-RAB29-00-00

Unavailable

21

BOLT, FLANGE

8ND-RA184-00-00

Unavailable

22

COVER, THERMOSTAT

8ND-E2413-00-00

Unavailable

23

GASKET, COVER

8ND-E2414-00-00

Unavailable

24

THERMOSTAT ASSY

8ND-E2410-10-00

Unavailable
