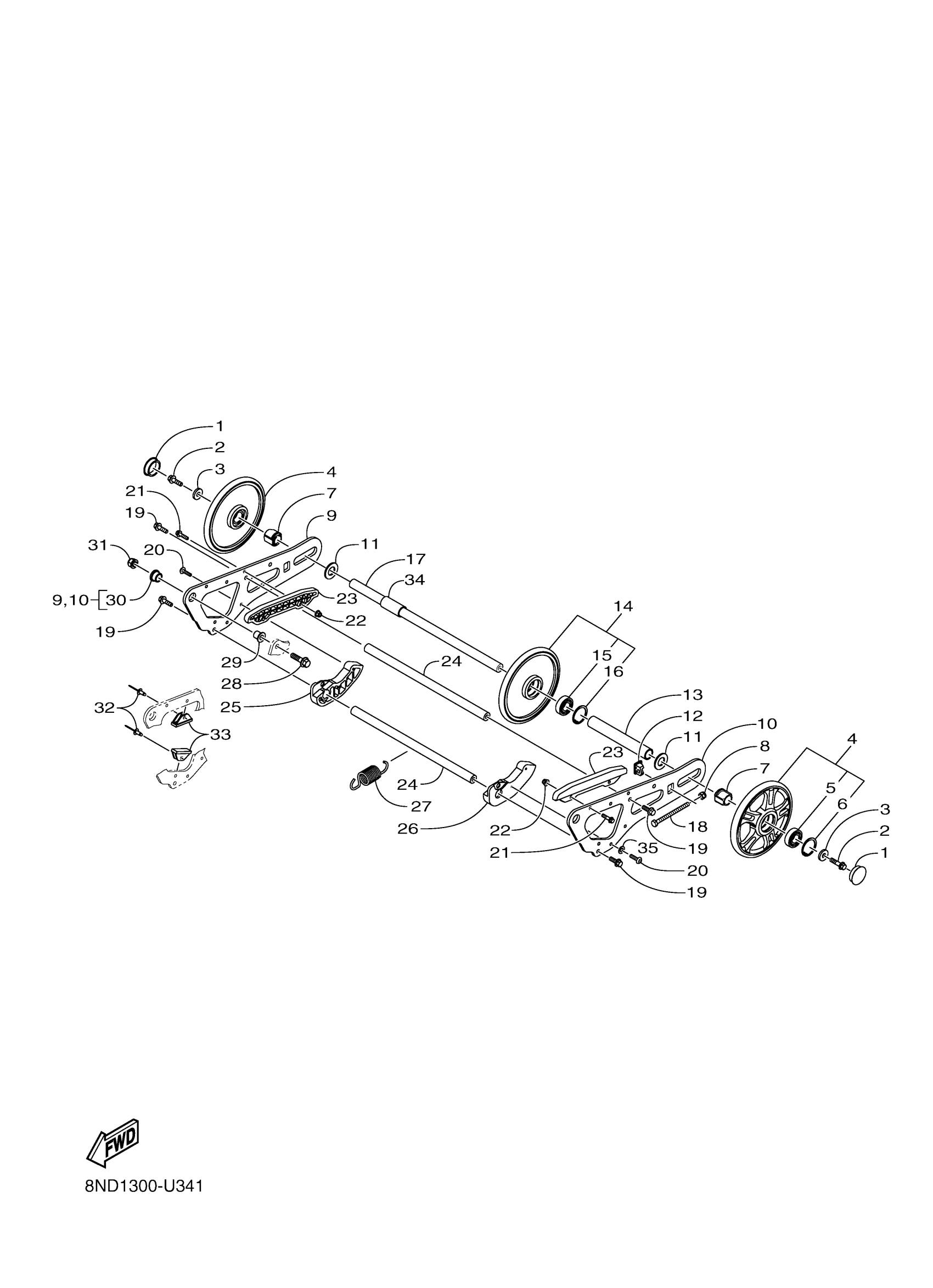

Yamaha TR6NTSLB (TRANSPORTER 600) 8ND2 2020 TRACK SUSPENSION 5 Diagram

#

Description
Price

1

CAP

8LN-G7377-00-00

Unavailable

2

BOLT, FLG. M10X1.2

8JP-RA198-00-00

$2.55

3

WASHER, M10X29

8JP-RA453-00-00

$1.86

4

GUIDE WHEEL ASSY

8LN-G7550-10-00

$61.99

5

BRNG,WHL-NSK CHINA6004-W/ENS G

8JM-RAY03-00-00

$25.99

6

CIRCLIP, 2

8JM-RAH01-00-00

$8.49

7

COLLAR

8ND-RA700-00-00

Unavailable

8

NUT, HEX. LOCKING

8JP-RA372-00-00

$0.54

9

FRAME, SLIDING 2

8ND-G7412-20-00

Unavailable

10

FRAME, SLIDING 1

8ND-G7411-20-00

Unavailable

11

WASHER, 9

8LN-RA466-00-00

$1.54

12

BRACKET 5

8JP-G7463-00-00

$4.46

13

COLLAR

8ND-RA701-00-00

Unavailable

14

GUIDE WHEEL ASSY

8LN-G7550-00-00

$61.99

15

BRNG,WHL-NSK CHINA6004-W/ENS G

8JM-RAY03-00-00

$25.99

16

CIRCLIP, 2

8JM-RAH01-00-00

$8.49

17

SHAFT 1

8ND-G7465-00-00

Unavailable

18

BOLT, HEX. M8X1.25

8JP-RA1B1-00-00

Unavailable

19

BOLT, FLG. M8X1.25

8JP-RA186-00-00

Unavailable

20

SCREW, TAPPING

8JP-RA294-00-00

Unavailable

21

BOLT, FLG. M6X1.0X

8JP-RA182-00-00

Unavailable

22

NUT,FLG. M6-1.0

8JM-RA322-00-00

Unavailable

23

ARM, PIVOT 3

8ND-G7333-00-00

Unavailable

24

SHAFT 2

8ND-G7475-00-00

Unavailable

25

SLIDER 2

8ND-G7442-00-00

Unavailable

26

SLIDER 1

8ND-G7441-00-00

Unavailable

27

SPRING, TENSION 1

8ND-RAD01-00-00

Unavailable

28

BOLT, FLANGE

8ND-RA116-00-00

Unavailable

29

BUSH

8ND-G7714-00-00

Unavailable

30

BUSH

8ND-G7713-00-00

Unavailable

31

LOCK NUT

8JP-RA378-01-00

Unavailable

32

RIVET, 1

8ND-RA510-00-00

Unavailable

33

STOPPER, CONT. 1

8ND-G745D-10-00

Unavailable

34

SPACER

8ND-G7341-00-00

Unavailable

35

WASHER,LOCK-1/4 EXT TOOTH TYP

8JM-RA407-00-00

Unavailable
