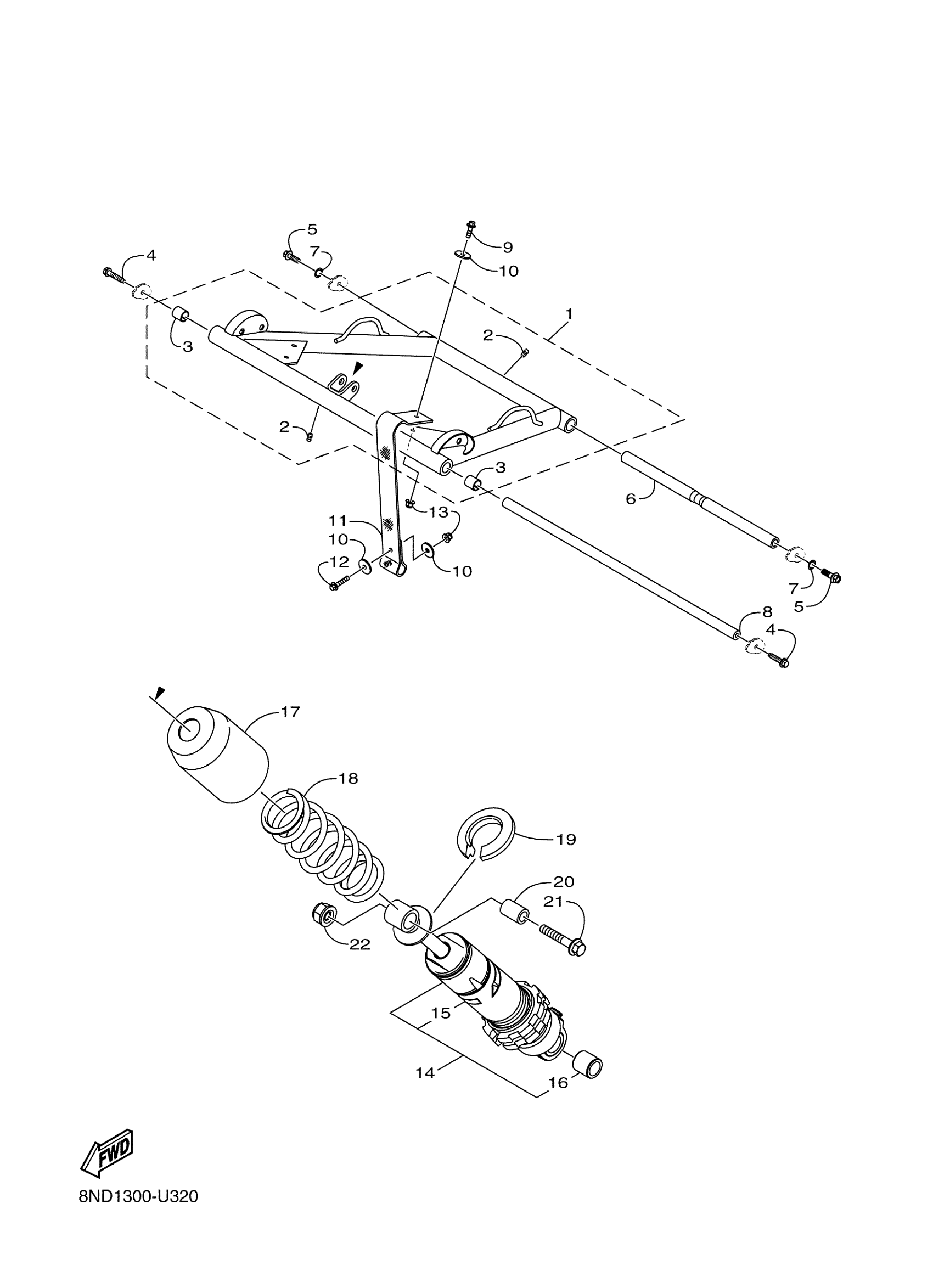

Yamaha TR6NTSLB (TRANSPORTER 600) 8ND2 2020 TRACK SUSPENSION 3 Diagram

#

Description
Price

1

ARM, PIVOT 1

8ND-G7331-00-00

Unavailable

2

NIPPLE, GREASE 1

8JP-RAL01-00-00

$2.44

3

BEARING, GARLOCK 10DU12

8JM-RA801-00-00

$12.49

4

BOLT, FLANGE

8ND-RA112-00-00

$14.99

5

BOLT, FLG. M10X1.2

8JP-RA199-00-00

$3.18

6

SHAFT 4

8JP-G7486-20-00

$63.99

7

WASHER, TOOTH M10

8JP-RA457-00-00

$0.43

8

SHAFT 4

8ND-G7486-00-00

$33.99

9

BOLT, FLG. M6X1.0X

8JP-RA181-00-00

$1.11

10

WASHER, 6.87X25.4X

8JP-RA450-00-00

$0.85

11

STOPPER

8ND-G6432-00-00

Unavailable

12

BOLT, FLG. M6X1.0X

8JP-RA183-00-00

$1.16

13

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

14

DAMPER SUB ASSY

8LN-F2201-00-00

$199.99

15

. LABEL, WARNING

8JP-F2259-70-00

Unavailable

16

COLLAR, 22.4

8JP-RA730-00-00

Unavailable

17

COVER

8JP-F2211-00-00

Unavailable

18

SPRING, 2

8JR-G7336-00-00

Unavailable

19

GUIDE, SPRING 1

8JP-F2214-00-00

Unavailable

20

COLLAR, 14

8JP-RA726-00-00

Unavailable

21

BOLT, FLG. M10X1.2

8JP-RA1A2-10-00

Unavailable

22

LOCK NUT

8JP-RA378-01-00

Unavailable
