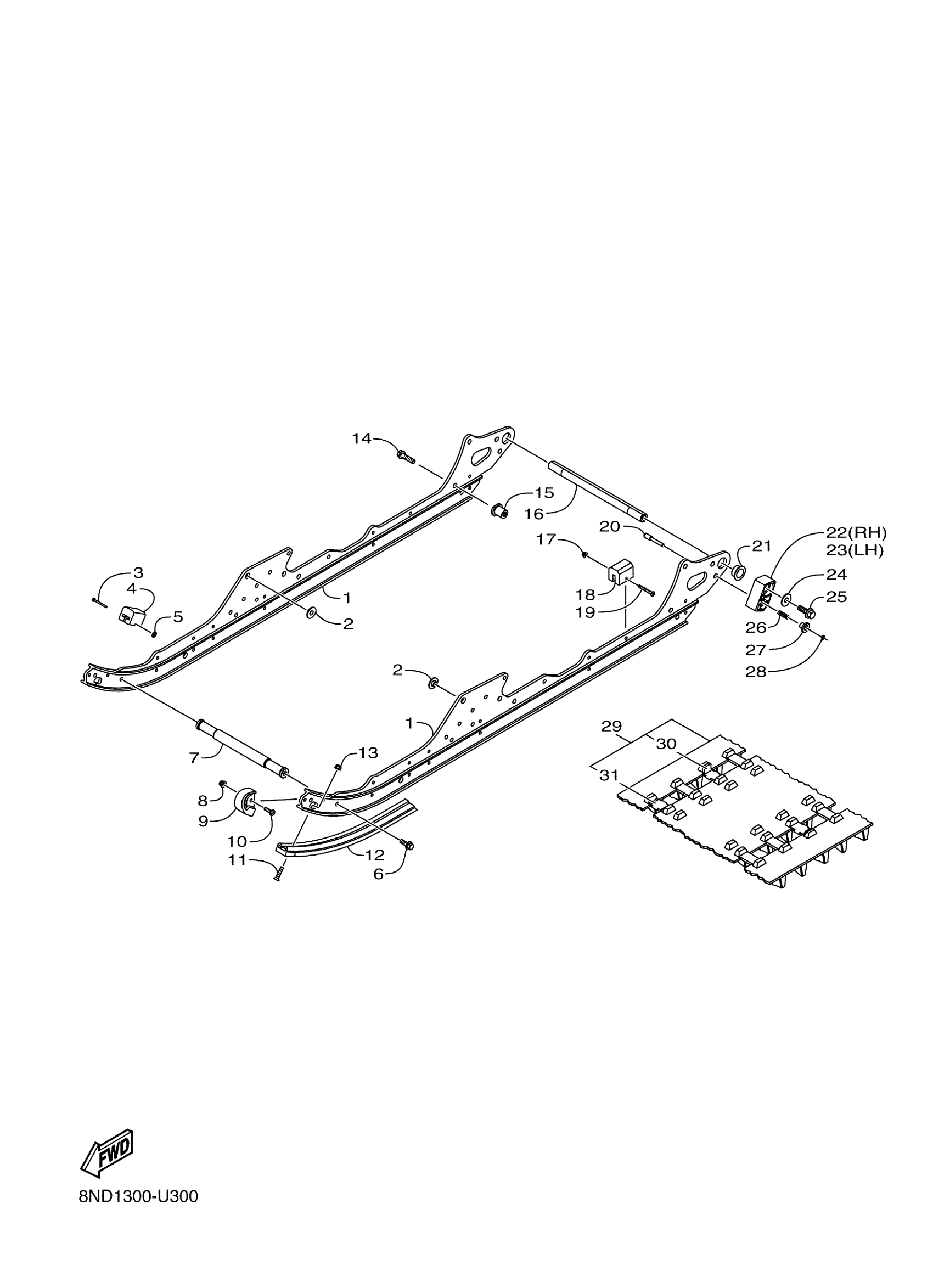

Yamaha TR6NTSLB (TRANSPORTER 600) 8ND2 2020 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

FRAME, SLIDING

8ND-G741A-20-00

$291.99

2

COLLAR, 13

8JP-RA725-00-00

$4.14

3

RIVET, SOLID - 1/8 X 1.50

8JM-RAY02-00-00

$1.06

4

PAD, SHOCK - RUBBER

8JM-G7456-00-00

$7.49

5

NUT, 0.125

8JP-RA346-00-00

$1.64

6

BOLT, FLG. M8X1.25

8JP-RA186-00-00

$0.54

7

SHAFT 3

8JP-G7485-00-00

$53.99

8

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

9

RUNNER, SLIDING 2

8JP-G7422-10-00

Unavailable

10

SCREW, M6X1.0X30

8JP-RA266-00-00

$1.43

11

SCREW,MACH-PHFH 1/4-20 X 1 1/8

8JM-RA206-00-00

$1.43

12

RUNNER, SLIDING 1

8ND-G7421-00-00

$40.99

13

NUT, FLG. LOCKING

8JP-RA357-00-00

$0.54

14

BOLT, FLG. M10X1.2

8JP-RA199-00-00

$3.18

15

NUT

8JP-G7368-00-00

$4.56

16

SHAFT, PIVOT

8ND-G7337-00-00

Unavailable

17

NUT, FLG. LOCKING

8JP-RA363-00-00

Unavailable

18

DAMPER 2

8JP-G7457-00-00

Unavailable

19

SCREW, M5X0.8X40

8JP-RA249-00-00

Unavailable

20

PIN

8ND-G5524-00-00

Unavailable

21

BUSH

8ND-G7538-00-00

Unavailable

22

STOPPER 2

8ND-G7496-00-00

Unavailable

23

STOPPER 1

8ND-G7495-00-00

Unavailable

24

WASHER, PLAIN

8JP-RA462-00-00

Unavailable

25

BOLT, FLG. M10X1.2

8JP-RA198-00-00

Unavailable

26

SPRING, COMPRESSIO

8ND-RAD02-00-00

Unavailable

27

PIN 1

8ND-G7449-00-00

Unavailable

28

CLIP,5

8ND-RAC06-00-00

Unavailable

29

TRACK ASSY

8MF-G7110-10-00

Unavailable

30

PLATE,RNFCMNT

8JR-G7113-00-00

Unavailable

31

METAL, SLIDE

8JP-G7115-00-00

Unavailable
