- TR6NTSLB (TRANSPORTER 600) 8ND2 2020
STEERING GATE

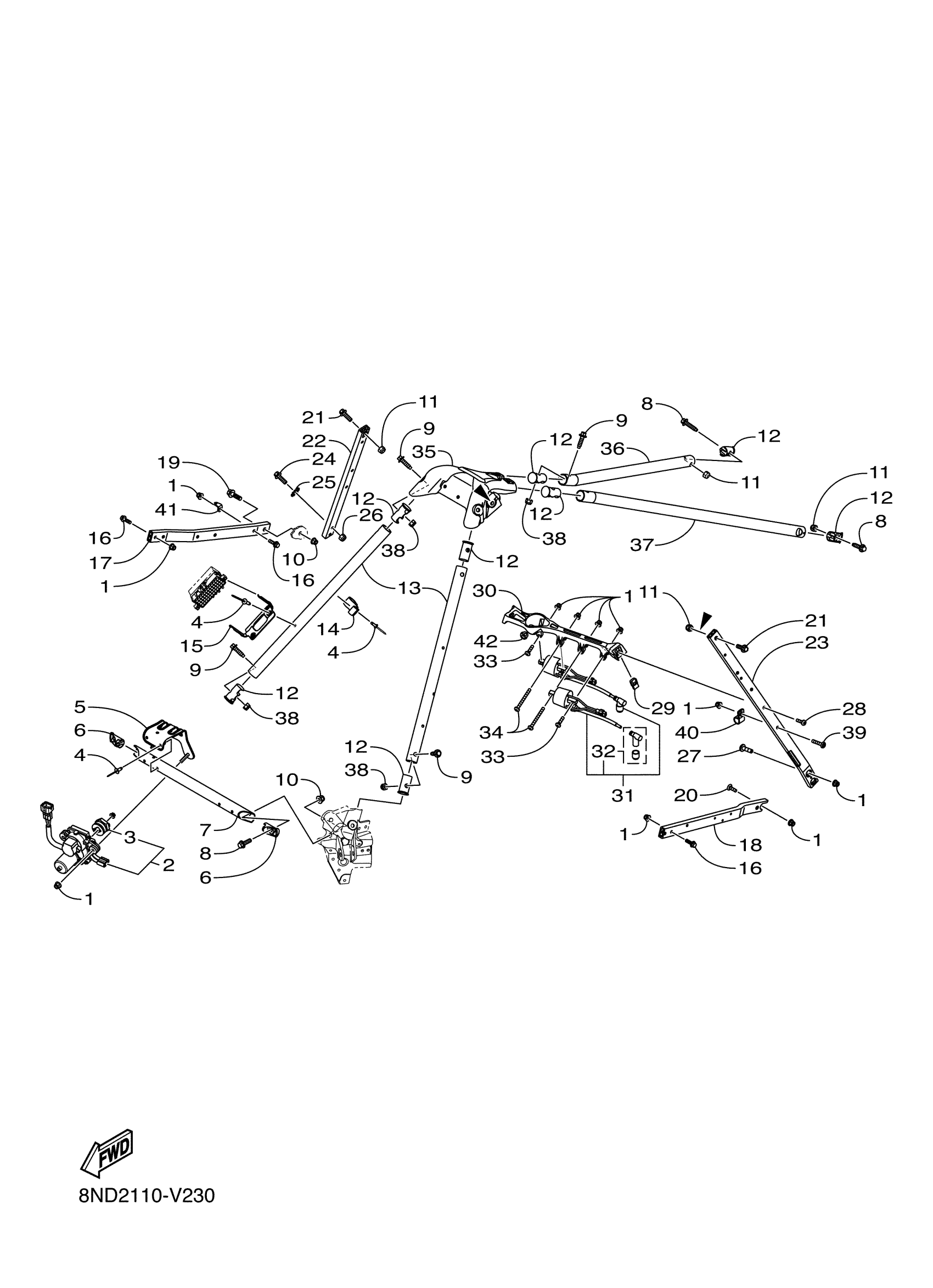

Yamaha TR6NTSLB (TRANSPORTER 600) 8ND2 2020 STEERING GATE Diagram
#
1
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
2
SERVO MOTOR ASSY
8ND-H5820-00-00
Unavailable
3
PULLEY 1
8ND-E132E-00-00
$93.99
4
RIVET, 9
8JP-RA518-00-00
$0.59
5
BRACKET 1
8ND-F3881-00-00
Unavailable
6
INSERT
8JP-F3775-00-00
Unavailable
7
SUPPORT, MEMBER
8ND-F2527-00-00
Unavailable
8
BOLT, FLG. M8X1.25
8JP-RA187-00-00
Unavailable
9
SCREW, 8
8JP-RA297-00-00
$3.08
10
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
$1.06
11
NUT, HEX. LOCKING
8JP-RA372-00-00
$0.54
12
CAP, MAIN PIPE
8JP-F111A-10-00
$3.98
13
PIPE, CROSS
8ND-F2162-00-00
Unavailable
14
CLAMP, 2
8ND-RAB01-00-00
Unavailable
15
BRACKET 1
8JP-E244E-00-00
Unavailable
16
BOLT, FLG. M6X1.0X
8JP-RA183-00-00
Unavailable
17
SUPPORT 2
8ND-F2568-00-00
Unavailable
18
SUPPORT 1
8ND-F2567-00-00
Unavailable
19
BOLT, FLANGE
8ND-RA177-00-00
Unavailable
20
BOLT
8ND-RA122-00-00
Unavailable
21
BOLT, FLG. M8X1.25
8JP-RA185-00-00
Unavailable
22
MEMBER, SIDE 1
8ND-F111J-00-00
Unavailable
23
MEMBER, SIDE 2
8ND-F111K-10-00
Unavailable
24
BOLT, FLG. M6X1.0X
8JP-RA182-00-00
Unavailable
25
WASHER,LOCK-1/4 EXT TOOTH TYP
8JM-RA407-00-00
Unavailable
26
NUT, LOCK 1
8JP-RA379-00-00
Unavailable
27
SCREW, M6X1.0X16
8JP-RA256-00-00
Unavailable
28
SCREW
8ND-RA200-00-00
Unavailable
29
NUT, CLIP M6
8JP-RA354-00-00
Unavailable
30
BRACKET 1
8ND-F3591-00-00
Unavailable
31
IGNITION COIL ASSY
8ND-H2310-00-00
Unavailable
32
PLUG CAP ASSY
8ND-H2370-00-00
Unavailable
33
SCREW
8ND-RA204-00-00
Unavailable
34
SCREW
8ND-RA205-00-00
Unavailable
35
GATE, STEERING
8KC-F3871-00-00
Unavailable
36
PIPE, CROSS, 7
8KC-F119E-00-00
Unavailable
37
PIPE CROSS 8
8KC-F119F-00-00
Unavailable
38
NUT, HEX. LOCKING
8JP-RA371-00-00
Unavailable
39
SCREW, M6X1.0X25
8JP-RA263-00-00
Unavailable
40
CLAMP, 21
8JP-RAB23-00-00
Unavailable
41
BRACKET
8ML-E4744-00-00
Unavailable
42
BUSH
8ND-F376B-00-00
Unavailable
