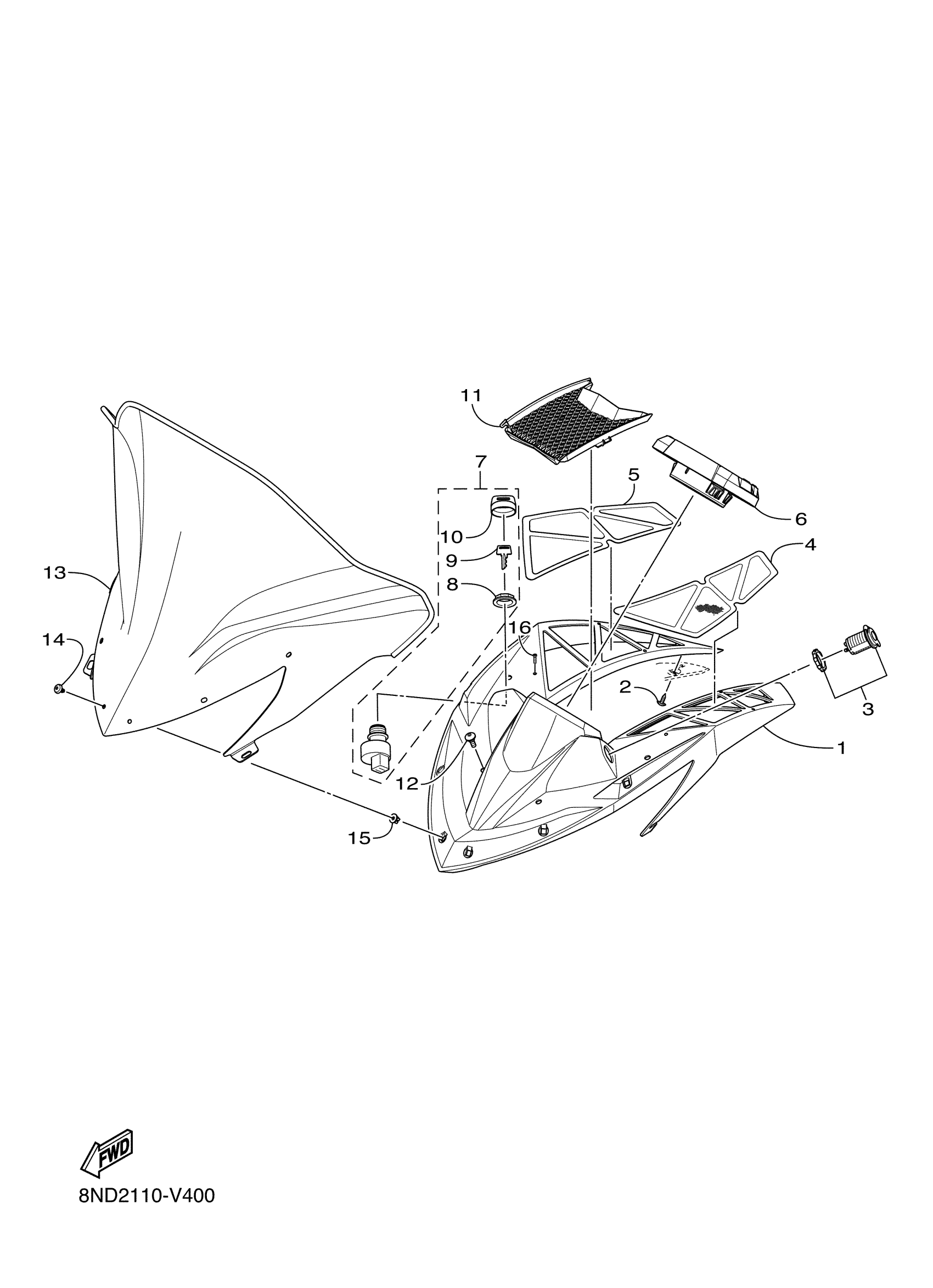

Yamaha TR6NTSLB (TRANSPORTER 600) 8ND2 2020 INSTRUMENT PANEL Diagram

PANEL, INSTRUMENT

8ND-K7712-20-00

Unavailable

SCREW, 10-12X3/4

8KC-RA290-00-00

$1.86

TERMINAL COMP.

8JP-H254B-10-00

$44.99

SCREEN, INTAKE DUC

8MT-K715D-10-00

Unavailable

SCREEN, INTAKE DUC

8MT-K715E-10-00

Unavailable

SPEEDOMETER ASSY

8ND-H3501-00-00

$575.99

MAIN SWITCH ASSY

8ND-H2510-00-00

Unavailable

. NUT, MAIN SWITCH

8JP-H2569-00-00

Unavailable

KEY (Y SERIESE, LE

8JP-H2511-00-00

$8.49

KEY (Z SERIES, RIG

8JP-H2511-10-00

$7.49

CAP, KEY

8JP-H2577-01-00

$18.99

LOUVER 1

8KC-K7131-00-00

Unavailable

SCREW, M6-1.0X18

8JP-RA253-00-00

$1.86

WINDSHIELD COMP.

8MH-K7210-00-00

Unavailable

SCREW, TAPPING M6X

8JP-RA280-10-00

$1.86

NUT, INSERT

8JP-RA373-00-00

Unavailable

SCREW, 8-18X0.875

8ML-RA286-00-00

Unavailable
