- TR6NTSLB (TRANSPORTER 600) 8ND2 2020
ENGINE BRACKET

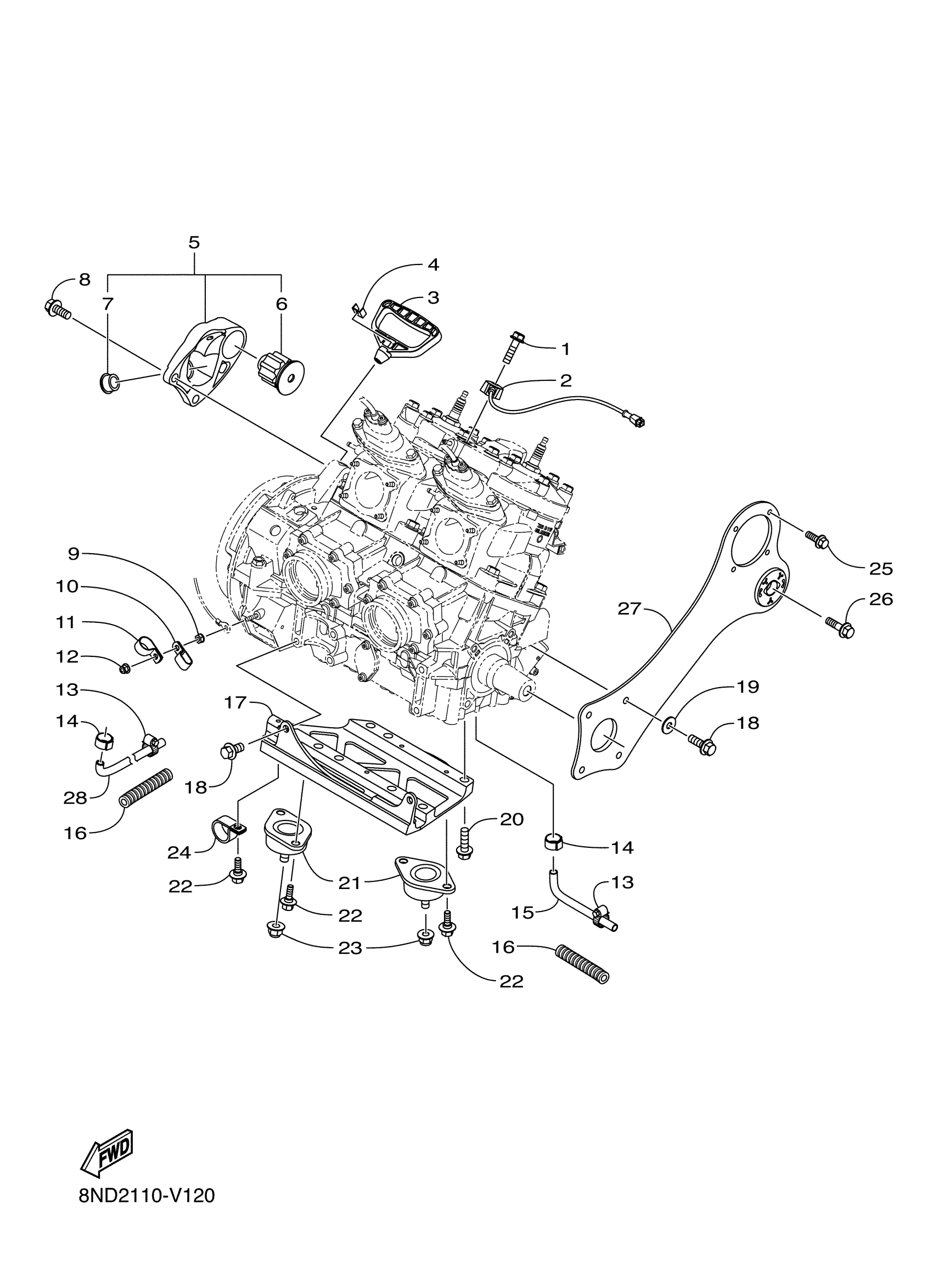

Yamaha TR6NTSLB (TRANSPORTER 600) 8ND2 2020 ENGINE BRACKET Diagram
#
1
BOLT, FLANGE
8ND-RA100-00-00
Unavailable
2
SENSOR, KNOCK
8ND-H5780-00-00
$91.99
3
HANDLE, STARTER
8ND-E5755-00-00
Unavailable
4
CAP, HANDLE
8ND-E5720-00-00
$1.86
5
ENGINE BRACKET COM
8ND-F1410-00-00
Unavailable
6
DAMPER 2
8ND-F1486-00-00
$60.99
7
BUSH, FLANGE
8ND-RA818-00-00
Unavailable
8
BOLT, FLANGE
8ND-RA117-00-00
Unavailable
9
NUT, WITH WASHER M
8JP-RA375-00-00
$0.48
10
CLAMP, 3
8ND-RAB05-00-00
Unavailable
11
CLAMP, 17
8JP-RAB19-00-00
Unavailable
12
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
13
CLAMP, HOSE #4 (6202)
8JM-RAA00-00-00
$3.50
14
CLAMP, 6
8JP-RAB08-00-00
$2.44
15
HOSE 2
8ND-E243E-00-00
Unavailable
16
MEMBER 4
8ND-F2824-00-00
Unavailable
17
PLATE, ENGINE MOUN
8ND-F145B-00-00
Unavailable
18
BOLT, FLANGE
8ND-RA118-00-00
Unavailable
19
WASHER
8ND-RA429-00-00
Unavailable
20
BOLT, FLANGE
8ND-RA121-00-00
Unavailable
21
DAMPER, RUBBER 1
8ND-F1485-00-00
Unavailable
22
SCREW
8ND-RA209-00-00
Unavailable
23
NUT, FLG. LOCKING
8JP-RA360-00-00
Unavailable
24
CLAMP, 3
8ML-RAB05-00-00
Unavailable
25
BOLT FLANGE M6X1.0X
8MF-RA183-00-00
Unavailable
26
BOLT, FLG. M8X1.25
8JP-RA186-00-00
Unavailable
27
STAY, ENGINE 1
8ND-F1315-00-00
Unavailable
28
HOSE 2
8ND-E243E-10-00
Unavailable
