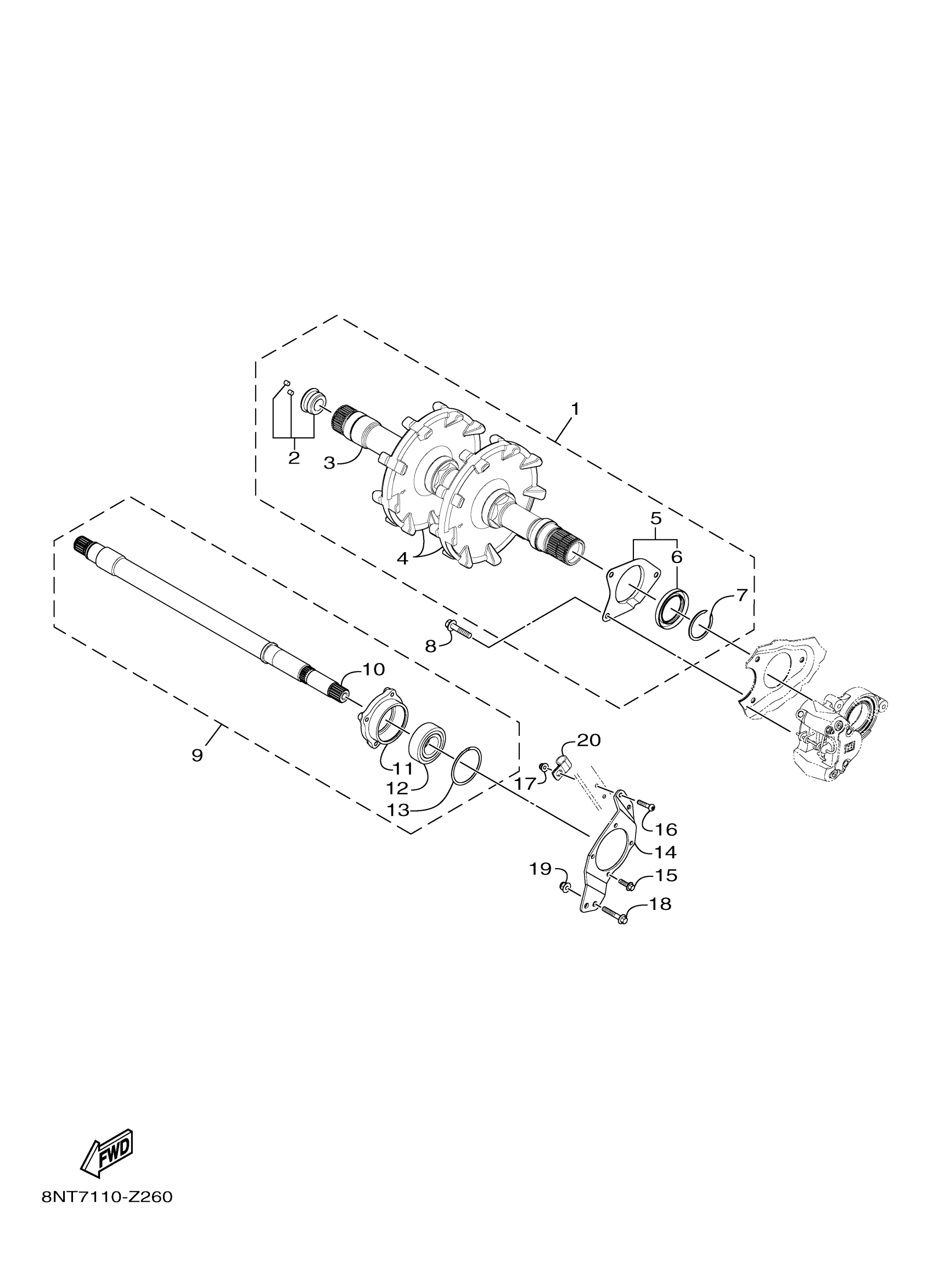

Yamaha TR4NTSR (TRANSPORTER LITE) 8NU9 2025 TRACK DRIVE 1 Diagram

#

Description
Price

1

FRONT AXLE SUB-ASS

8NU-G7501-00-00

$503.99

2

SENSOR, SPEED

8ND-H3755-00-00

Unavailable

3

AXLE, FRONT

8JP-G7511-10-00

$277.99

4

WHEEL, SPROCKET 1

8NU-G7531-00-00

Unavailable

5

CALIPER SEAL KIT

8JP-F5803-01-00

$20.99

6

SEAL, OIL 45X65X8

8JP-RAE02-10-00

$4.94

7

CIRCLIP, FS-0175

8JP-RAH07-00-00

$2.75

8

BOLT, FLG. M8X1.25

8JP-RA189-00-00

Unavailable

9

SECONDARY SHAFT CO

8NT-E7680-00-00

$231.99

10

SHAFT, SECONDARY

8NT-E7681-00-00

$169.99

11

HOUSING, BEARING

8NT-G7631-00-00

$36.99

12

BEARING

8NT-RAG07-00-00

$19.99

13

CIRCLIP, 1

8ND-RAH03-00-00

$4.19

14

STAY 1

8NT-G7565-00-00

$28.99

15

BOLT FLANGE M6X1.0X

8MF-RA183-00-00

Unavailable

16

BOLT, FLG. M6X1.0X

8JP-RA183-00-00

Unavailable

17

NUT,FLG. M6-1.0

8JM-RA322-00-00

Unavailable

18

SCREW, M8X1.25X37

8JP-RA274-00-00

Unavailable

19

NUT,HEX FLG-NYL LOCK M8X1.25

8JM-RA301-00-00

Unavailable

20

CLAMP, 21

8JP-RAB23-00-00

Unavailable
