2025 Yamaha Transporter Lite (TR4NTSR) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 2025 Yamaha Transporter Lite (TR4NTSR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

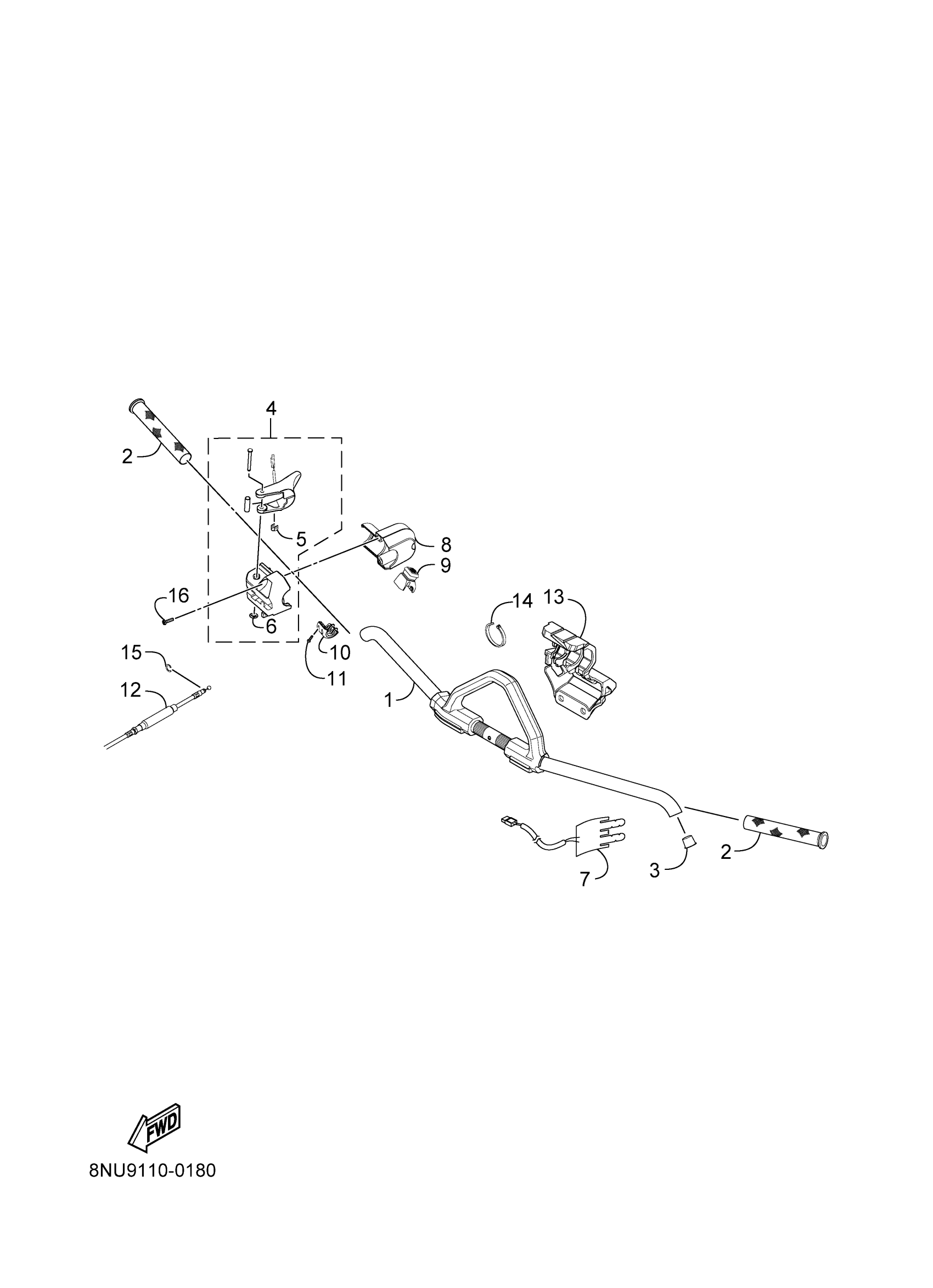

2025 Yamaha Transporter Lite (TR4NTSR) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

8JR-F6111-20-00

—
Out of stock

2

GRIP

8JR-F6241-00-00

1
Out of stock

3

NUT

8JR-F3856-10-00

—
Out of stock

4

LEVER HOLDER ASSY

8ND-H2720-10-00

1
Out of stock

5

CLIP, 1

8JP-RAC10-10-00

—
Out of stock

6

NUT, 0.125

8JP-RA346-00-00

1
Out of stock

7

GRIP,WARMER

8NT-F626A-10-00

—
Out of stock

8

LEVER HOLDER ASSY

8MY-H2710-00-00

1
Out of stock

9

STOP SWITCH

8ND-H6284-00-00

1
Out of stock

10

CLAMP

8MY-H2544-00-00

1
Out of stock

11

SCREW

8MY-RA200-00-00

1
Out of stock

12

WIRE, THROTTLE 1

8NT-F6311-00-00

—
Out of stock

13

PROTECTOR, HANDLEB

8MF-F6124-00-00

—
Out of stock

14

TIE, CABLE-8.5/7.5/7.4

8JM-RAB01-00-00

—
Out of stock

14

CLAMP, 1 (4-INCH)

8JP-RAB03-00-00

—
Out of stock

15

RING RETAINING

8JM-RAH02-00-00

—
Out of stock

16

SCREW, 8-18X0.875

8ML-RA286-00-00

—
Out of stock
