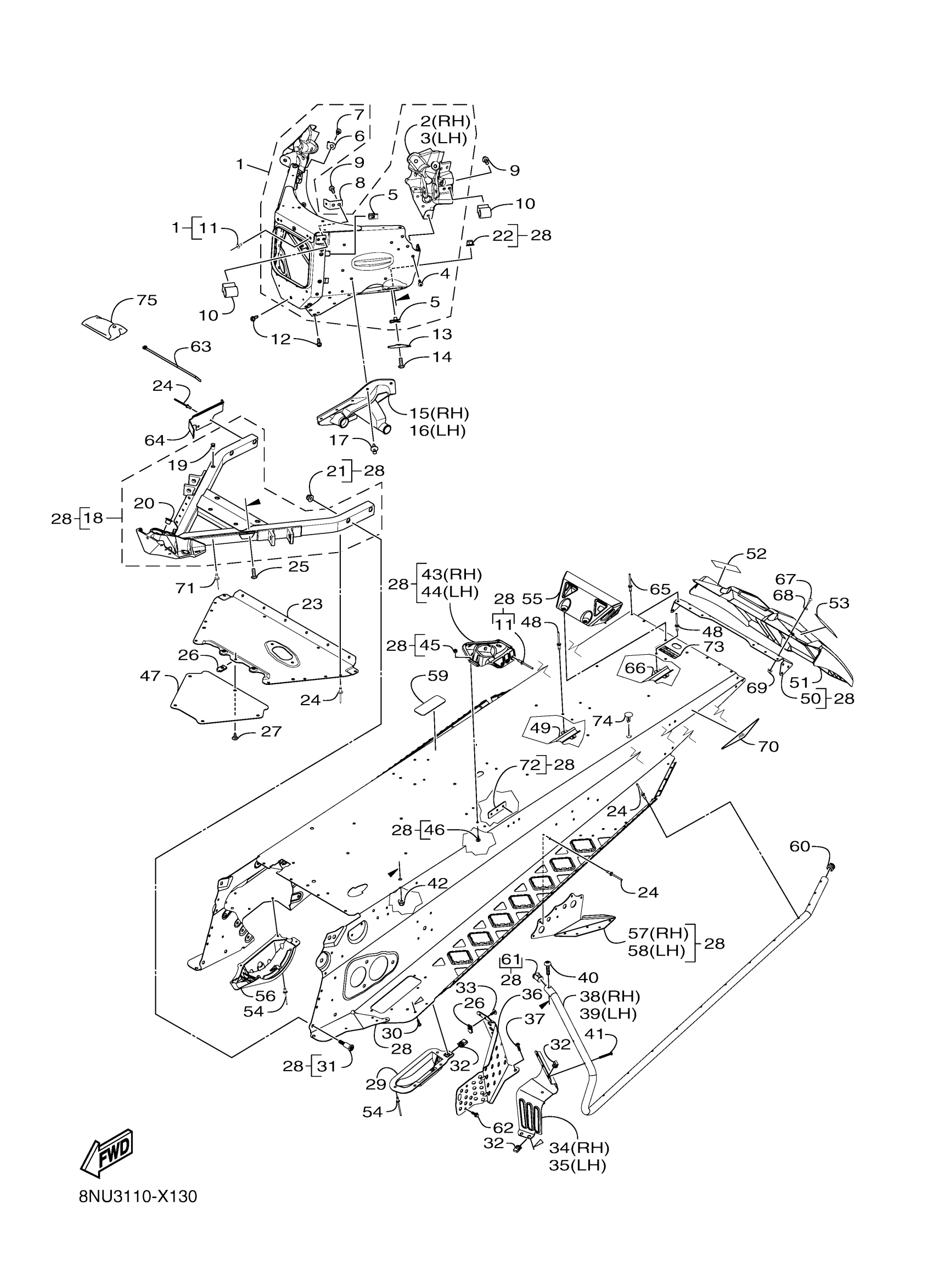

2025 Yamaha Transporter Lite (TR4NTSR) Frame Diagram
Find the part on the Frame diagram for your 2025 Yamaha Transporter Lite (TR4NTSR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
14
SCREW, 1
8KG-RA235-00-00
1
Out of stock
35
REINFORCEMENT SUB FRAME FR 1
8JW-F1995-40-00
1
Out of stock
38
REINFORCEMENT, FRAME
8NU-F192E-00-00
1
Out of stock
44
. BRACKET, MEMBER 1
8JW-F115L-00-00
1
Out of stock
45
. NUT, HEX LOCKING
8JP-RA370-00-00
1
Out of stock
46
SCREW, M5X0.8X12
8JP-RA241-00-00
—
Out of stock
67
SCREW, 5
8LJ-RA239-00-00
1
Out of stock
70
LABEL 1
8JP-F151A-10-00
1
Out of stock
73
LABEL, PULLING LOAD LIMIT
8NU-F817S-00-00
1
Out of stock
