TRACK SUSPENSION 1

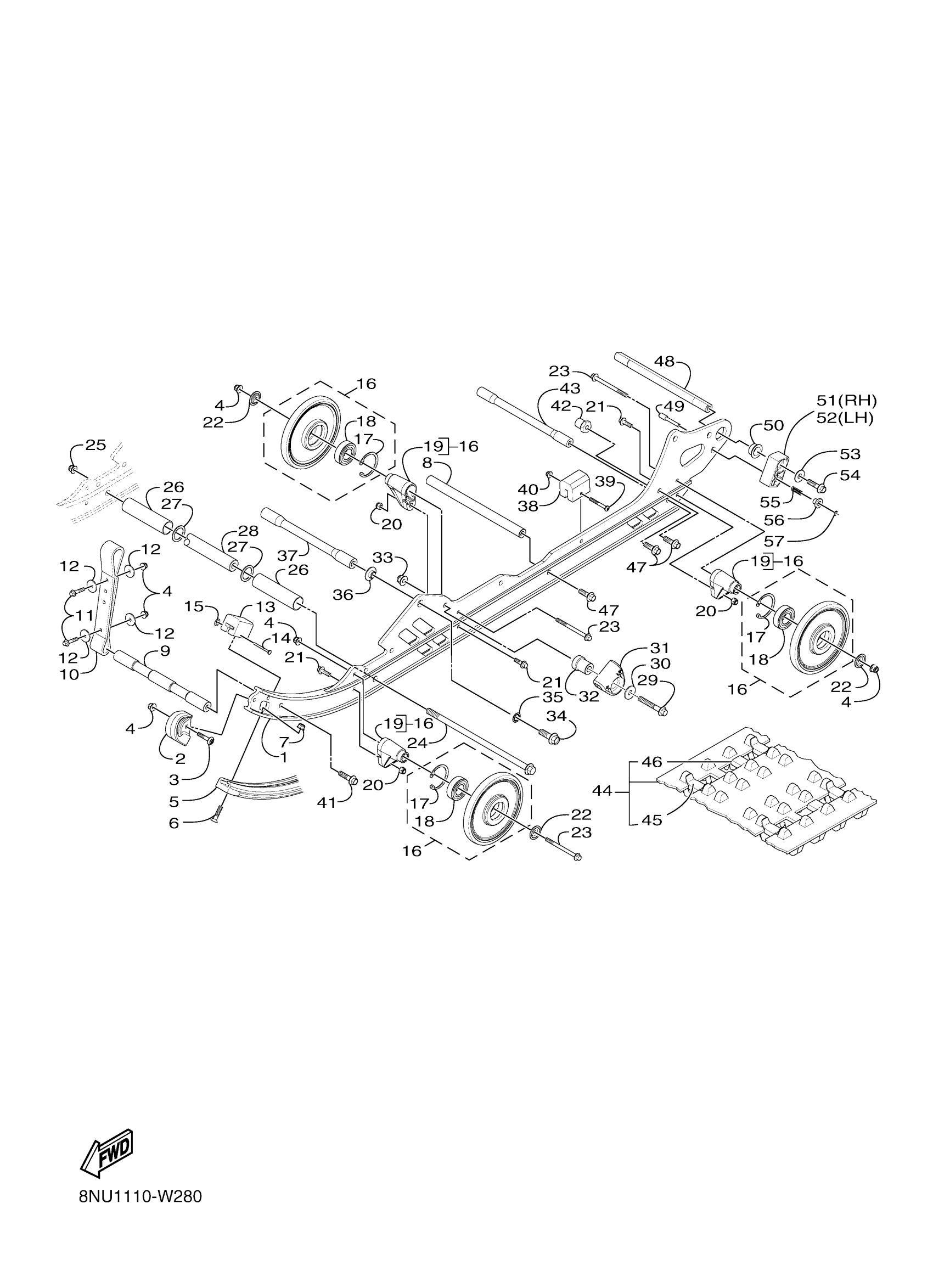

Yamaha TR4NTRB (TRANSPORTER LITE) 8NU7 2024 TRACK SUSPENSION 1 Diagram
#
1
FRAME, SLIDING
8NU-G741A-30-00
Unavailable
2
RUNNER, SLIDING 2
8JP-G7422-10-00
Unavailable
3
SCREW, M6X1.0X30
8JP-RA266-00-00
$1.43
4
NUT,FLG. M6-1.0
8JM-RA322-00-00
$1.07
5
RUNNER, SLIDING 1
8NU-G7421-00-00
$55.99
6
SCREW,MACH-PHFH 1/4-20 X 1 1/8
8JM-RA206-00-00
$1.43
7
NUT, FLG. LOCKING
8JP-RA357-00-00
$0.54
8
SHAFT, PIVOT
8JR-G7337-10-00
$21.99
9
SHAFT 3
8JR-G7485-00-00
Unavailable
10
STOPPER 1
8KG-G7495-10-00
Unavailable
11
BOLT, FLG. M6X1.0X
8JP-RA183-00-00
$1.16
12
WASHER, 6.87X25.4X
8JP-RA450-00-00
$0.85
13
PAD, SHOCK - RUBBER
8JM-G7456-00-00
$7.49
14
RIVET, SOLID - 1/8 X 1.50
8JM-RAY02-00-00
$1.06
15
NUT, 0.125
8JP-RA346-00-00
$1.64
16
SUSPENSION WHEEL A
8JR-G7310-20-00
Unavailable
17
CIRCLIP, 2
8JM-RAH01-00-00
Unavailable
18
BRNG,WHL-NSK CHINA6004-W/ENS G
8JM-RAY03-00-00
Unavailable
19
BRACKET 7
8JP-G7419-10-00
Unavailable
20
NUT, LOCK 1
8JP-RA379-00-00
Unavailable
21
BOLT, FLANGE 2
8JP-RA1B6-00-00
Unavailable
22
WASHER, 9
8JP-RA466-00-00
Unavailable
23
BOLT, FLANGE 1
8JP-RA1B5-00-00
Unavailable
24
BOLT, FLG. M10-1.2
8JP-RA194-10-00
Unavailable
25
NUT, FLG. LOCKING
8JP-RA360-00-00
Unavailable
26
COLLAR, 11
8JP-RA723-00-00
Unavailable
27
WASHER, 0.890X1.19
8JP-RA437-00-00
Unavailable
28
COLLAR, 22.2
8JP-RA729-00-00
Unavailable
29
BOLT, HEXAGON
8JP-RA1B7-00-00
Unavailable
30
WASHER, 9.12X25.40
8JP-RA452-00-00
Unavailable
31
HOOK 1
8JP-G7446-00-00
Unavailable
32
COLLAR
8JP-G7319-00-00
Unavailable
33
NUT,HEX FLG-NYL LOCK M8X1.25
8JM-RA301-00-00
Unavailable
34
BOLT, FLG. M10X1.2
8JP-RA199-00-00
Unavailable
35
WASHER, TOOTH M10
8JP-RA457-00-00
Unavailable
36
COLLAR, 13
8JP-RA725-00-00
Unavailable
37
SHAFT 4
8JP-G7486-10-00
Unavailable
38
DAMPER 2
8JP-G7457-00-00
Unavailable
39
SCREW, M5X0.8X40
8JP-RA249-00-00
Unavailable
40
NUT, FLG. LOCKING
8JP-RA363-00-00
Unavailable
41
BOLT, FLG. M8X1.25
8JP-RA189-00-00
Unavailable
42
NUT
8JR-G7368-00-00
Unavailable
43
SHAFT 6
8JR-G7488-00-00
Unavailable
44
TRACK ASSY
8NN-G7110-00-00
Unavailable
45
PLATE, REINFORCEME
8JP-G7113-00-00
Unavailable
46
METAL, SLIDE
8JP-G7115-00-00
Unavailable
47
BOLT, FLG. M8X1.25
8JP-RA186-00-00
Unavailable
48
SHAFT, PIVOT
8ND-G7337-00-00
Unavailable
49
PIN
8ND-G5524-00-00
Unavailable
50
BUSH
8ND-G7538-00-00
Unavailable
51
STOPPER 2
8ND-G7496-00-00
Unavailable
52
STOPPER 1
8ND-G7495-00-00
Unavailable
53
WASHER, PLAIN
8JP-RA462-00-00
Unavailable
54
BOLT, FLG. M10X1.2
8JP-RA198-00-00
Unavailable
55
SPRING, COMPRESSIO
8ND-RAD02-00-00
Unavailable
56
PIN 1
8ND-G7449-00-00
Unavailable
57
CLIP,5
8ND-RAC06-00-00
Unavailable
