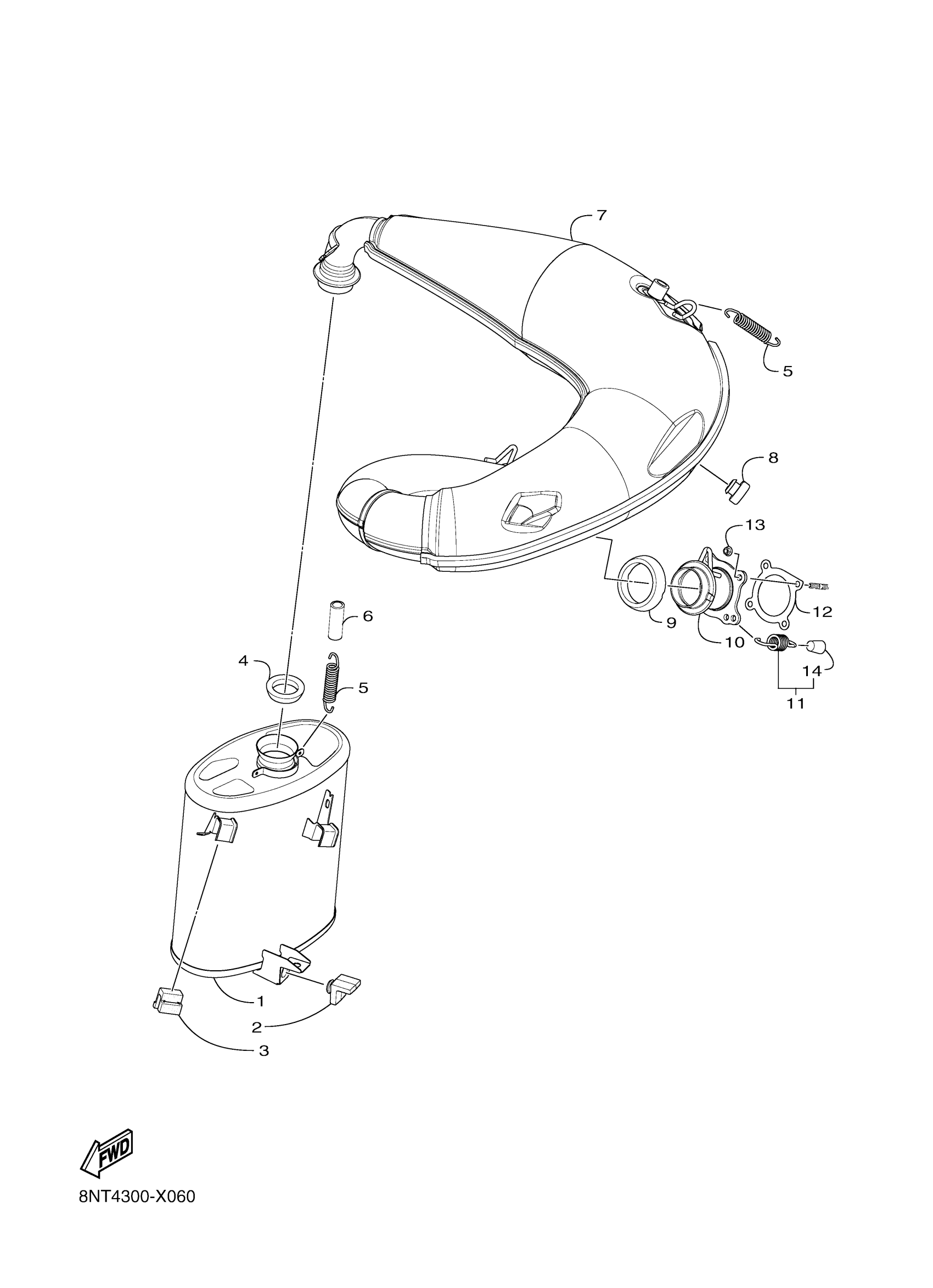

Yamaha TR4NTRB (TRANSPORTER LITE) 8NU7 2024 EXHAUST Diagram

#

Description
Price

1

SILENCER ASSY

8NV-E4750-00-00

$1,052.99

2

GROMMET

8ND-E5357-00-00

$7.98

3

GROMMET

8ND-E5375-00-00

$24.18

4

GASKET, MUFFLER

8ND-E4714-00-00

$51.17

5

SPRING, 3

8ND-RAD14-00-00

$7.71

6

DAMPER

8NT-E4409-00-00

$5.68

7

EXHAUST PIPE ASSY

8NT-E4610-00-00

Unavailable

8

GROMMET

8JP-E5357-00-00

$12.04

9

GASKET, EXHAUST PI

8NT-E4623-00-00

$32.45

10

PIPE, EXHAUST 3

8NT-E4631-10-00

Unavailable

11

SPRING, MUFFLER

8NS-E4773-00-00

$7.18

12

GASKET, EXHAUST PI

8NV-E4613-00-00

$25.71

13

NUT, HEXAGON

8ND-RA366-00-00

Unavailable

14

SPRING, MUFFLER

8NS-E4773-00-00

$7.18
