- TR4NTPB (TRANSPORTER LITE) 8NU5 2023
TRACK SUSPENSION 2

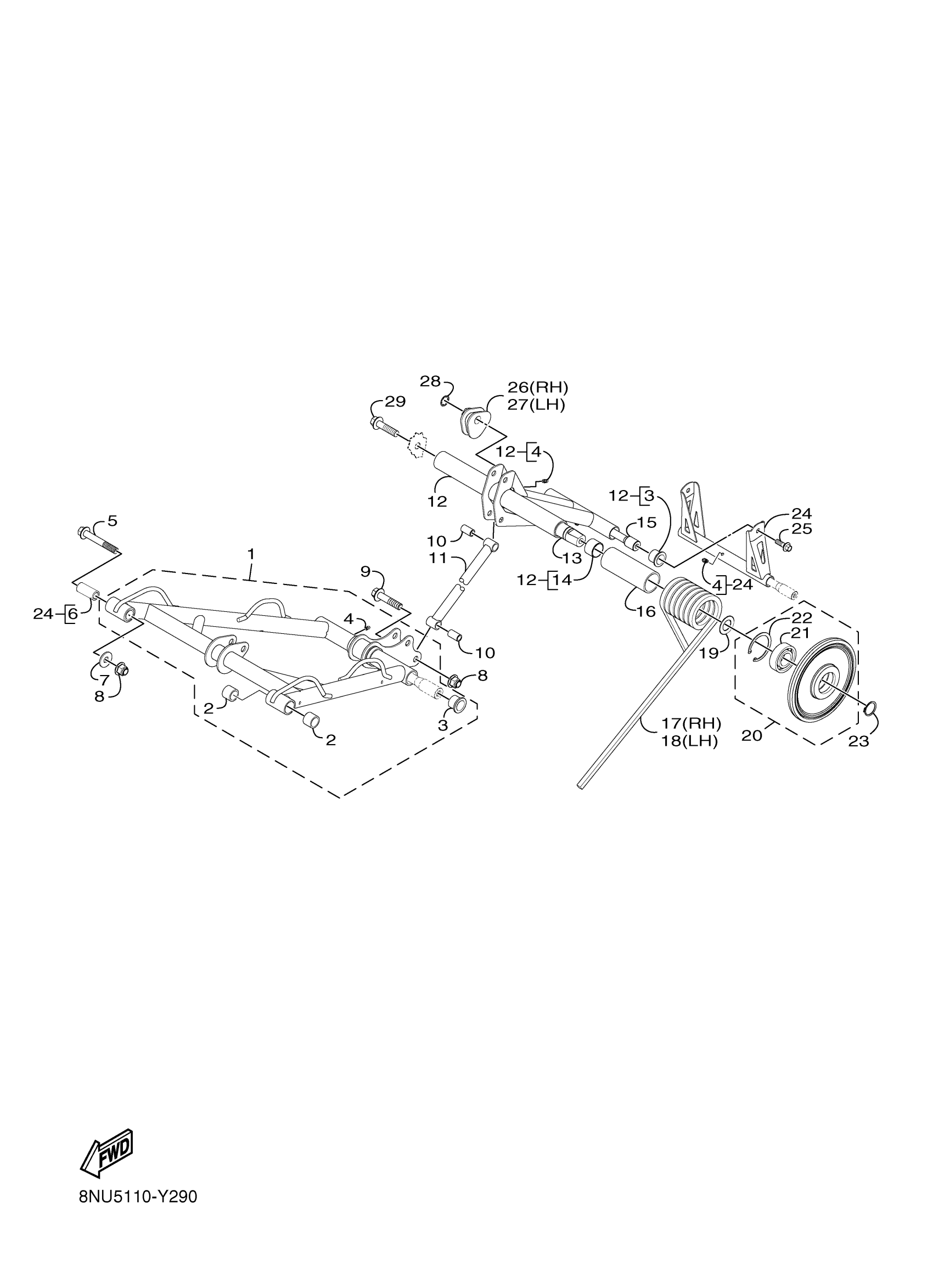

Yamaha TR4NTPB (TRANSPORTER LITE) 8NU5 2023 TRACK SUSPENSION 2 Diagram
#
1
ARM, PIVOT 1
8NN-G7331-00-00
$366.99
2
BUSH, 5
8JP-RA814-00-00
$4.46
3
BUSH, 0.751
8JP-RA812-00-00
$4.35
4
NIPPLE, GREASE 1
8JP-RAL01-00-00
$2.44
5
SCREW, 7
8JP-RA296-00-00
$3.88
6
COLLAR, 16
8JP-RA733-00-00
Unavailable
7
WASHER, PLAIN
8JP-RA462-00-00
$0.74
8
NUT, FLG. LOCKING
8JP-RA360-00-00
$1.16
9
BOLT, FLG. M10X1.2
8JP-RA1A2-10-00
Unavailable
10
COLLAR, 12
8JP-RA724-00-00
$5.60
11
ROD, RELAY
8JR-G7494-00-00
Unavailable
12
ARM, PIVOT 2
8NT-G7332-00-00
$168.99
13
SHAFT 2
8JR-G7475-30-00
Unavailable
14
BUSH, 6
8JP-RA815-00-00
Unavailable
15
SHAFT 5
8JR-G7487-10-00
$40.99
16
PROTECTOR
8NT-G7445-00-00
Unavailable
17
SPRING, REAR 2
8NU-G7474-00-00
Unavailable
18
SPRING, REAR 1
8NU-G7473-00-00
Unavailable
19
WASHER, 25X36X1
8JP-RA446-00-00
Unavailable
20
WHEEL,SUSPENSION 2
8JR-G7312-00-00
Unavailable
21
BEARING, 3
8JP-RAG08-00-00
Unavailable
22
CIRCLIP, 4
8JP-RAH10-00-00
Unavailable
23
CIRCLIP, 5
8JP-RAH11-00-00
Unavailable
24
ARM, PIVOT 2
8NU-G7332-10-00
Unavailable
25
BOLT, FLG. M8X1.25
8JP-RA186-00-00
Unavailable
26
BLOCK, SPRING-ADJUSTER-RH
8JM-G7448-00-00
Unavailable
27
BLOCK, SPRING-ADJUSTER-LH
8JM-G7447-00-00
Unavailable
28
RING,RETAINING-ADJ BLOCK 9/16
8JM-RA315-00-00
Unavailable
29
BOLT, FLG. M10X1.2
8JP-RA1A0-00-00
Unavailable
