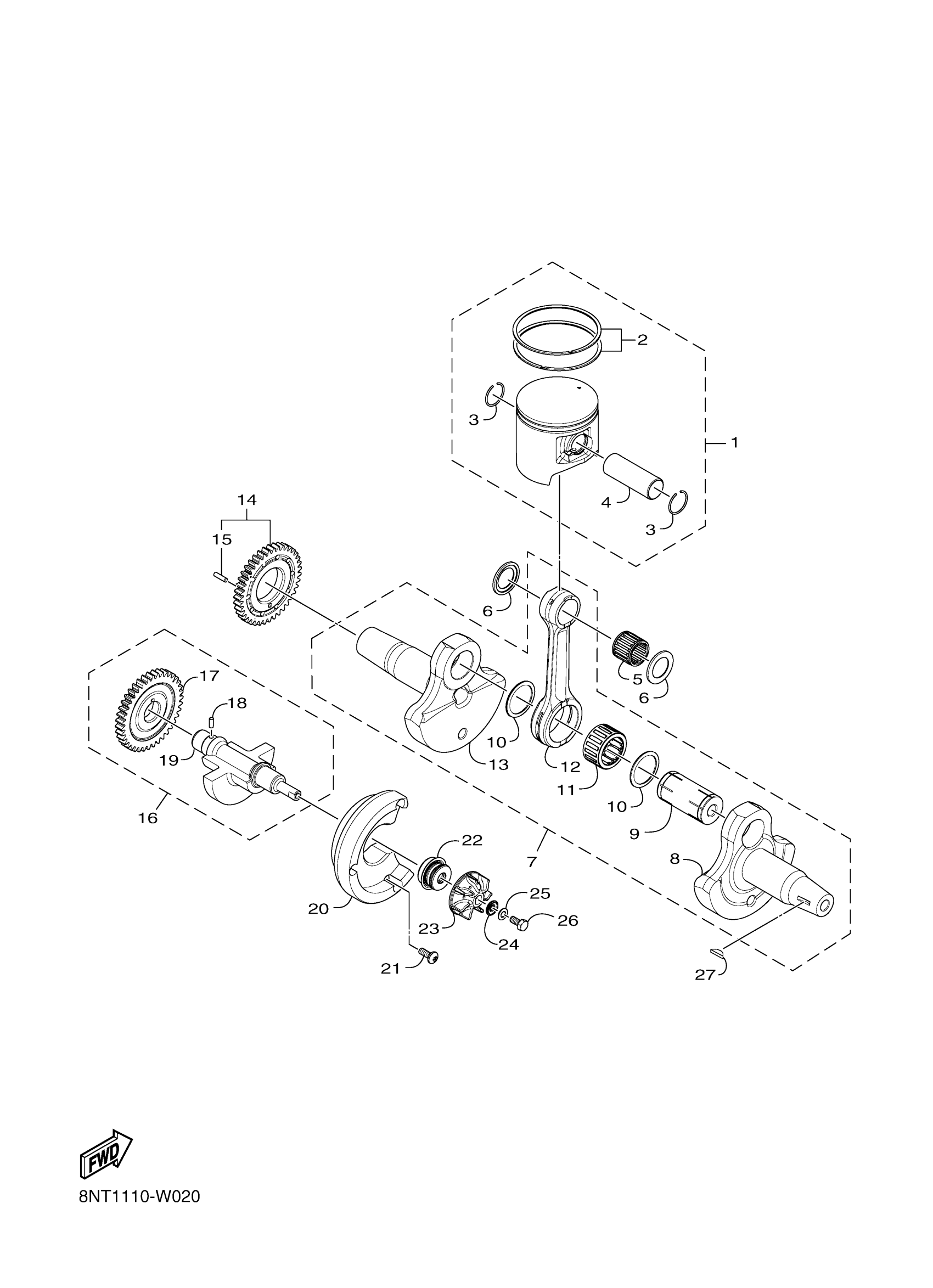

Yamaha TR4NTPB (TRANSPORTER LITE) 8NU5 2023 CRANKSHAFT & PISTON Diagram

#

Description
Price

1

PISTON ASSY (STD)

8NV-E1630-00-00

$269.99

2

PISTON RING SET (S

8NV-E1603-00-00

Unavailable

3

CLIP, 2

8NV-RAC01-00-00

$33.99

4

PIN, PISTON

8NV-E1633-00-00

$53.99

5

BEARING

8NT-RAG03-00-00

Unavailable

6

SHIM

8NV-E3147-00-00

Unavailable

7

CRANKSHAFT ASSY

8NT-E1400-00-00

$1,222.99

8

CRANK 1

8NT-E1412-00-00

Unavailable

9

PIN, CRANK 1

8NT-E1681-00-00

$40.99

10

SHIM, CRANK 1

8NV-E1561-00-00

Unavailable

11

BEARING

8NT-RAG05-00-00

$55.99

12

ROD, CONNECTING

8NV-E1651-10-00

Unavailable

13

CRANK 2

8NT-E1422-00-00

Unavailable

14

GEAR, CRANK SHAFT

8NT-E1434-00-00

$69.99

15

PIN, 2

8NT-RAK02-00-00

Unavailable

16

BALANCER WEIGHT GE

8NT-E1530-00-00

Unavailable

17

GEAR, BALANCE WEIG

8NT-E1531-00-00

Unavailable

18

PIN, 1

8ND-RAK01-00-00

Unavailable

19

METAL, BALANCE WEI

8NT-E1413-00-00

Unavailable

20

SPACER

8NT-E1445-00-00

Unavailable

21

SCREW, M6X1.0X16

8JP-RA255-00-00

Unavailable

22

SEAL, MECHANICAL 2

8ND-E245G-00-00

Unavailable

23

IMPELLER

8NT-E2457-00-00

Unavailable

24

WASHER

8ND-E2456-00-00

Unavailable

25

WASHER 6

8ND-RA417-00-00

Unavailable

26

BOLT, FLANGE

8ND-RA183-00-00

Unavailable

27

KEY, WOODRUFF

8ND-E1546-00-00

Unavailable
