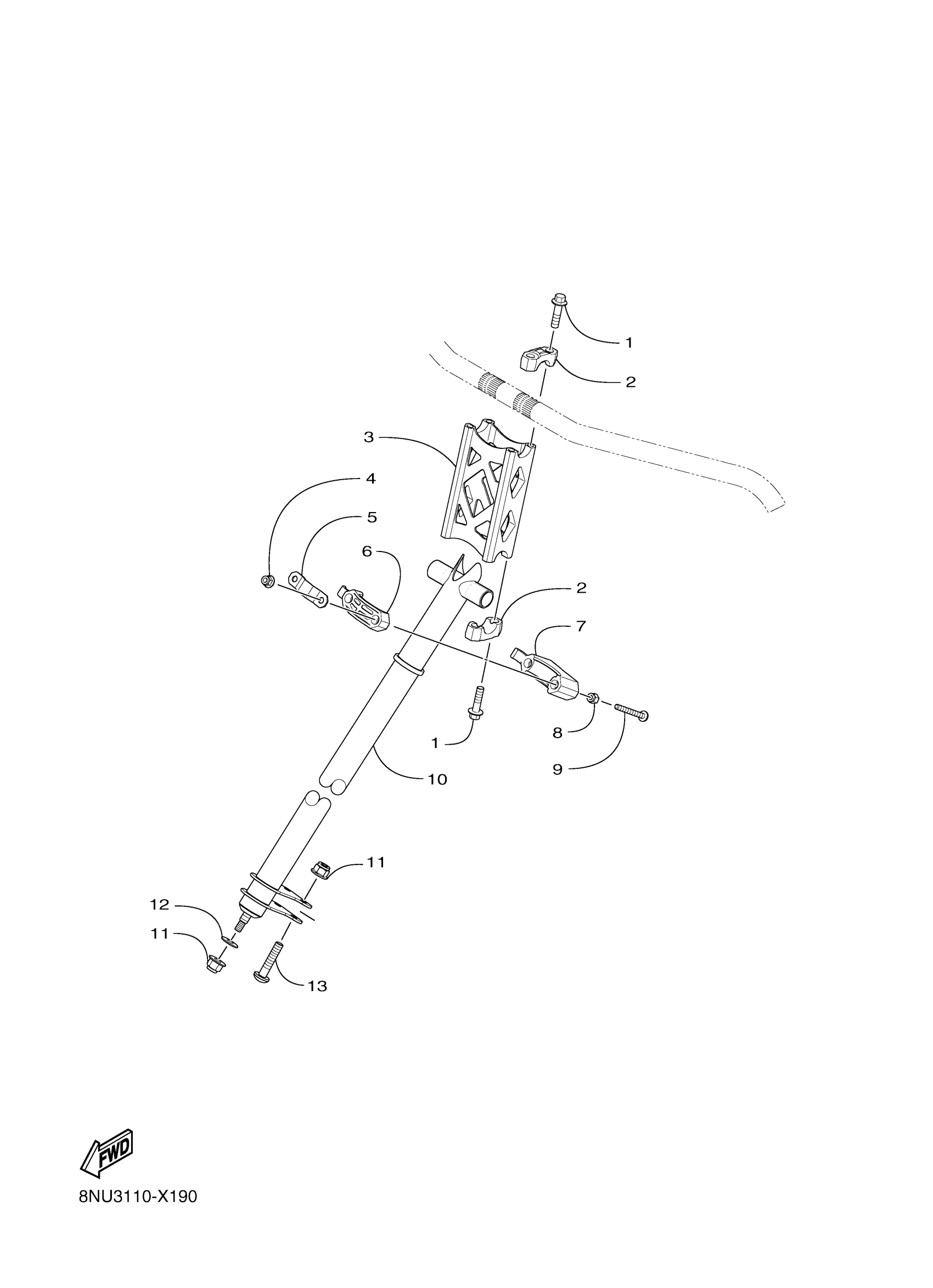

Yamaha TR4NTNB (TRANSPORTER LITE) 8NU3 2022 STEERING 2 Diagram

BOLT, FLG. M8X1.25

8JP-RA188-00-00

Unavailable

HOLDER, HANDLE UPP

8JP-F3814-10-00

$17.99

JOINT

8NS-F381B-00-00

$117.99

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.07

HOLDER, BEARING

8JP-F3872-00-00

$2.97

BEARING,STEERING

8KG-F3812-00-00

$4.35

BEARING, STEERING

8ND-F3812-00-00

$3.81

NUT, LOCK 1

8JP-RA379-00-00

$0.54

SCREW, 10

8ND-RA299-00-00

Unavailable

COLUMN, STEERING 2

8NT-F3813-00-00

$132.99

NUT,HEX FLG-NYL LOCK M8X1.25

8JM-RA301-00-00

$1.06

WASHER, THRUST

8NS-F5146-00-00

Unavailable

SCREW, M8X1.25X37

8JP-RA274-00-00

Unavailable
