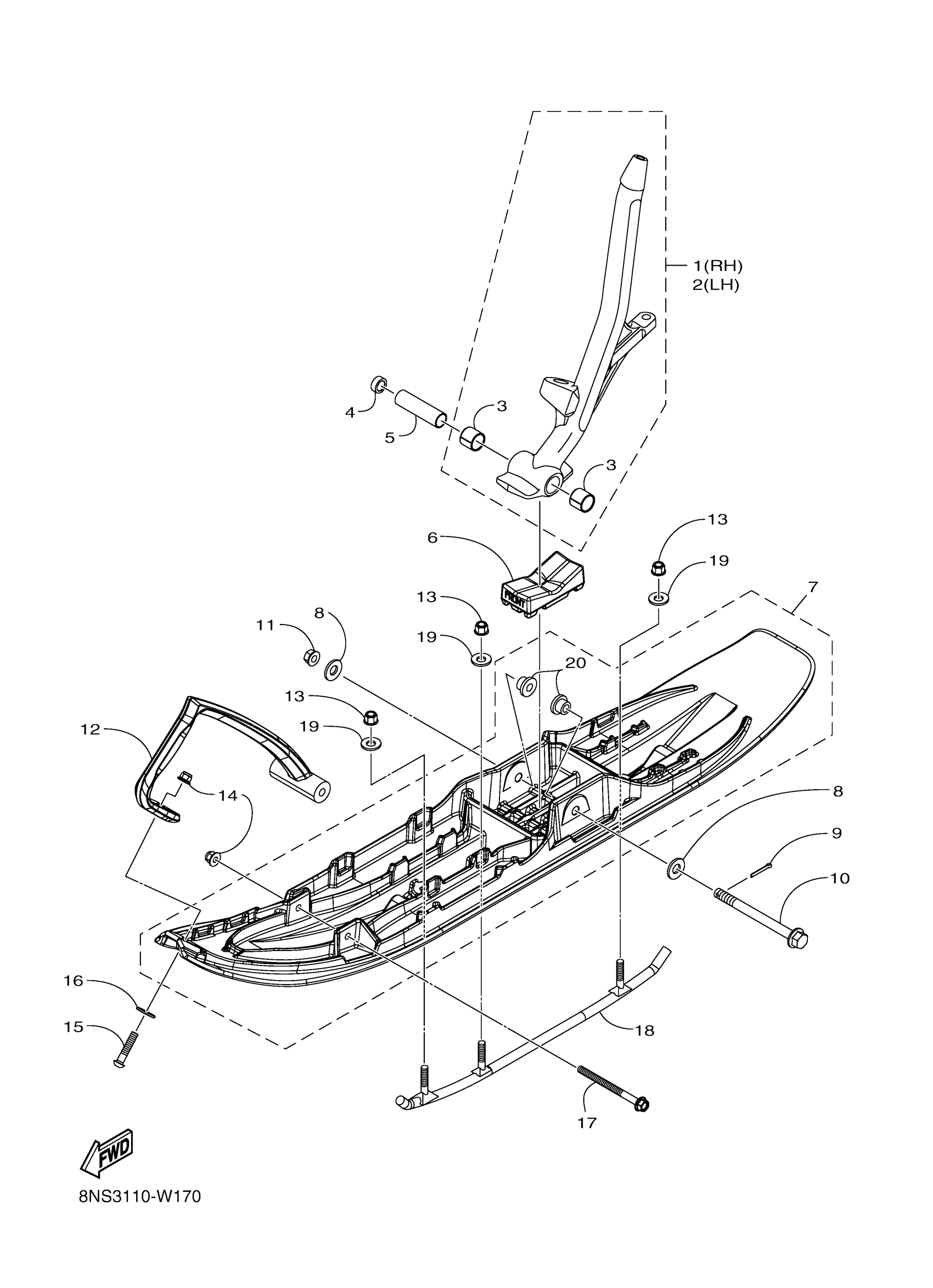

Yamaha TR4NTNB (TRANSPORTER LITE) 8NU3 2022 SKI Diagram

#

Description
Price

1

KNUCKLE, STEERING

8KU-F3521-F0-00

Unavailable

2

KNUCKLE, STEERING

8KU-F3511-F0-00

Unavailable

3

BUSH, 12DU12

8JP-RA806-00-00

$10.49

4

COLLAR, 6

8JP-RA718-00-00

$3.40

5

COLLAR, 75

8JP-RA731-00-00

$31.99

6

STOPPER 1

8NS-F3743-00-00

$22.99

7

SKI COMP. 1

8KC-F3710-00-00

Unavailable

8

WASHER, PLATE

90201-10043-00

$2.22

9

PIN, COTTER

91490-20025-00

$1.99

10

BOLT, FLANGE

90105-10070-00

$12.49

11

NUT, S/L FLANGE

95602-10200-00

$4.82

12

REINFORCEMENT, HEAD

8KC-F3712-90-00

Unavailable

13

NUT, FLG. LOCKING

8KC-RA358-00-00

Unavailable

14

NUT, FLG. LOCKING

8KC-RA358-00-00

Unavailable

15

BOLT, REINFORCEMEN

8KC-F3755-00-00

$4.56

16

WASHER 1

8KC-F3737-00-00

Unavailable

17

BOLT, REINFORCEMEN

8KC-F3756-00-00

Unavailable

18

RUNNER 2

8KC-F3732-00-00

Unavailable

19

WASHER, 10.98X28.0

8KC-RA443-00-00

Unavailable

20

. COLLAR 1

8EX-F3754-00-00

Unavailable
