- TR4NTNB (TRANSPORTER LITE) 8NU3 2022
CYLINDER HEAD

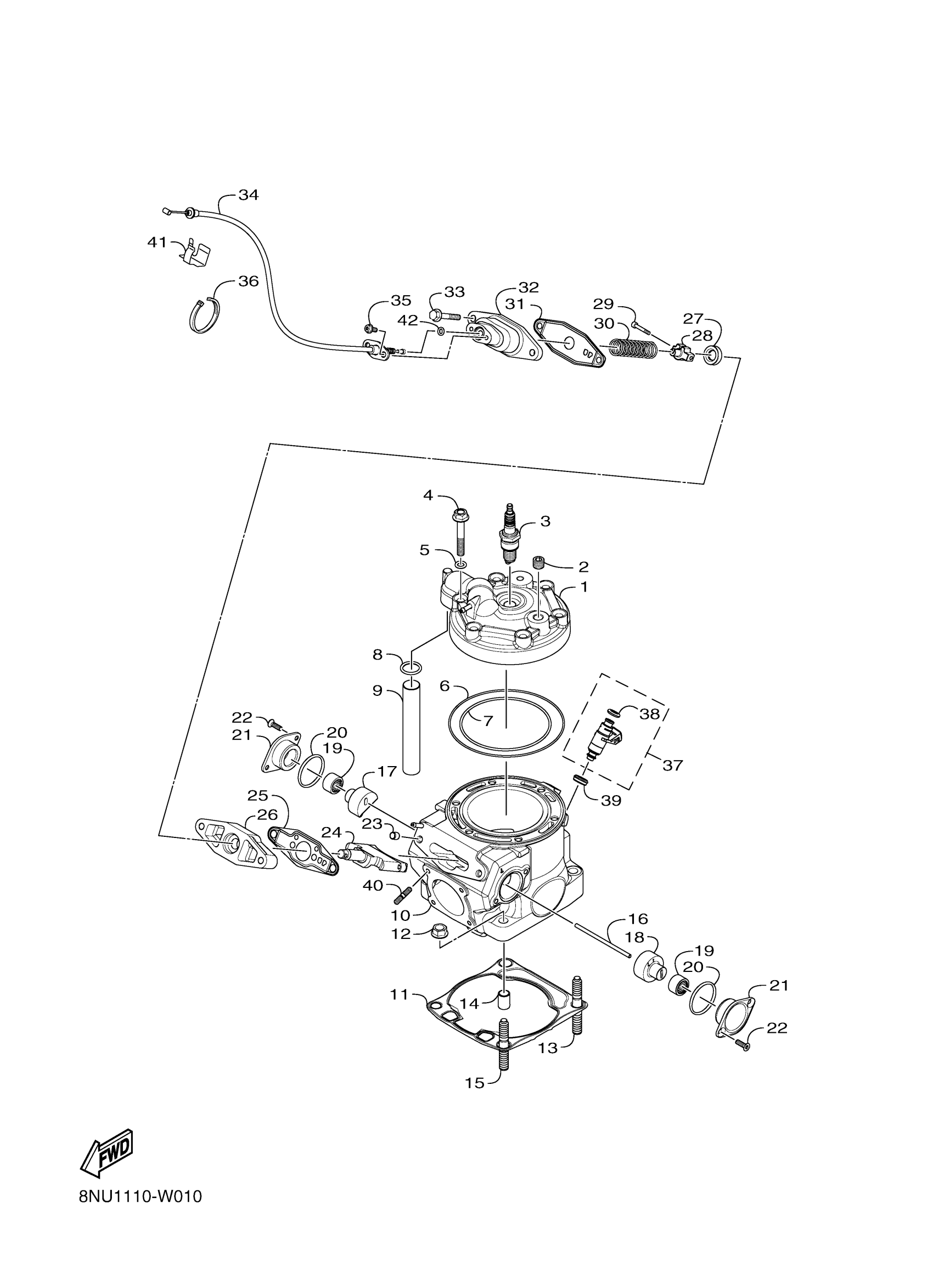

Yamaha TR4NTNB (TRANSPORTER LITE) 8NU3 2022 CYLINDER HEAD Diagram
#
1
HEAD, CYLINDER 1
8NT-E1111-10-00
$288.99
2
PLUG
8NT-G7339-00-00
$2.28
3
PLUG, SPARK M14S-1
8ND-RAY10-00-00
$7.49
4
BOLT, FLANGE
8ND-RA126-00-00
Unavailable
5
O-RING, 1
8ND-RAF00-00-00
$3.35
6
O-RING,3
8NV-RAF02-00-00
$3.98
7
O-RING, 2
8NV-RAF01-00-00
$7.49
8
O-RING, 1
8KC-RAF00-00-00
$4.35
9
PIPE 1
8NT-E2481-00-00
$13.49
10
CYLINDER 1
8NV-E1311-00-00
Unavailable
11
GASKET, CYLINDER
8NT-E1351-00-00
Unavailable
12
NUT
8ND-RA317-00-00
$1.75
13
BOLT, STUD 2
8NV-E1392-00-00
$2.65
14
ROLLER
8ND-E3363-00-00
$3.88
15
BOLT, STUD
8ND-E1179-00-00
$11.49
16
PIN, JOINT
8NV-E1498-00-00
Unavailable
17
VALVE 2
8NV-E132A-00-00
Unavailable
18
VALVE 1
8NV-E131A-00-00
Unavailable
19
BEARING
8NV-RAG02-00-00
Unavailable
20
O-RING, 2
8NV-RAF04-00-00
Unavailable
21
CAP, TENSIONER CAS
8NV-E2215-00-00
Unavailable
22
SCREW
8NV-RA200-00-00
Unavailable
23
PIN, DOWEL
8ND-E3516-00-00
Unavailable
24
VALVE 3
8NV-E133A-00-00
Unavailable
25
GASKET
8ND-E1354-00-00
Unavailable
26
HOLDER 2
8ND-E131F-00-00
Unavailable
27
SEAL, OIL 1
8ND-RAY12-00-00
Unavailable
28
SEAT, SPRING
8ND-E1317-00-00
Unavailable
29
PIN, JOINT
8ND-E1498-00-00
Unavailable
30
SPRING, COMPRESSIO
8ND-RAD06-00-00
Unavailable
31
GASKET
8ND-E1397-00-00
Unavailable
32
HOLDER 3
8ND-E131U-00-00
Unavailable
33
BOLT, FLANGE
8ND-RA127-00-00
Unavailable
34
CABLE, PULLEY 1
8NT-E133E-00-00
Unavailable
35
BOLT, FLANGE
8ND-RA128-00-00
Unavailable
36
TIE, CABLE-8.5/7.5/7.4
8JM-RAB01-00-00
Unavailable
37
INJECTOR
8NV-E3761-00-00
Unavailable
38
O-RING, 1
8ND-RAF03-00-00
Unavailable
39
SEAL
8ND-E2223-00-00
Unavailable
40
BOLT, STUD
8ND-RA125-00-00
Unavailable
41
CLIP, 1
8NT-RAC00-00-00
Unavailable
42
O-RING, 2
8ND-RAF04-00-00
Unavailable
