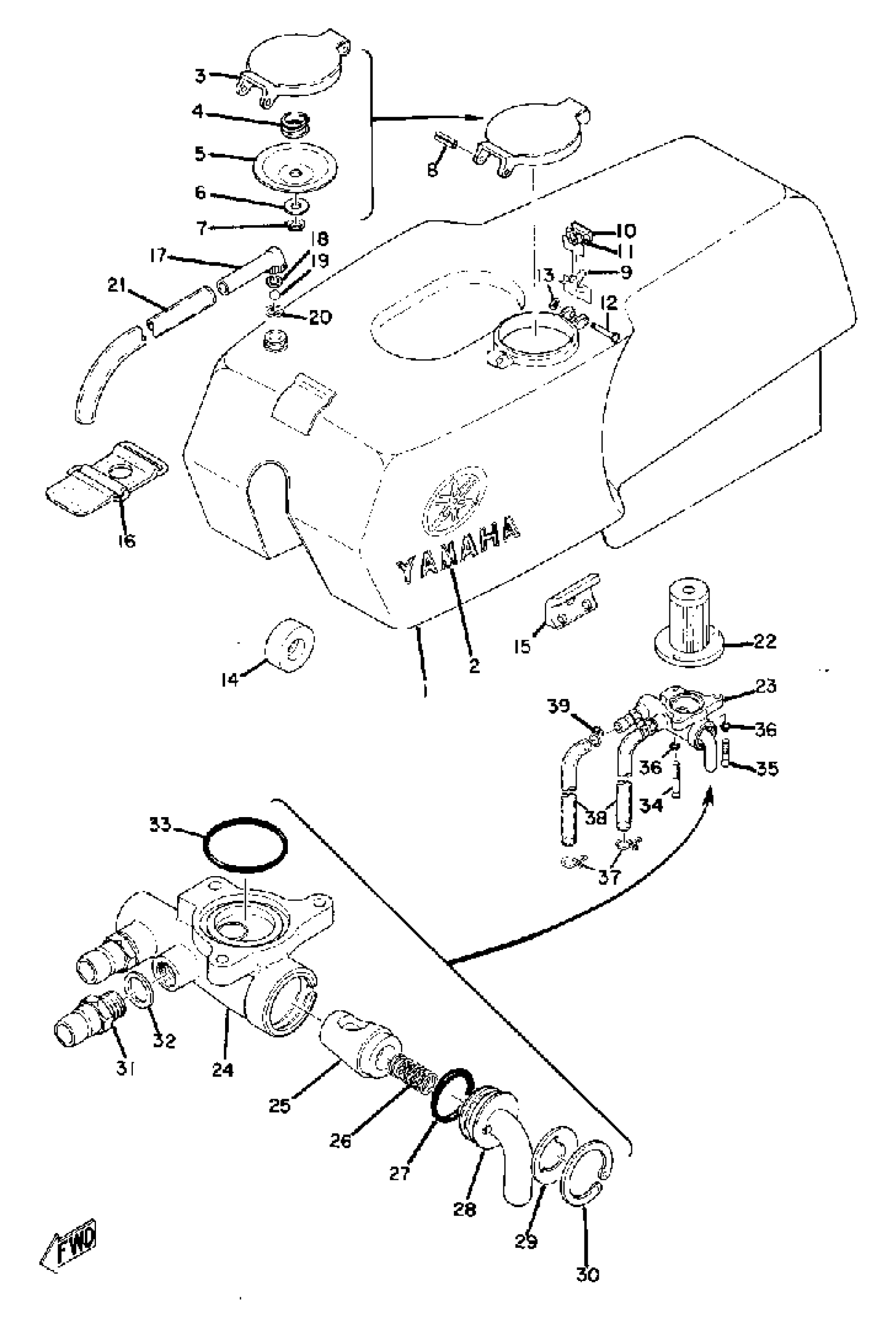

Find the part on the Fuel Tank diagram for your 1972 Yamaha TR3 (TR3), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha TR3 (TR3) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

(328-24110-00-X1)

1
Out of stock

2

EMBLEM 1

240-24161-00-00

1
Out of stock

3

. BODY, CAP

294-24611-00-00

1
Out of stock

4

SPRING, CAP

90501-20130-00

1

$6.80

In stock

5

. GASKET, CAP

294-24612-00-00

1
Out of stock

6

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

7

CIRCLIP(53L)

99001-06600-00

1

$0.70

In stock

8

PIN, SPRING (6H4)

91690-30020-00

1

$3.07

In stock

9

SPRING, TORSION (256-24637-00)

90508-08223-00

1
Out of stock

10

HOOK

256-24628-00-00

1
Out of stock

11

O-RING (26H)

93210-06632-00

1

$6.68

In stock

12

PIN, SPEC''L SHAPE

90249-03016-00

1
Out of stock

13

CIRCLIP (604)

93430-02001-00

1

$6.69

In stock

14

DAMPER, LOCATING 1

3TB-24181-00-00

1

$12.29

In stock

15

DAMPER,LOCATING 1

240-24181-00-00

1

$11.58

In stock

16

BAND, TNK FITTING 1

240-24173-00-00

1
Out of stock

17

NUT, BREATHER

143-24681-00-00

1
Out of stock

18

GASKET

(90430-10028-00)

1
Out of stock

19

BALL, VALVE

143-24684-00-00

1
Out of stock

20

CLIP, BALL HOLDER

143-24685-00-00

1
Out of stock

21

HOSE (MAXI MAROON)

(90446-06007-00)

1
Out of stock

22

STRAINER

(294-24167-00-00)

1
Out of stock

23

FUEL COCK ASSEMBLY 1

(240-24500-01-00)

1
Out of stock

26

. SPRING

(145-24529-00-00)

1
Out of stock

27

. SEAL, COCK

(240-24534-00-00)

1
Out of stock

28

. LEVER, COCK

(240-24524-00-00)

1
Out of stock

29

. PLATE, LVR FITTING

(240-24525-00-00)

1
Out of stock

30

. BRACKET, FUEL COCK

(240-24544-00-00)

1
Out of stock

31

. NIPPLE

(240-24537-00-00)

1
Out of stock

32

. GASKET

(240-24528-00-00)

1
Out of stock

33

O-RING

(93210-38146-00)

1
Out of stock

34

SCREW, FLAT HEAD (E22)

98780-04520-00

1
Out of stock

35

SCREW, FLAT HEAD

(98701-04035-00)

1
Out of stock

36

WASHER, EX.TOOTH

(92901-04500-00)

1
Out of stock

37

CLIP

90467-100A1-00

—
Out of stock

38

HOSE

90445-11491-00

1
Out of stock

39

CLIP(1JH)

90467-11106-00

—
Out of stock
