CARBURETOR

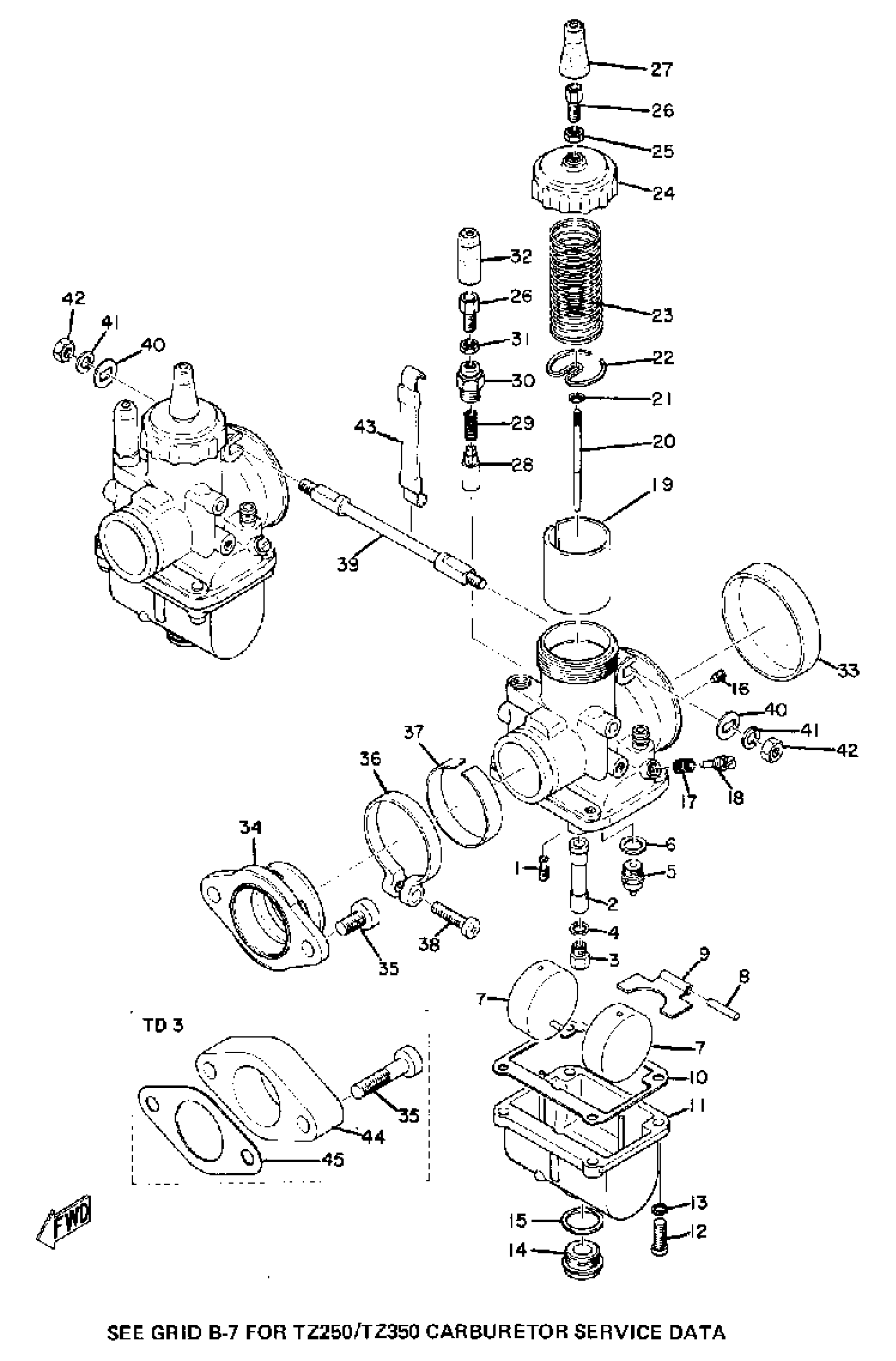

1972 Yamaha TR3 (TR3) Carburetor Diagram
Find the part on the Carburetor diagram for your 1972 Yamaha TR3 (TR3), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
JET, PILOT (# 70)
193-14142-70-00
1
CARBURETOR ASSEMBLY 1
(328-14101-01-00)
1
CARBURETOR ASSEMBLY 1
(329-14101-01-00)
2
. NOZZLE, MAIN (0-2)
239-14141-32-00
3
JET,MAIN #340
137-14143-68-00
3
JET,MAIN #360
137-14143-72-00
3
JET,MAIN #370
137-14143-74-00
3
JET,MAIN #380
137-14143-76-00
3
JET,MAIN #390
137-14143-78-00
4
WASHER,MAIN JET
137-14153-00-00
7
FLOAT
(239-14185-00-00)
9
ARM, FLOAT
(239-14187-00-00)
10
GASKET, FLOAT CHMBR
(239-14184-00-00)
11
BODY, FLOAT CHMBR 1
(239-14181-00-00)
13
YBS67-5 WASHER, SPRING
92990-05100-00
14
PLUG, SCREW
(239-14115-00-00)
15
. WASHER, PLUG SCREW
239-14117-00-00
16
JET, AIR (#2.0)
239-14172-20-00
19
VALVE, THROTTLE 1
(239-14112-30-00)
20
. NEEDLE
239-14116-09-00
22
. SEAT, SPRING
239-14136-00-00
23
. SPRING, THRTL VALVE
239-14131-00-00
24
. TOP, MIXING CHAMBER
239-14158-00-00
32
CAP
(174-14169-01-00)
33
COVER, MIXING
240-14157-00-00
34
MANIFOLD, INTAKE
328-13555-01-00
35
BOLT, SOCKET
91317-08035-00
36
CLAMP, HOSE
(90460-45056-00)
37
SPACER
(240-13576-00-00)
39
SCREW, ROD
(240-14486-00-00)
40
WASHER, SPEC''L SHAP
(90209-10033-00)
43
HOLDER
(294-14491-00-00)
44
JOINT, CARBURETOR
329-13565-01-00
45
GASKET,MANIFOLD
329-13556-01-00
