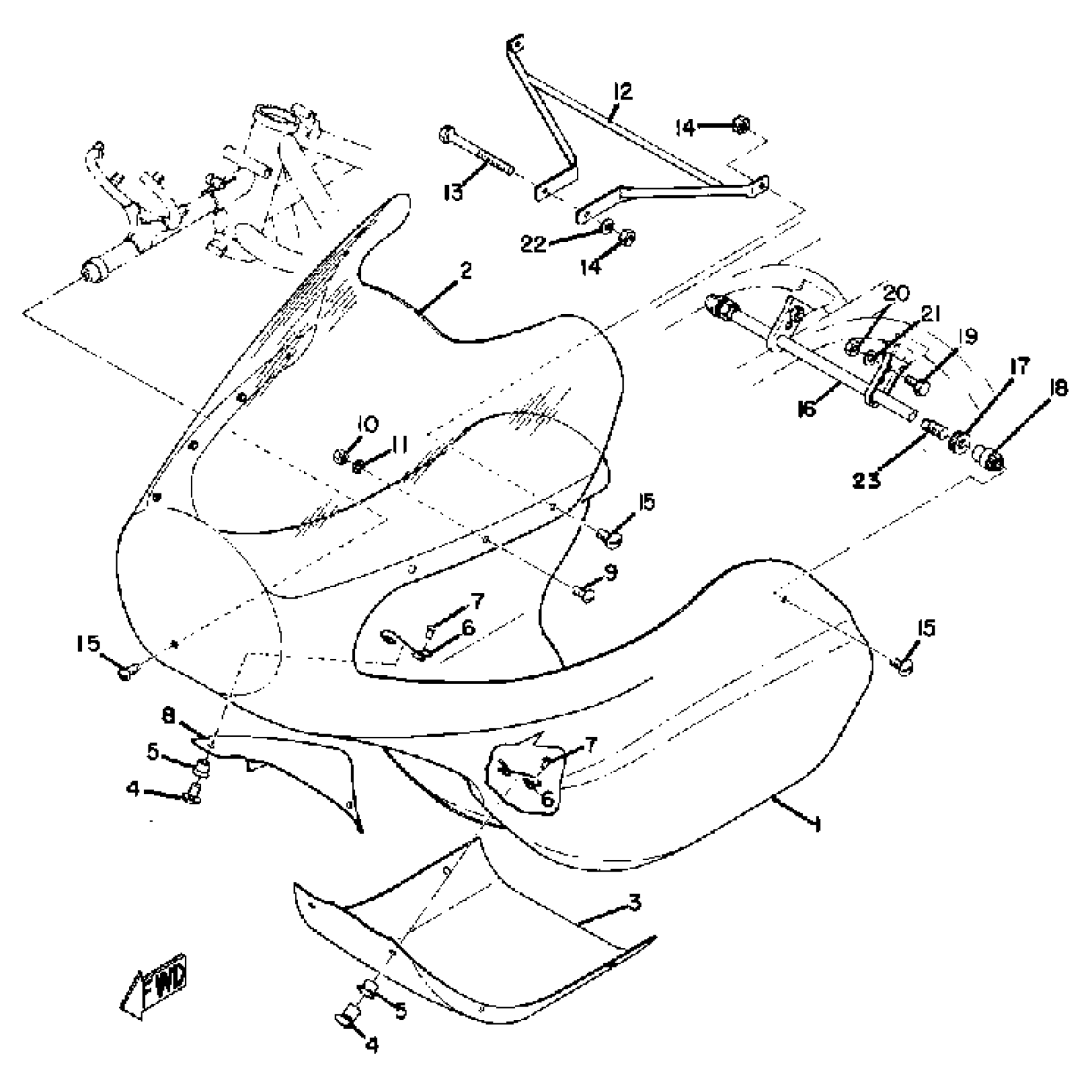

Yamaha TR3 (TR3) 1972 COWLING Diagram

#

Description
Price

1

COWLING ASSY

328-28350-00-02

Unavailable

1

TZ250C RR FR W/WDS

(ACC-11110-75-05)

Unavailable

2

TZ750E WNDSHD ONLY

(ACC-11110-77-04)

Unavailable

3

COVER, LOWER

(240-28385-00-00)

Unavailable

4

. HEAD

240-28386-00-00

Unavailable

4

. HEAD

240-28386-00-00

Unavailable

5

RIVET

240-28389-00-00

$4.89

5

RIVET

240-28389-00-00

$4.89

6

SPRING

(240-28388-00-00)

Unavailable

6

SPRING

(240-28388-00-00)

Unavailable

7

RIVET, ROUND HEAD

(90260-02002-00)

Unavailable

7

RIVET, ROUND HEAD

(90260-02002-00)

Unavailable

8

COVER, UPPER

(240-28384-00-00)

Unavailable

9

SCREW, ROUND HEAD

90140-04012-00

Unavailable

10

NUT(6TA)

95307-04600-00

$8.49

11

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

12

STAY 2

(240-28357-00-33)

Unavailable

13

BOLT, HEXAGON

(97321-06085-00)

Unavailable

14

NUT, NYLON

95707-06300-00

Unavailable

15

SCREW, ROUND HEAD(55K)

90150-06021-00

Unavailable

16

STAY 3

(240-28358-00-33)

Unavailable

17

NUT, SPEC''L SHAPE

(90179-14145-00)

Unavailable

18

DAMPER

240-28371-00-33

Unavailable

19

BOLT, FLAT HD.DRILL

(95201-08015-00)

Unavailable

20

NUT(6L2)

95333-08600-00

Unavailable

21

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

NUT, WELD

(90174-14001-00)

Unavailable

23

FAIRING TA250

(ACC-11110-73-00)

Unavailable

23

TZ250C RR FR W/WDS

(ACC-11110-75-05)

Unavailable

23

TZ750E WNDSHD ONLY

(ACC-11110-77-04)

Unavailable
