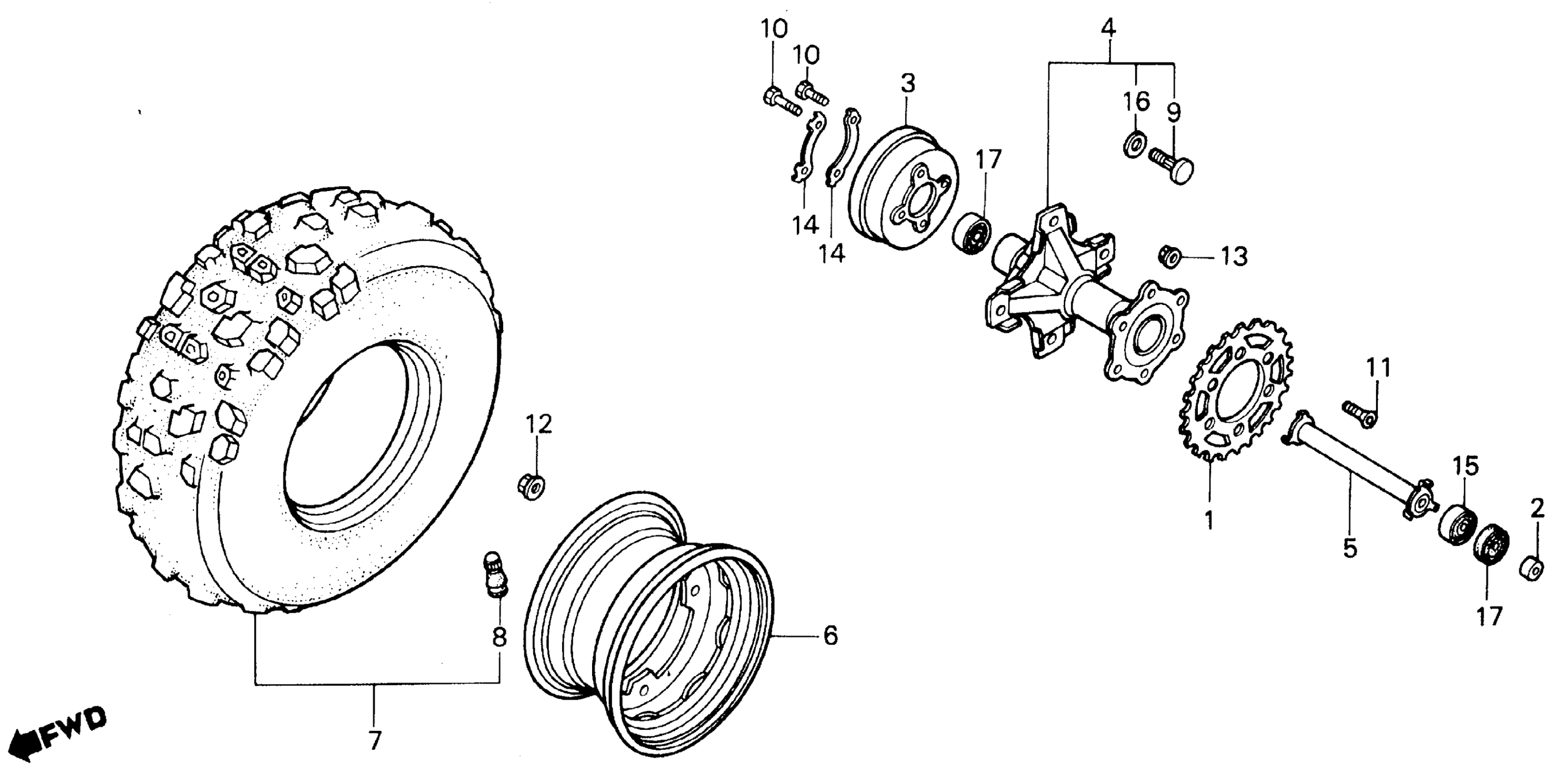

Honda TR200A (87) FATCAT, JPN, VIN# JH2TE110-HK600001 TO JH2TE110-HK608042 REAR WHEEL Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (39T) This part replaces 41201-HB7-000.

41201-HB7-505

Unavailable

1

SPROCKET, FINAL DRIVEN (39T)

41201-HB7-505

Unavailable

2

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42305-KB4-000

Unavailable

3

DRUM, FR. BRAKE (NOT AVAILABLE)

42602-HB7-000

Unavailable

4

HUB SUB-ASSY., RR. WHEEL (NOT AVAILABLE)

42605-HB7-000

Unavailable

5

COLLAR, RR. AXLE DISTANCE

42620-HB7-000

Unavailable

6

RIM, RR. WHEEL (NOT AVAILABLE)

42701-HB7-000

Unavailable

7

TIRE ASSY., RR. (23.5X8.00-11) (KT925) (DUNLOP) (NOT AVAILABLE)

42710-HB7-003

Unavailable

8

VALVE, RIM (SCHRADER)

42753-SB8-661

$1.93

8

VALVE, RIM (SCHRADER) This part replaces 42753-SE0-A02.

42753-SB8-661

$1.93

8

VALVE, RIM (SCHRADER) This part replaces 42753-634-003.

42753-SB8-661

$1.93

8

VALVE, RIM (SCHRADER) This part replaces 42753-634-006.

42753-SB8-661

$1.93

8

VALVE, RIM (SCHRADER) This part replaces 42753-634-007.

42753-SB8-661

$1.93

8

VALVE, RIM (SCHRADER) This part replaces 42753-671-003.

42753-SB8-661

$1.93

8

VALVE, RIM (SCHRADER) This part replaces 42753-937-000.

42753-SB8-661

$1.93

9

BOLT, WHEEL (10X21)

90104-HB7-300

Unavailable

10

BOLT, BRAKE DRUM

90109-HB7-000

Unavailable

11

SCREW, FLAT HEAD SOCKET

90125-HB7-000

Unavailable

12

NUT, U (10MM)

90304-GE8-003

$3.67

13

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

13

NUT, FLANGE (8MM)

90309-428-731

$3.35

14

WASHER, TONGUED (NOT AVAILABLE)

90514-VM3-000

Unavailable

15

OIL SEAL (28X42X7) (ARAI)

91257-230-003

$11.31

16

WASHER, PLAIN (10MM)

94101-10000

$1.49

17

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

17

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36
