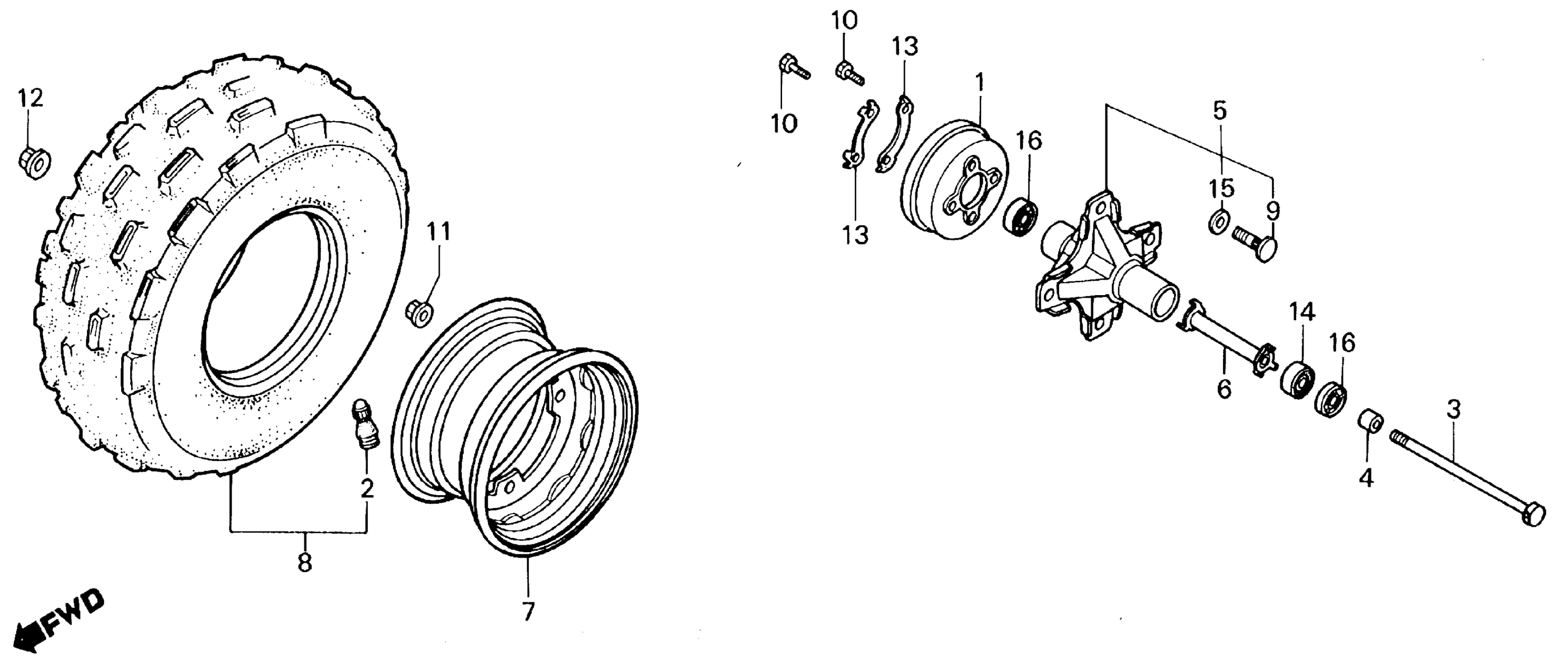

Honda TR200A (87) FATCAT, JPN, VIN# JH2TE110-HK600001 TO JH2TE110-HK608042 FRONT WHEEL Diagram

#

Description
Price

1

DRUM, FR. BRAKE (NOT AVAILABLE)

42602-HB7-000

Unavailable

2

VALVE, RIM (SCHRADER)

42753-SB8-661

$1.93

2

VALVE, RIM (SCHRADER) This part replaces 42753-SE0-A02.

42753-SB8-661

$1.93

2

VALVE, RIM (SCHRADER) This part replaces 42753-634-003.

42753-SB8-661

$1.93

2

VALVE, RIM (SCHRADER) This part replaces 42753-634-006.

42753-SB8-661

$1.93

2

VALVE, RIM (SCHRADER) This part replaces 42753-634-007.

42753-SB8-661

$1.93

2

VALVE, RIM (SCHRADER) This part replaces 42753-671-003.

42753-SB8-661

$1.93

2

VALVE, RIM (SCHRADER) This part replaces 42753-937-000.

42753-SB8-661

$1.93

3

AXLE, FR. WHEEL

44301-HB7-000

Unavailable

4

COLLAR, FR. AXLE SIDE This part replaces 44312-HB7-000.

44312-968-680

Unavailable

4

COLLAR, FR. AXLE SIDE

44312-968-680

Unavailable

5

HUB SUB-ASSY., FR. WHEEL (NOT AVAILABLE)

44605-HB7-010

Unavailable

6

COLLAR, FR. AXLE DISTANCE

44620-HB7-000

Unavailable

7

RIM, FR. WHEEL (NOT AVAILABLE)

44701-HB7-000

Unavailable

8

TIRE (24.5X8.00-11) This part replaces 44710-HB7-003.

44711-HB7-003

Unavailable

9

BOLT, WHEEL (10X21)

90104-HB7-300

Unavailable

10

BOLT, BRAKE DRUM

90109-HB7-000

Unavailable

11

NUT, U (10MM)

90304-GE8-003

$3.67

12

NUT, U (14MM)

90305-GE8-003

$3.86

13

WASHER, TONGUED (NOT AVAILABLE)

90514-VM3-000

Unavailable

14

DUST SEAL (23X42X7) (NOK) This part replaces 91251-958-003.

91251-958-004

$14.25

14

DUST SEAL (23X42X7) (NOK)

91251-958-004

$14.25

15

WASHER, PLAIN (10MM)

94102-10000

$1.49

16

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

16

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36
