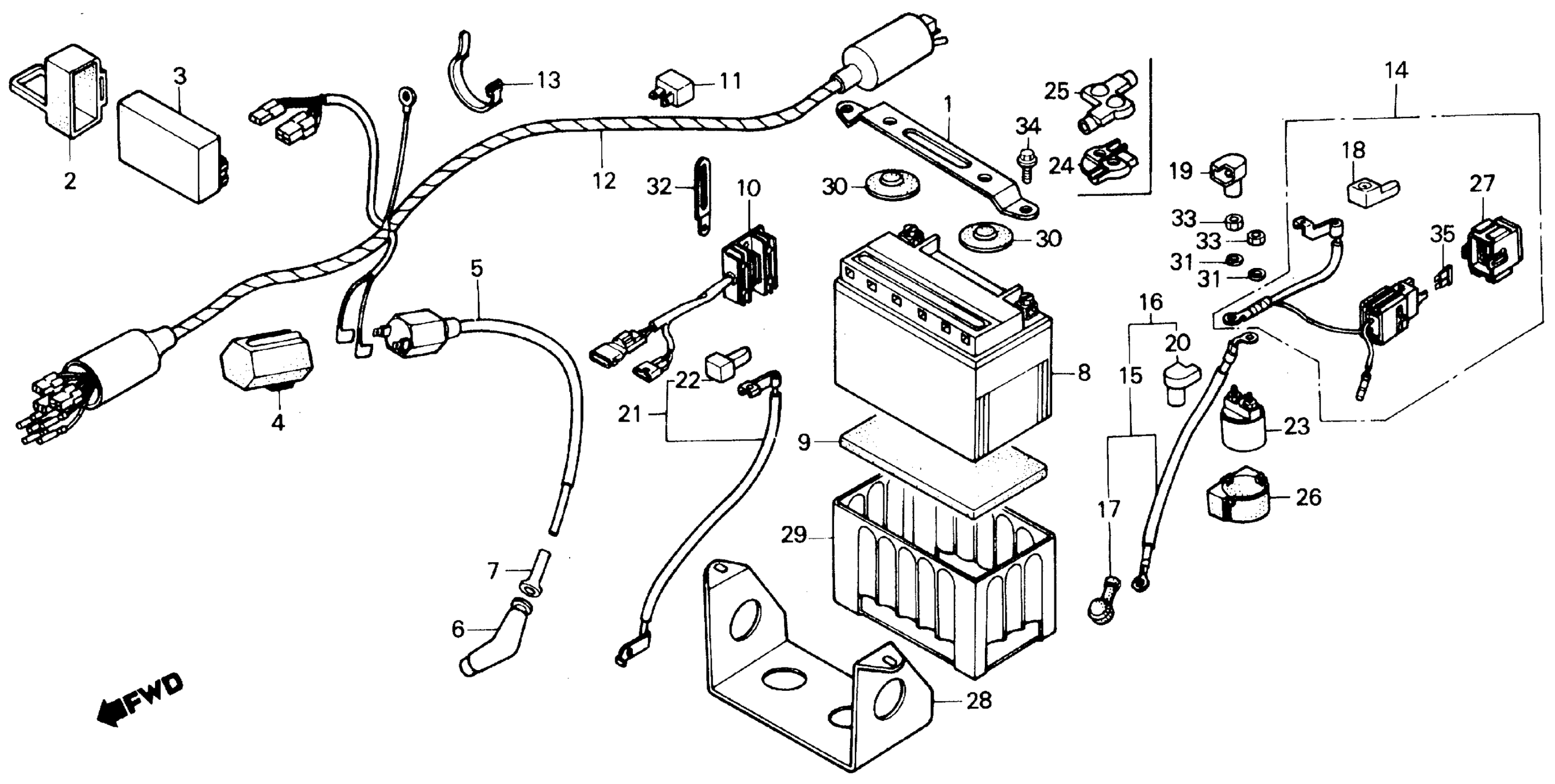

Honda TR200A (86) FATCAT, JPN, VIN# JH2TE110-GK500001 WIRE HARNESS Diagram

#

Description
Price

1

PLATE B, BATTERY SETTING This part replaces 17234-HB7-010.

17234-HB7-670

Unavailable

1

PLATE B, BATTERY SETTING

17234-HB7-670

Unavailable

2

RUBBER, IGNITION CONTROL MODULE

30401-HB7-000

Unavailable

3

MODULE, IGNITION CONTROL (CDI)

30410-HB7-003

Unavailable

4

SUSPENSION, IGNITION COIL

30506-KR3-670

$16.91

5

COIL, IGNITION This part replaces 30510-HB7-000.

30510-KT0-405

$77.33

5

COIL, IGNITION

30510-KT0-405

$77.33

6

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-MA0-153.

30700-MA0-163

$22.32

6

CAP ASSY., NOISE SUPPRESSOR

30700-MA0-163

$22.32

7

CAP ASSY., NOISE PROTECTOR (NOT AVAILABLE)

30701-HB7-000

Unavailable

8

BATTERY (YTX9-BS) (YUASA) This part replaces 31500-HB7-007.

31500-HN1-003

Unavailable

8

BATTERY (YTX9-BS) (YUASA) This part replaces 31500-HB7-017.

31500-HN1-003

Unavailable

8

BATTERY (YTX9-BS) (YUASA)

31500-HN1-003

Unavailable

8

BATTERY (YTX9-BS) (YUASA) This part replaces 31500-MN4-601.

31500-HN1-003

Unavailable

8

BATTERY (YTX9-BS) (YUASA) This part replaces 31500-MN4-671.

31500-HN1-003

Unavailable

8

BATTERY (YTX9-BS) (YUASA) This part replaces 31500-MN4-672.

31500-HN1-003

Unavailable

8

BATTERY (YTX9-BS) (YUASA) This part replaces 31500-MN4-673.

31500-HN1-003

Unavailable

8

BATTERY (YTX9-BS) (YUASA) This part replaces 31500-MN4-675.

31500-HN1-003

Unavailable

8

BATTERY (YTX9-BS) (YUASA) This part replaces 31500-MN4-677.

31500-HN1-003

Unavailable

10

RECTIFIER ASSY., REGULATOR (NOT AVAILABLE)

31600-HB7-000

Unavailable

11

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

12

WIRE HARNESS

32100-HB7-000

Unavailable

13

BAND, CABLE

32161-399-000

Unavailable

14

CABLE, RELAY BATTERY This part replaces 32401-HB7-000.

32401-HB7-670

Unavailable

14

CABLE, RELAY BATTERY

32401-HB7-670

Unavailable

15

CABLE, STARTER MOTOR (NOT AVAILABLE)

32410-HB7-000

Unavailable

17

COVER, TERMINAL

32411-KG1-920

Unavailable

18

COVER A, BATTERY

32412-HB7-000

Unavailable

21

CABLE, BATTERY GROUND (NOT AVAILABLE)

32601-HB7-000

Unavailable

22

COVER B, BATTERY

32613-HB7-000

Unavailable

23

SWITCH ASSY., STARTING MAGNETIC (NOT AVAILABLE)

35850-HB7-007

Unavailable

24

CASE, STARTER MAGNETIC SWITCH

35851-HB7-007

Unavailable

25

COVER, STARTER MAGNETIC SWITCH

35852-HB7-010

Unavailable

26

RUBBER, MAGNETIC SHOCK

35856-425-000

$10.91

27

COVER, FUSE CASE

38251-HB7-000

Unavailable

28

TRAY, BATTERY (NOT AVAILABLE) This part replaces 50325-HB7-000.

50325-HB7-670

Unavailable

29

RUBBER, BATTERY

50334-HA0-000

Unavailable

30

RUBBER, BATTERY BOX

83618-323-000

$2.47

31

WASHER, SPRING (6MM)

90052-ZA0-800

$1.49

32

CLIP, WIRE

91406-166-000

$3.83

33

NUT, HEX. (6MM)

94002-06390-0S

$1.49

34

BOLT, FLANGE (6X10)

96300-06010-00

$1.49

35

FUSE, BLADE (10A)

98200-31000

$1.49
