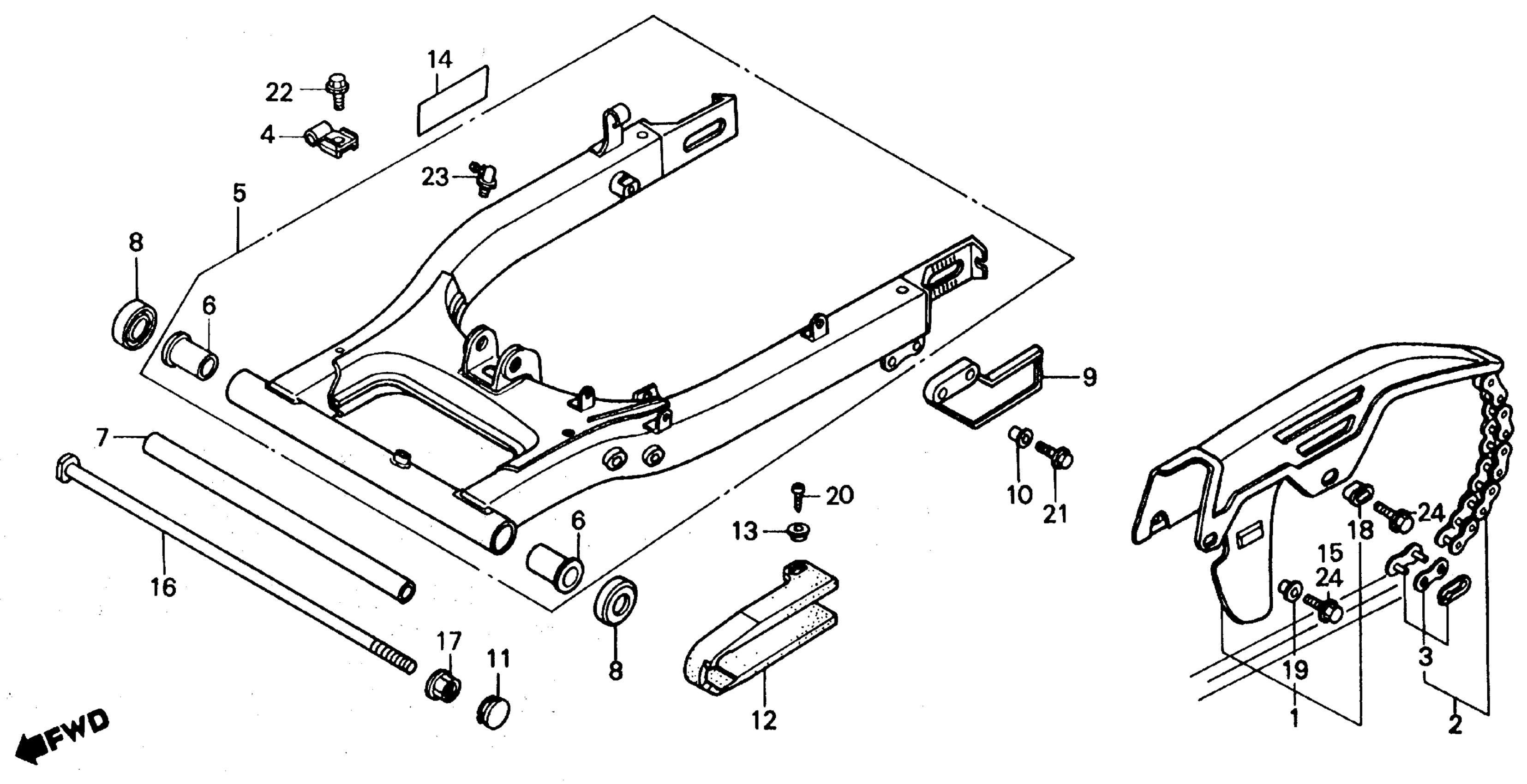

Honda TR200A (86) FATCAT, JPN, VIN# JH2TE110-GK500001 SWINGARM Diagram

CASE, DRIVE CHAIN This part replaces 40510-HB7-000.

40510-HB7-770

Unavailable

CHAIN, DRIVE (520K0-108FJ)

405W3-MN1-505

Unavailable

CHAIN, DRIVE (520K0-108FJ) This part replaces 40530-HB7-003.

405W3-MN1-505

Unavailable

CHAIN, DRIVE (520K0-108FJ) This part replaces 40530-HB7-005.

405W3-MN1-505

Unavailable

MASTER LINK (TAKASAGO)

40531-KF0-005

Unavailable

MASTER LINK (DAIDO) This part replaces 40531-KN5-003.

40531-KT0-003

$5.67

MASTER LINK (DAIDO)

40531-KT0-003

$5.67

SWINGARM ASSY., RR.

52100-HB7-020

Unavailable

BUSH, SWINGARM This part replaces 52108-KB9-003.

52108-KE5-003

$21.68

BUSH, SWINGARM

52108-KE5-003

$21.68

COLLAR, SWINGARM

52141-HB7-000

Unavailable

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$17.31

CAP, DUST SEAL (NOK) This part replaces 52144-286-000.

52144-356-005

$17.31

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

CAP, DUST SEAL (NOK) This part replaces 52144-356-003.

52144-356-005

$17.31

CAP, DUST SEAL (NOK)

52144-356-005

$17.31

GUARD, CHAIN

52156-GJ1-000

Unavailable

COLLAR, CHAIN GUARD

52157-GC5-000

$4.48

CAP, L. PIVOT NUT

52160-HB7-000

Unavailable

SLIDER, CHAIN (NOT AVAILABLE)

52170-HB7-000

Unavailable

WASHER, CHAIN SLIDER

52171-KR6-000

$2.57

MARK, TIRE CAUTION

87505-HB7-310

Unavailable

BOLT, RR. SWINGARM PIVOT | Use up to Frame SN GK501709

90121-HB7-000

Unavailable

BOLT, RR. SWINGARM PIVOT | Use from Frame SN GK501710

90121-HB7-010

Unavailable

NUT, U (14MM)

90305-GE8-003

$3.86

WASHER (6X20)

90512-300-000

$3.08

WASHER (6X9)

90513-323-000

$1.84

SCREW, TAPPING (5X8)

93901-25010

$1.49

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

FITTING, GREASE (C.76)

96201-60000

$2.87

BOLT, FLANGE (6X10)

96300-06010-00

$1.49
