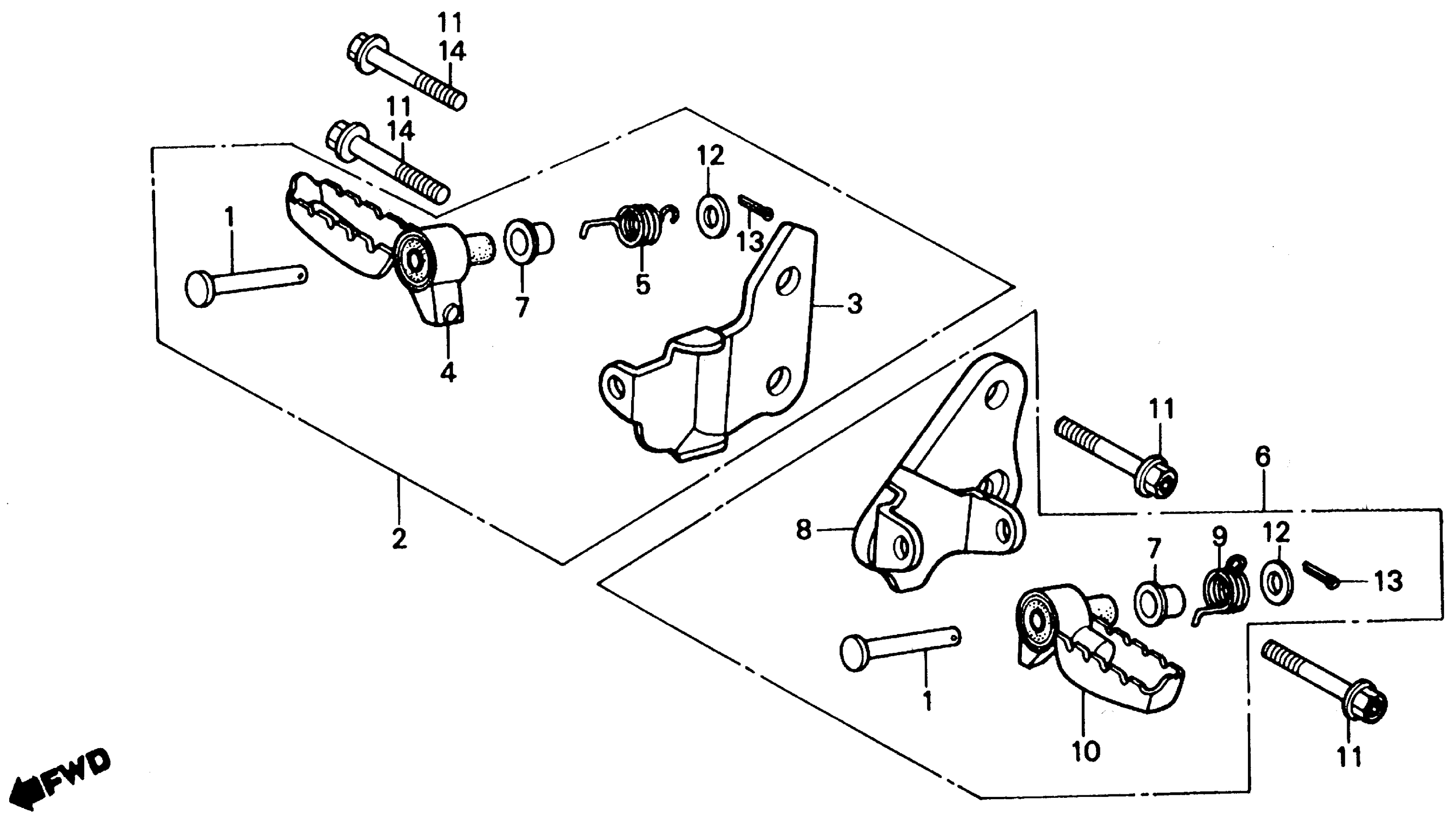

Honda TR200A (86) FATCAT, JPN, VIN# JH2TE110-GK500001 STEP Diagram

PIN, STEP BAR JOINT

50603-HB7-000

Unavailable

ARM ASSY., R. STEP *NH138* (SHASTA WHITE) (NOT AVAILABLE)

50610-HB7-010ZA

Unavailable

ARM, R. STEP *NH138* (SHASTA WHITE)

50615-HB7-010ZA

Unavailable

STEP, R. This part replaces 50616-HB7-000.

50616-MC4-000

Unavailable

STEP, R.

50616-MC4-000

Unavailable

SPRING, R. STEP RETURN

50617-MC4-000

Unavailable

ARM ASSY., L. STEP *NH138* (SHASTA WHITE) (NOT AVAILABLE)

50620-HB7-010ZA

Unavailable

COLLAR, STEP SETTING

50622-HB7-000

Unavailable

ARM, L. STEP *NH138* (SHASTA WHITE) (NOT AVAILABLE)

50642-HB7-010ZA

Unavailable

SPRING, L. STEP RETURN

50644-MC4-000

Unavailable

STEP, L.

50646-HB7-000

Unavailable

BOLT, STEP ARM (10X32) This part replaces 90105-HB7-000.

90105-HB7-770

Unavailable

BOLT, STEP ARM (10X32)

90105-HB7-770

Unavailable

WASHER, PLAIN (8MM)

94102-08800

$1.49

PIN, COTTER (2.0X15)

94201-20150

$1.49
