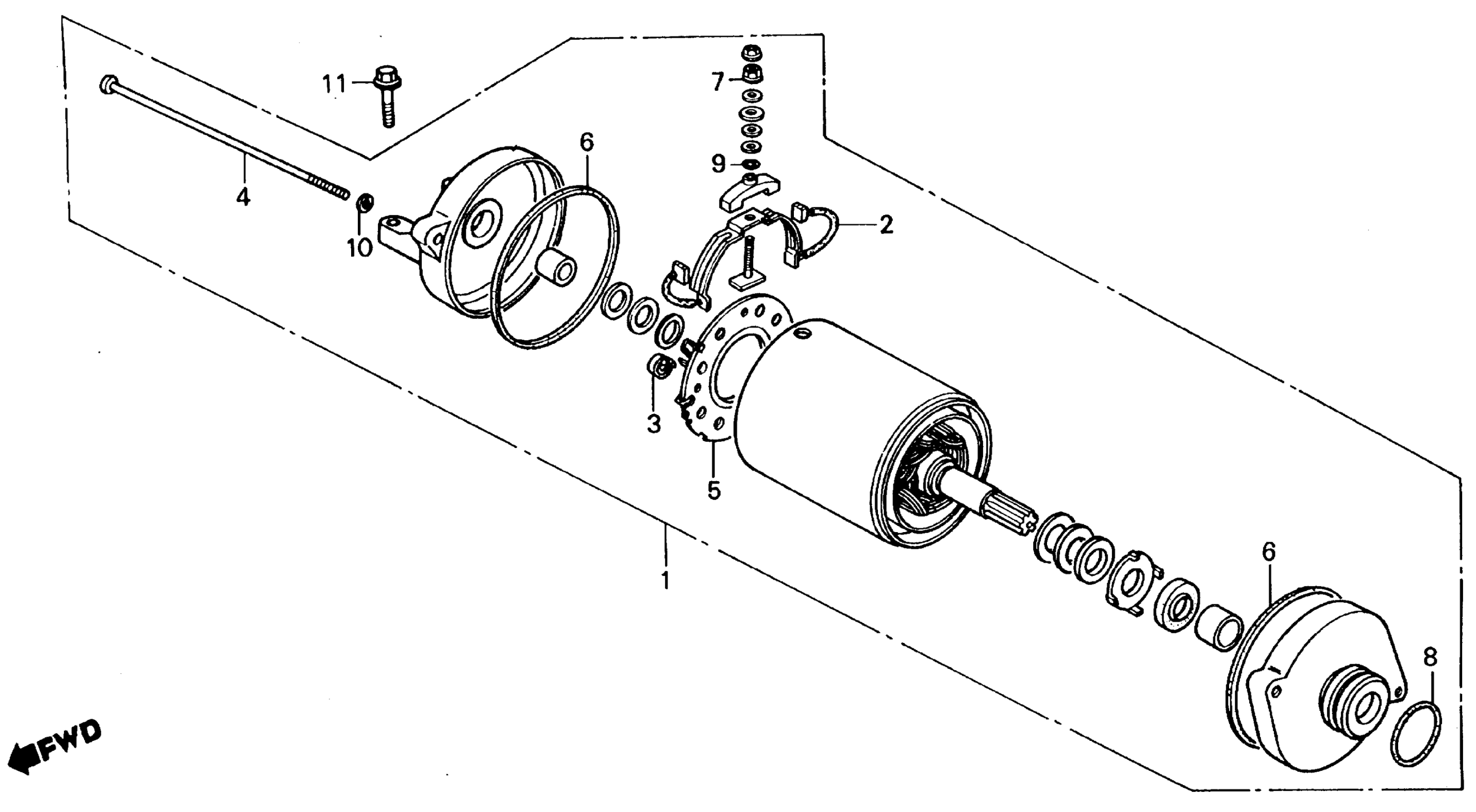

Honda TR200A (86) FATCAT, JPN, VIN# JH2TE110-GK500001 STARTING MOTOR Diagram

STARTER MOTOR ASSY. This part replaces 31200-HB7-018.

31200-HB7-405

Unavailable

TERMINAL SET, BRUSH This part replaces 31201-KK6-008.

31201-KM3-000

Unavailable

TERMINAL SET, BRUSH

31201-KM3-000

Unavailable

SPRING, CARBON BRUSH

31204-MA6-000

$5.22

BOLT, SETTING This part replaces 31205-KJ9-000.

31205-MN4-008

$5.29

BOLT, SETTING

31205-MN4-008

$5.29

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31206-KK6-008.

31206-MM5-008

Unavailable

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31206-MM5-008

Unavailable

RING, SEAL

31207-179-711

$3.93

NUT-WASHER (6MM)

90071-MB0-000

$1.88

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

O-RING

91320-MB0-000

$2.20

WASHER, SPRING (5MM)

94111-05000

$1.03

BOLT, FLANGE (6X25) This part replaces 95800-06025-07.

95801-06025-07

$1.64

BOLT, FLANGE (6X25)

95801-06025-07

$1.64
