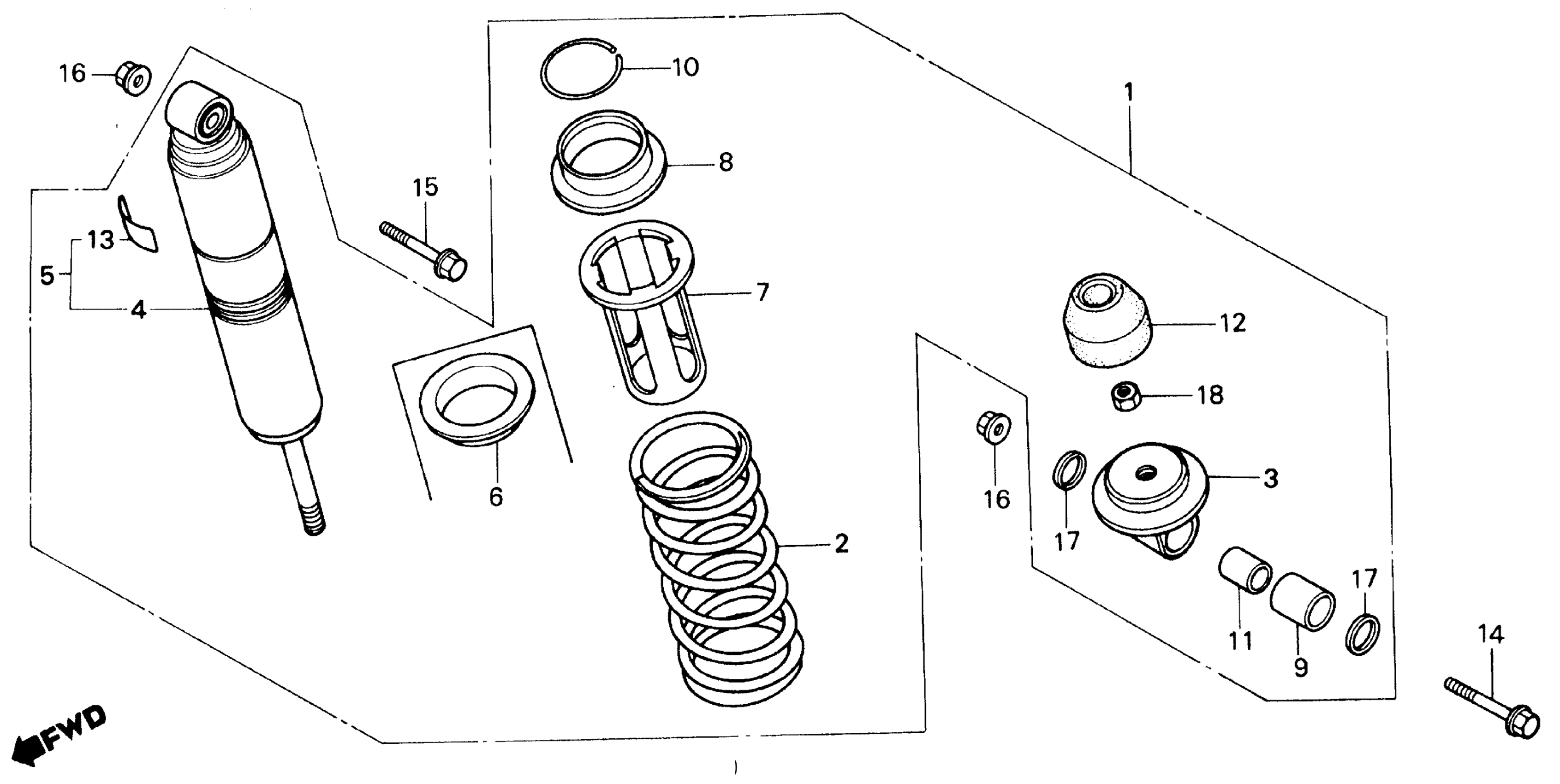

Honda TR200A (86) FATCAT, JPN, VIN# JH2TE110-GK500001 SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. (SHOWA) (NOT AVAILABLE) | Use up to Frame SN GK506685 This part replaces 52400-HB7-003.

52400-HB7-013

Unavailable

1

SHOCK ABSORBER ASSY., RR. (SHOWA) (NOT AVAILABLE) | Use from Frame SN GK506686

52400-HB7-013

Unavailable

2

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-HB7-003

Unavailable

3

METAL (LOWER) (NOT AVAILABLE)

52403-HB7-003

Unavailable

4

DAMPER, RR. (SHOWA) (NOT AVAILABLE)

52410-HB7-003

Unavailable

6

SEAT, SPRING

52422-HB7-003

Unavailable

8

STOPPER, SPRING

52425-HB7-003

Unavailable

9

METAL, BUSH

52452-HA5-671

Unavailable

10

RING C, STOPPER

52460-446-003

Unavailable

11

COLLAR, SHOCK ABSORBER (UPPER)

52486-KB7-003

$14.81

12

RUBBER, STOPPER (NOT AVAILABLE) | Use from Frame SN GK506686

52517-HB7-003

Unavailable

12

RUBBER, STOPPER | Use up to Frame SN GK506685

52517-VM0-771

Unavailable

14

BOLT, FLANGE (10X61)

90128-HB7-000

Unavailable

15

BOLT, SPECIAL FLANGE (10X58)

90153-965-000

$6.87

15

BOLT, SPECIAL FLANGE (10X58) This part replaces 90153-965-010.

90153-965-000

$6.87

16

NUT, U (10MM)

90304-GE8-003

$3.67

17

DUST SEAL

91351-HA5-671

$4.31

18

NUT, HEX. (12MM)

94002-12000-0S

$2.06
