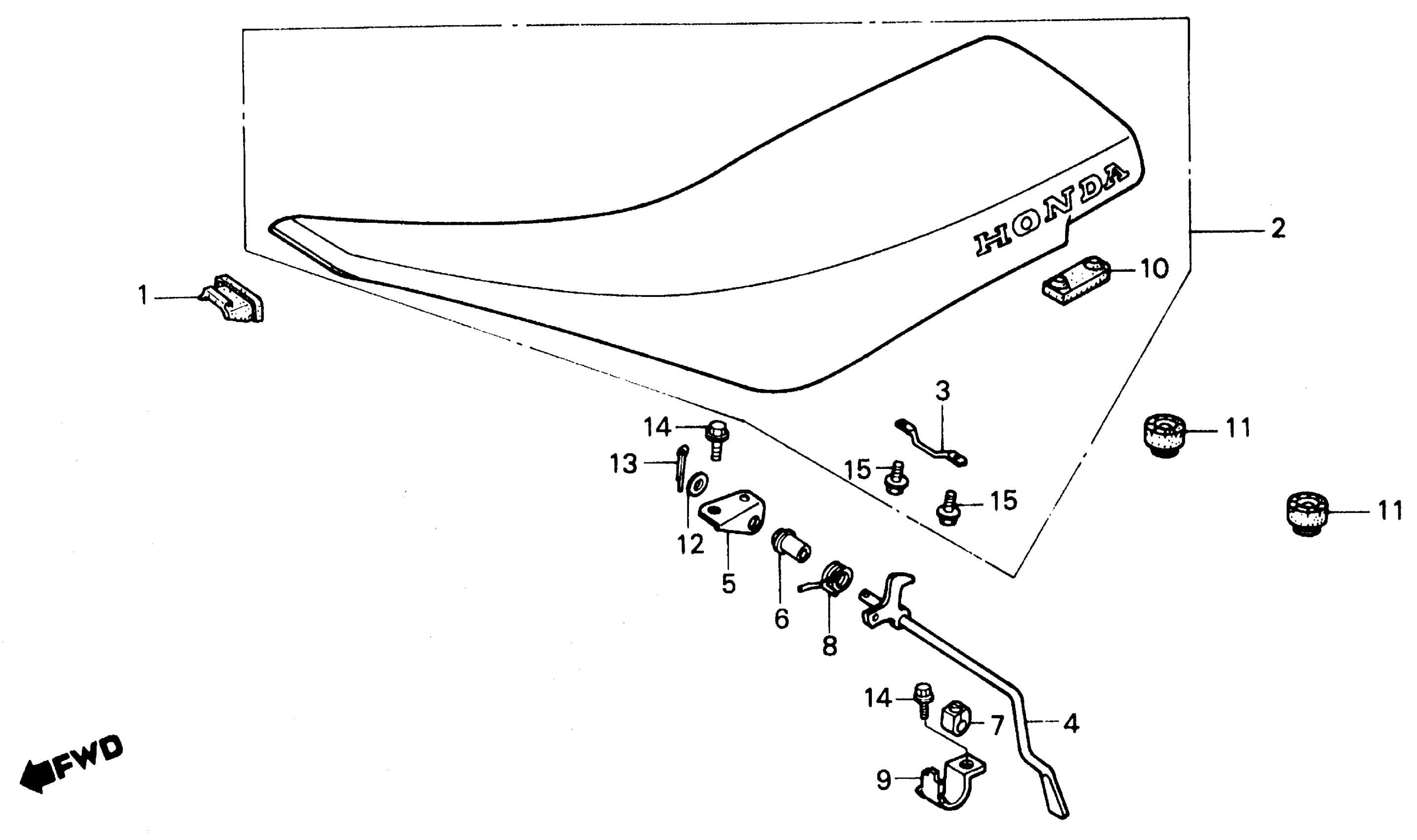

Honda TR200A (86) FATCAT, JPN, VIN# JH2TE110-GK500001 SEAT Diagram
#
Description
Price
1
GUIDE, SEAT HOOK
17514-HB7-000
Unavailable
2
SEAT COMP This part replaces 77100-HB7-000.
77100-HB7-P00
Unavailable
3
BAR, SEAT LOCK
77102-HB7-000
Unavailable
4
LEVER, SEAT LOCK This part replaces 77105-HB7-000.
77105-HB7-670
Unavailable
4
LEVER, SEAT LOCK
77105-HB7-670
Unavailable
5
STAY A, LOCK LEVER This part replaces 77106-HB7-000.
77106-HB7-670
Unavailable
5
STAY A, LOCK LEVER
77106-HB7-670
Unavailable
6
COLLAR, LOCK LEVER
77108-HB7-000
Unavailable
7
GUIDE, LOCK LEVER
77109-HB7-000
Unavailable
8
SPRING, SEAT LOCK
77110-HB7-000
Unavailable
9
STAY, LEVER GUIDE This part replaces 77111-HB7-000.
77111-HB7-670
Unavailable
9
STAY, LEVER GUIDE
77111-HB7-670
Unavailable
10
RUBBER B, SEAT SETTING
77206-KG1-000
Unavailable
11
RUBBER, SEAT SETTING
77207-HB7-000
Unavailable
