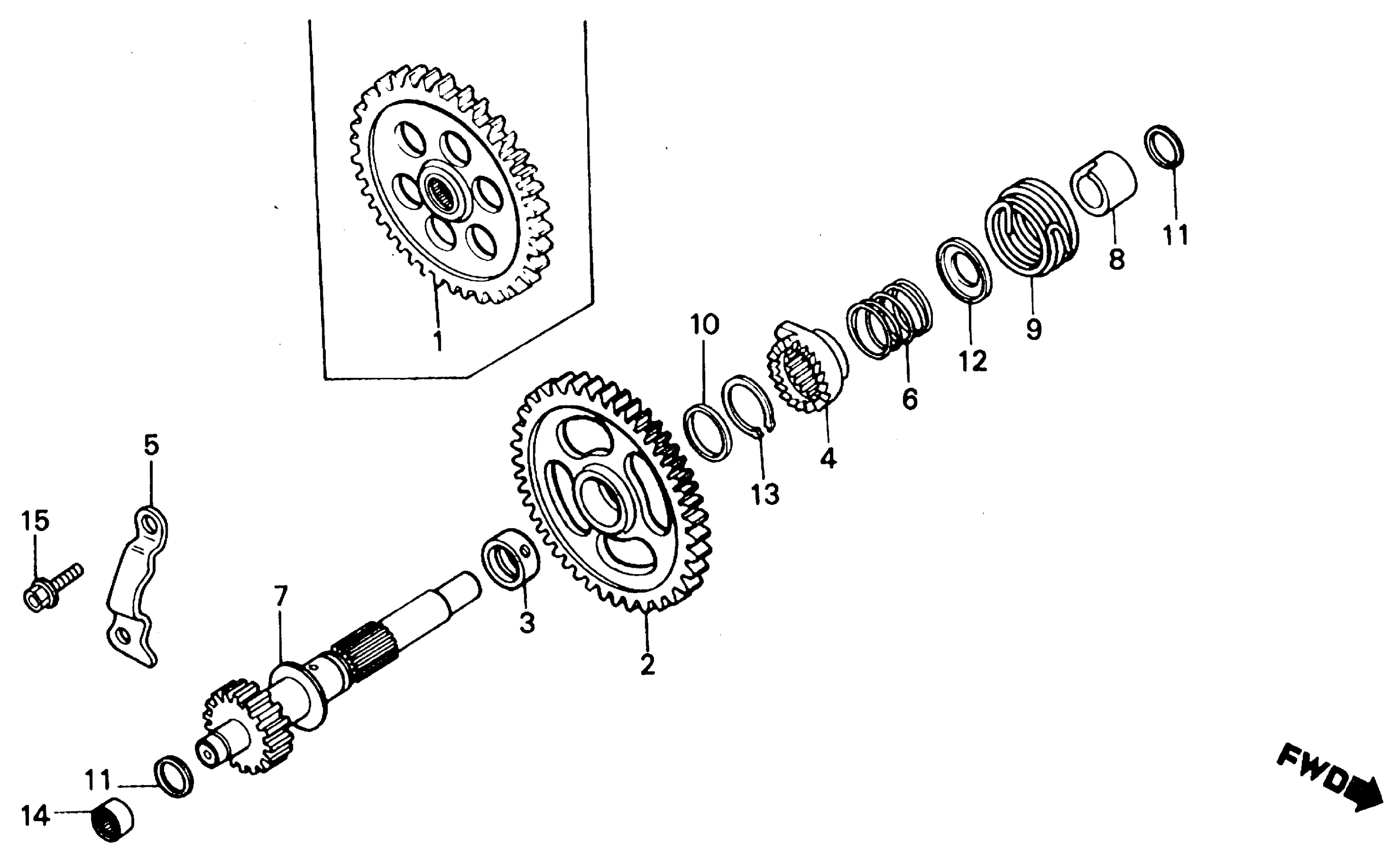

Honda TR200A (86) FATCAT, JPN, VIN# JH2TE110-GK500001 KICK STARTER SPINDLE Diagram

#

Description

Price

1

PINION, KICK STARTER (44T)

28211-HB5-000

Unavailable

4

RATCHET, KICK STARTER This part replaces 28213-HB5-000.

28213-HB5-010

Unavailable

4

RATCHET, KICK STARTER

28213-HB5-010

Unavailable

5

PLATE, KICK STOPPER

28215-HB5-000

Unavailable

6

SPRING, KICK STARTER RATCHET

28223-KK0-000

Unavailable

7

SHAFT, KICK STARTER (17T) This part replaces 28252-HB7-000.

28252-HB7-010

Unavailable

7

SHAFT, KICK STARTER (17T)

28252-HB7-010

Unavailable

8

COLLAR, KICK STARTER

28255-HB5-000

Unavailable

9

SPRING, KICK STARTER

28261-HB5-000

Unavailable

10

WASHER, THRUST (22MM)

90453-428-000

Unavailable

11

WASHER, THRUST (18X32)

90456-KA4-000

$4.26

12

WASHER, KICK RATCHET SPRING

90501-KF0-000

Unavailable

13

CIRCLIP (OUTER) (22MM)

90601-329-000

$2.47

14

BEARING, NEEDLE (18X24X16) This part replaces 91012-HB7-003.

91021-KE5-003

Unavailable

14

BEARING, NEEDLE (18X24X16)

91021-KE5-003

Unavailable

15

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

Unavailable

15

BOLT, HEX. (8X20)

92101-08020-0A

Unavailable
