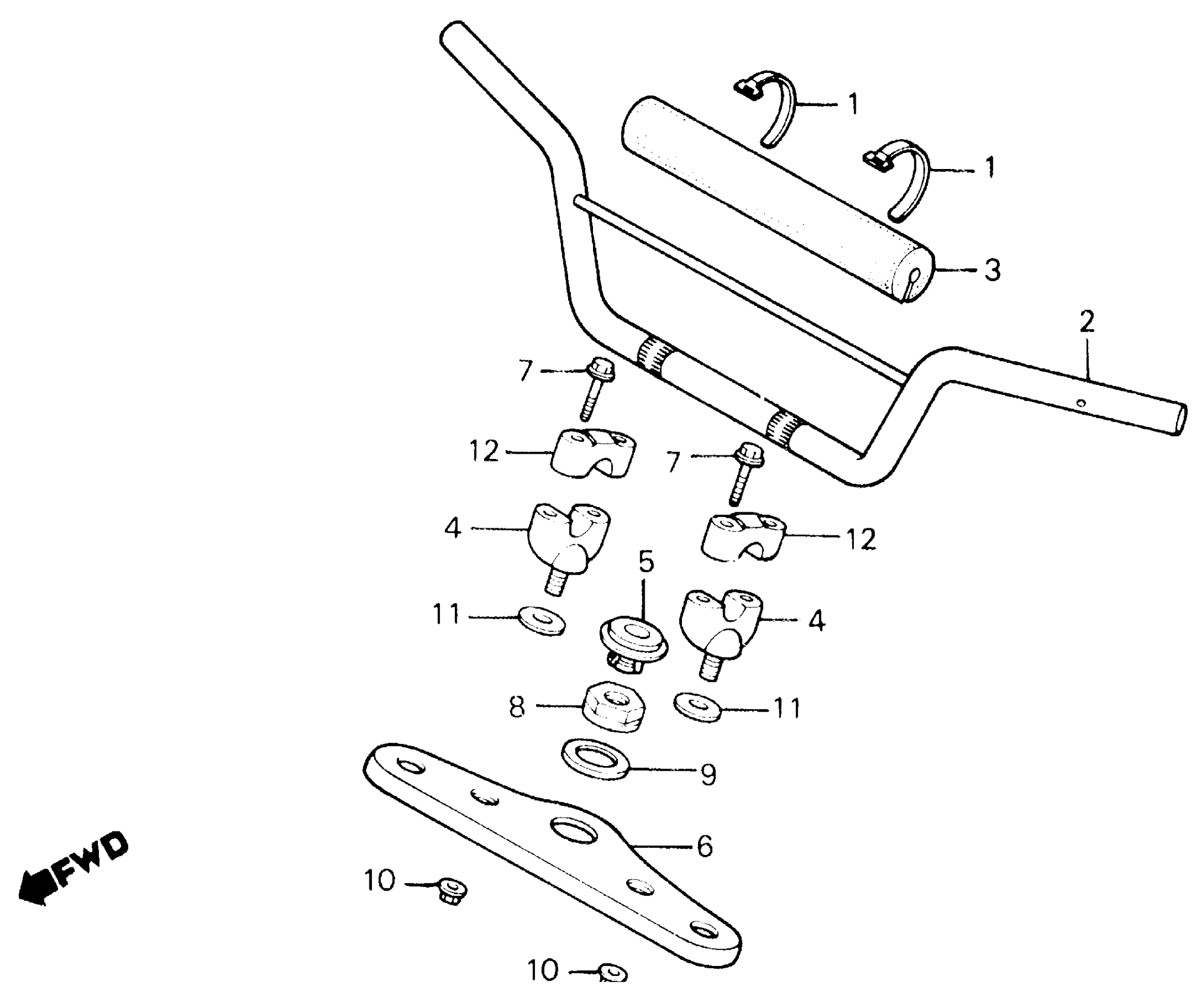

Honda TR200A (86) FATCAT, JPN, VIN# JH2TE110-GK500001 HANDLEBAR Diagram

#

Description
Price

1

BAND, WIRE

32161-367-690

$2.92

2

HANDLEBAR (NOT AVAILABLE)

53100-HB7-000

Unavailable

3

PAD, HANDLEBAR

53105-GC5-000

Unavailable

4

HOLDER, HANDLE (LOWER) This part replaces 53130-HB7-000.

53130-HB9-000

Unavailable

4

HOLDER, HANDLE (LOWER)

53130-HB9-000

Unavailable

5

CAP, STEERING STEM

53208-MC4-000

$5.33

6

BRIDGE, FORK TOP (NOT AVAILABLE)

53230-HB7-000

Unavailable

7

BOLT, FLANGE (8X36)

90111-362-000

$4.80

8

NUT, STEERING STEM This part replaces 90304-HA5-000.

90304-HA5-670

Unavailable

8

NUT, STEERING STEM

90304-HA5-670

Unavailable

9

WASHER, STEERING STEM

90482-HA0-000

Unavailable

10

NUT, FLANGE (10MM)

94050-10000

$1.59

11

WASHER, PLAIN (10MM)

94103-10800

$1.49

12

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$12.13
