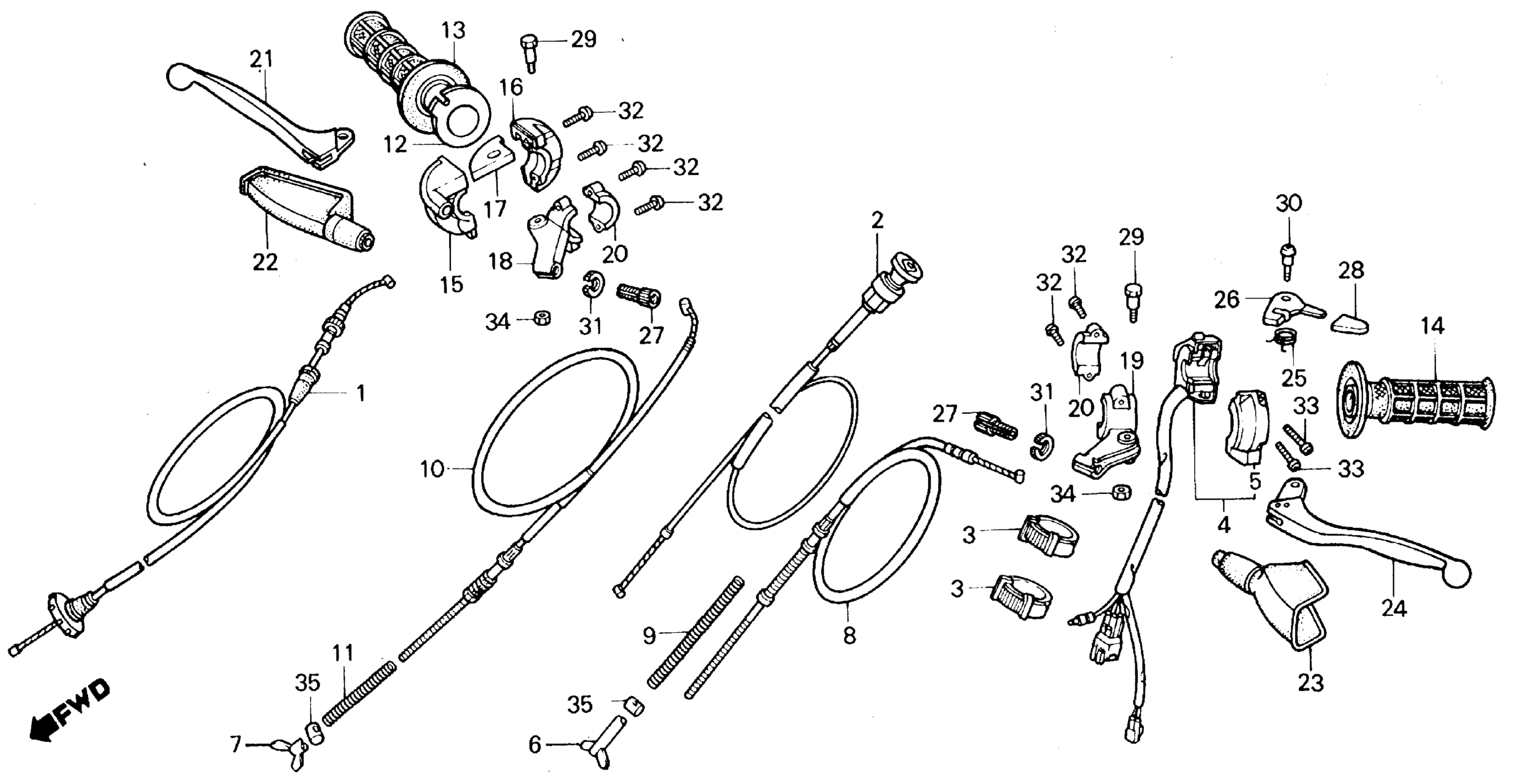

Honda TR200A (86) FATCAT, JPN, VIN# JH2TE110-GK500001 HANDLE SWITCH Diagram

#

Description
Price

1

CABLE SET, THROTTLE

17920-HB7-305

Unavailable

2

CABLE, CHOKE (NOT AVAILABLE)

17950-HB7-000

Unavailable

3

BAND B1, CABLE

32161-404-000

$2.23

4

SWITCH ASSY., LIGHTING This part replaces 35200-HB7-003.

35200-HB7-013

Unavailable

4

SWITCH ASSY., LIGHTING

35200-HB7-013

Unavailable

5

COVER, SWITCH (NOT AVAILABLE)

35201-VM6-681

Unavailable

6

NUT, BRAKE ADJUSTING

43459-HM5-A10

$9.78

6

NUT, BRAKE ADJUSTING This part replaces 43459-VM4-000.

43459-HM5-A10

$9.78

7

NUT, BRAKE ADJUST

43459-434-000

$15.27

8

CABLE, BRAKE This part replaces 43460-HB7-000.

43460-HB7-405

Unavailable

8

CABLE, BRAKE

43460-HB7-405

Unavailable

9

SPRING, RR. BRAKE ROD

43467-HA0-000

Unavailable

10

CABLE, FR. BRAKE

45450-HB7-000

Unavailable

11

SPRING, FR. BRAKE ROD (NOT AVAILABLE)

45455-HA6-000

Unavailable

12

PIPE, THROTTLE GRIP This part replaces 53141-437-000.

53141-437-010

Unavailable

12

PIPE, THROTTLE GRIP

53141-437-010

Unavailable

13

GRIP, R. HANDLE This part replaces 53165-MK5-000.

53165-MGW-305

$9.36

13

GRIP, R. HANDLE This part replaces 53165-MK5-010.

53165-MGW-305

$9.36

14

GRIP, L. HANDLE (COO) This part replaces 53166-MK5-000.

53166-MGW-305

$10.37

14

GRIP, L. HANDLE (COO) This part replaces 53166-MK5-010.

53166-MGW-305

$10.37

15

HOUSING, THROTTLE (UPPER) This part replaces 53167-KA2-000.

53167-KA2-010

$20.89

15

HOUSING, THROTTLE (UPPER)

53167-KA2-010

$20.89

16

HOUSING, THROTTLE (LOWER)

53168-HB7-000

Unavailable

17

SLIDER, THROTTLE

53169-HB7-010

$12.88

18

BRACKET, R. HANDLEBAR

53171-429-770

Unavailable

19

BRACKET, L. HANDLEBAR

53172-HB7-000

Unavailable

20

HOLDER, LEVER BRACKET

53173-376-000

$10.95

21

LEVER, R. HANDLEBAR This part replaces 53175-GM2-000.

53175-GM2-010

Unavailable

21

LEVER, R. HANDLEBAR

53175-GM2-010

Unavailable

22

COVER, R. HANDLEBAR This part replaces 53176-430-010.

53176-428-010

$10.00

23

COVER, L. HANDLEBAR (NOT AVAILABLE)

53177-HB7-000

Unavailable

24

LEVER, L. HANDLEBAR This part replaces 53178-HB7-000.

53178-HB7-670

Unavailable

24

LEVER, L. HANDLEBAR

53178-HB7-670

Unavailable

25

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

26

LEVER, LOCK (NOT AVAILABLE)

53192-HB7-000

Unavailable

27

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

28

CAP, LEVER (NOT AVAILABLE) This part replaces 53193-HB7-000.

53193-HB7-010

Unavailable

29

BOLT, HANDLEBAR LEVER PIVOT

90113-429-770

$5.94

30

SCREW, PARKING BRAKE LEVER PIVOT

90115-961-000

$2.92

31

NUT, FIXING

90321-315-670

$7.31

32

SCREW, PAN (5X18)

93500-05018-0G

$1.49

33

SCREW, PAN (5X25)

93500-05025-0G

$1.49

34

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

34

NUT, HEX. (6MM)

94001-06200-0S

$1.49

35

JOINT, BRAKE ARM

95015-32001

$1.49
